Recommended Enclosures
Please Note: Our suggested box volumes are given as internal air requirements
Sealed Enclosure
Box Volume .5 cu. ft.
* Box is given as internal air volume including driver displacement.
Ported Enclosure
Box Volume .8 cu. ft.
Box Tuning 38Hz
Port Diameter 2.5 in.
Port Length 9 in.
* Box is given as internal air volume including port and driver displacement.
SPW8.3D2 / SPW8.3D4
8.31 in. / 21.10 cm
7.18 in. / 18.23 cm
SPW8.3D2 / SPW8.3D4

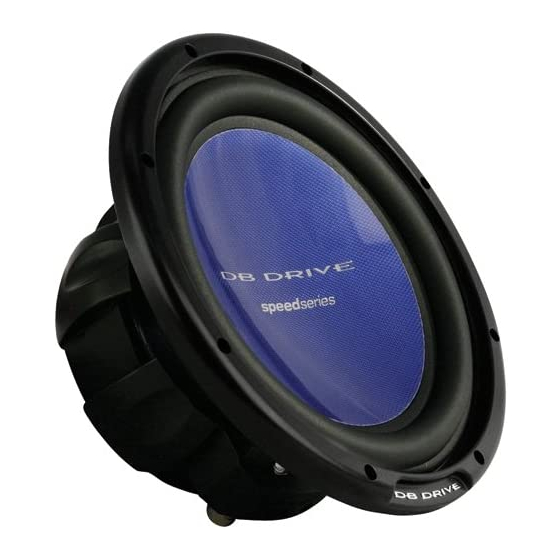

8" Subwoofer
Installation Instructions / Owner's Manual
DB Research L.L.P.
302 Hanmore Industrial Parkway // Harlingen, TX 78550
ph: 877.787.0101 // fx: 956.421.4513 // www.dbdrive.net
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DB Drive SPW8.3D2
Summary of Contents for DB Drive SPW8.3D2
-
Page 1: Recommended Enclosures
Box Tuning 38Hz Port Diameter 2.5 in. Port Length 9 in. * Box is given as internal air volume including port and driver displacement. SPW8.3D2 / SPW8.3D4 8.31 in. / 21.10 cm 7.18 in. / 18.23 cm SPW8.3D2 / SPW8.3D4 8”... - Page 2 NTRODUCTION Congratulations on your purchase of a DB Drive state-of-the-art subwoofer compo- nent. Your selection of a DB Drive car audio product indicates a true appreciation of fine musical reproduction. Whether adding to an existing system or including a DB Drive subwoofer in a new system, you are certain to notice immediate performance benefits.
