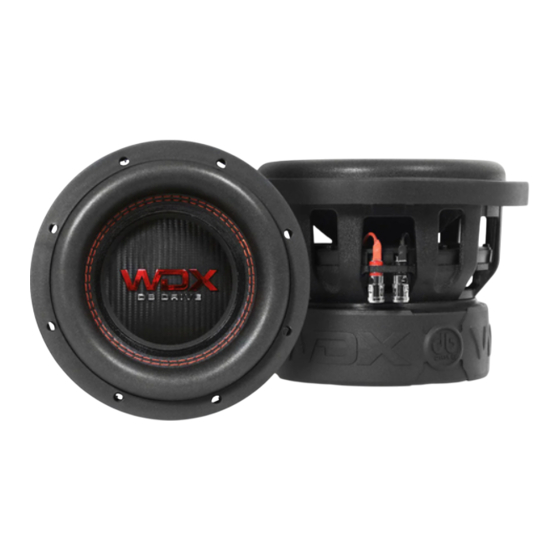

- Page 1 WDX6.5G1.4 W D X 8 G 1 . 4 WDX10G1.4 WDX12G1.4 WDX15G1.4 USER MANUAL Installation Instructions | Owners Manual Due to continuous improvement of the product, specifications are subject to change without notice.
- Page 2 Congratulations on your purchase of a DB Drive state-of-the-art subwoofer. Your selection of a DB Drive car audio product indicates a true appreciation of fine musical reproduction. Whether adding to an existing system or including your DB Drive subwoofer in a new system, you are certain to notice immediate performance benefits.
-
Page 3: Product Features
PRODUCT FEATURES • Non-Pressed paper cone • Rubber gasket trim ring • Double stitched foam surround • Large gauge compression terminals • Dual poly-cotton dampeners • Protective magnet cover • Die-cast aluminum vented basket WDX6.5G1.4 WDX8G1.4 WDX10G1.4 WDX12G1.4 WDX15G1.4 6.5” ( ) Woofer Structure: 8”... -
Page 4: Product Dimensions
PRODUCT DIMENSIONS Frame Diameter Mounting Depth Cutout Diameter WDX6.5G1.4 WDX8G1.4 WDX10G1.4 WDX12G1.4 WDX15G1.4 7.14 in. 8.76 in. 10.86 in. 12.74 in. 15.71 in. Frame Diameter: 181.35 mm 222.50 mm 276 mm 323.59 mm 400 mm 4.60 in. 6.15 in. 6.84 in. 7.94 in. - Page 5 RECOMMENDED ENCLOSURES Sealed Vented ENCLOSURES: WDX6.5G1.4 WDX8G1.4 WDX10G1.4 WDX12G1.4 WDX15G1.4 Woofer Cut-out: 5.94 in. 7.20 in. 9.15 in. 11.07 in. 13.77 in. (151 mm) (182.88 mm) (232.41 mm) (281.17 mm) (349.76 mm) Mounting Depth: 4.60 in. 6.15 in. 6.84 in. 7.94 in.
- Page 6 DVC WIRING CONFIGURATIONS You can change the wiring configuration of your speakers ( Series, Parallel and Series / Parallel ) to match the impedance loads that maximizes the power output of you amplifier. Wiring the same woofer or multiple woofers in these three different wiring configurations will result in different impedance loads. Series: Is the method of wiring of alternate positive with negative terminals ( string method ) ( Illustration below ).
- Page 7 NOTES...
-
Page 8: Limited Warranty
(1) year. This warranty applies to the original purchase only. DB Drive™ will either repair or replace (as its option) any unit that has been found to be defective and under warranty provided the defect occurs within the one (1) year warranty period.
