SPW12D4 • SPW10D4
USER MANUAL
Installation Instructions | Owners Manual
Due to continuous improvement of the product, specifications are subject to change without notice.
DB Research L.L.P.
302 Hanmore Industrial Parkway Harlingen, TX 78550
Phone (877) 787-0101 : Fax (956) 421-4513 : support@dbdrive.net : www.DBDrive.net
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DB Drive Speed SPW12D4
Summary of Contents for DB Drive Speed SPW12D4

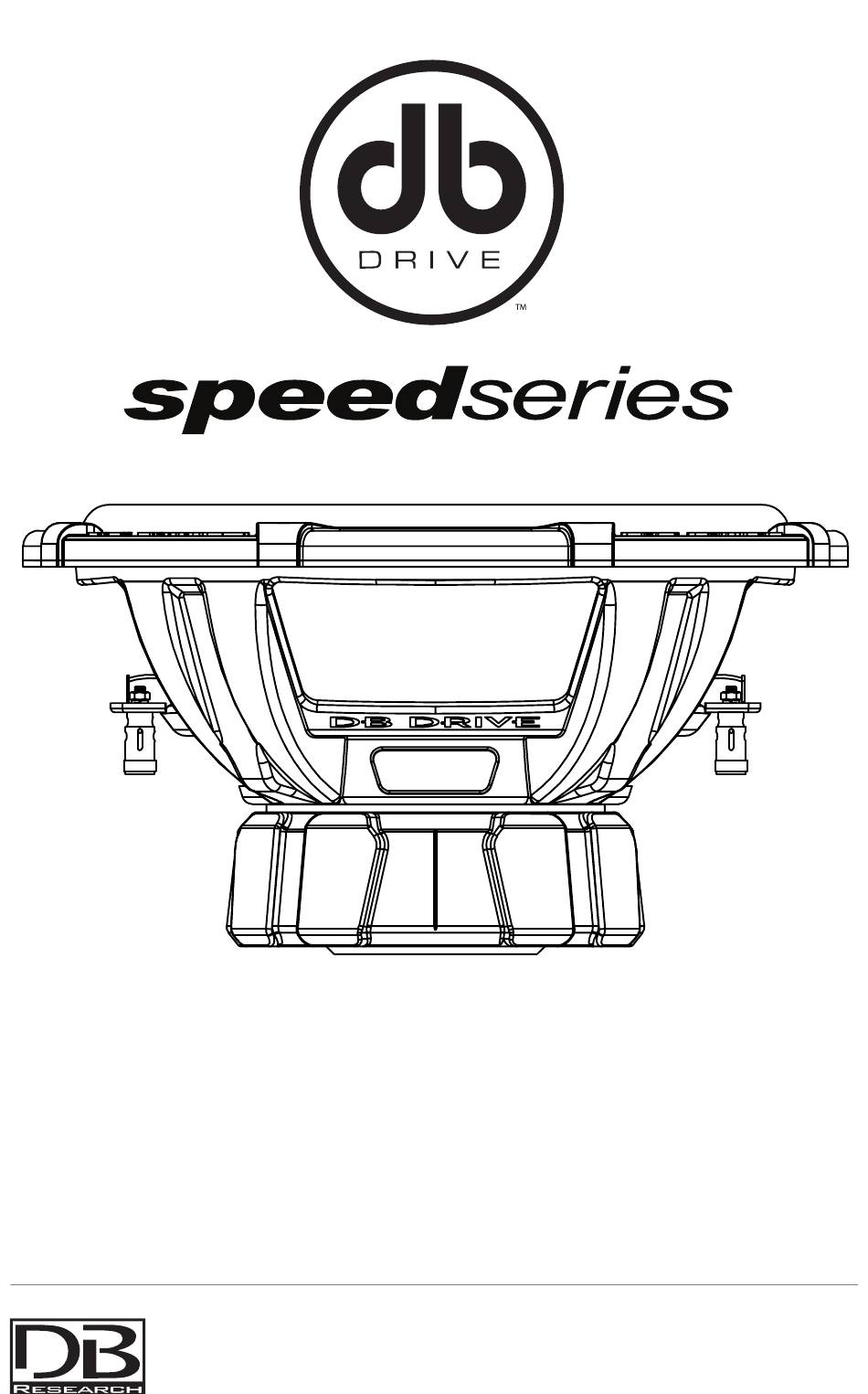

- Page 1 SPW12D4 • SPW10D4 USER MANUAL Installation Instructions | Owners Manual Due to continuous improvement of the product, specifications are subject to change without notice. DB Research L.L.P. 302 Hanmore Industrial Parkway Harlingen, TX 78550 Phone (877) 787-0101 : Fax (956) 421-4513 : support@dbdrive.net : www.DBDrive.net...
- Page 2 Congratulations on your purchase of a DB Drive state-of-the-art subwoofer. Your selection of a DB Drive car audio product indicates a true appreciation of fine musical reproduction. Whether adding to an existing system or including your DB Drive subwoofer in a new system, you are certain to notice immediate performance benefits.
- Page 3 PRODUCT SPECIFICATIONS TS SPECS SPW12D4 SPW10D4 FS ..........23.0 Hz ......28.8 Hz Res ..........52.8 Ω ......56.3 Ω Re ..........6.4Ω ......6.4Ω Qms ..........5.79 ......5.84 Qes ..........0.46 ......0.46 Qts ..........0.43 ......0.42 Rms .........4.2kg/s ....... 4.4 kg/s Cms ........0.28mm/N ....0.22 mm/N Mms........168.2 gr ......
- Page 4 RECOMMENDED ENCLOSURES Sealed Ported SPW12D4 12.50in / 317mm Woofer Cut-out: 10.89 in. (276 mm.) Mounting Depth: 5.9 in. (150 mm.) Recommended Sealed Box: 1.2 cu ft. Recommended Vented Box: 1.6 cu ft. • Vent Area: 3” round vent or 7.4 square inches •...
