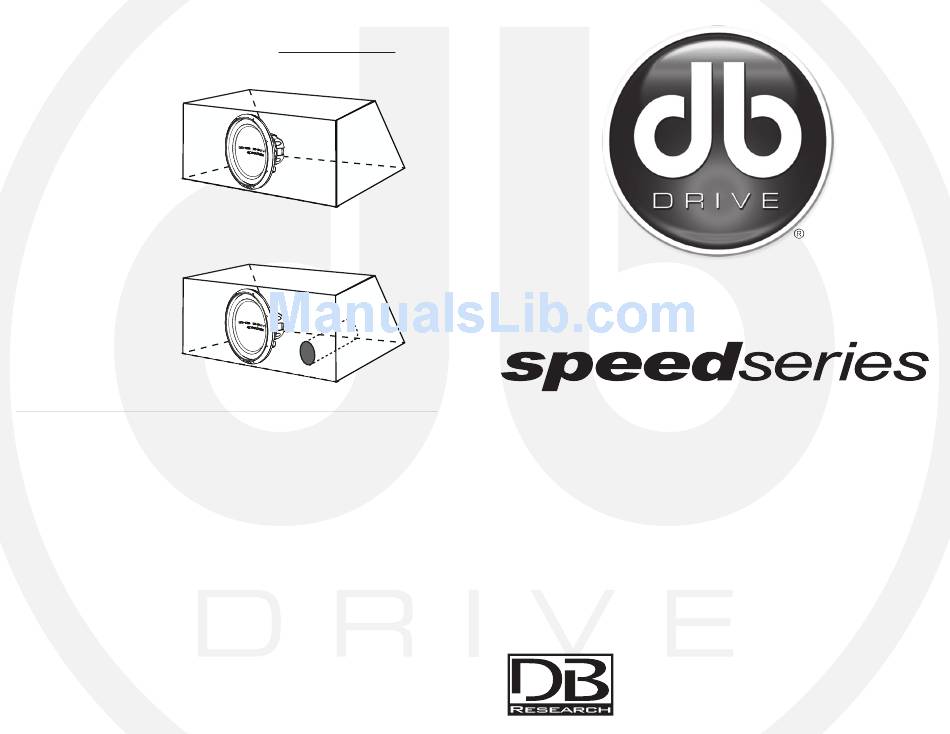

Recommended Enclosures
Please Note: Our suggested box volumes are given as internal air requirements
Sealed Enclosure
Box Volume .75 cu.ft
* Box is given as internal air volume including driver displacement.
Ported Enclosure
Box Volume 1.27cu.ft.
Box Tuning 38Hz
Port Diameter 3in.
Port Length 9in.
* Box is given as internal air volume including port and driver displacement.
SW10D2 / SW10D4
Chasis Width 10.12in. / 25.70 cm
Mounting Depth 4.62in. / 11.73 cm
Overall Height 5.06in. / 12.85 cm
Cutout Diameter 8.93in. / 22.63 cm
SW10D2 / SW10D4

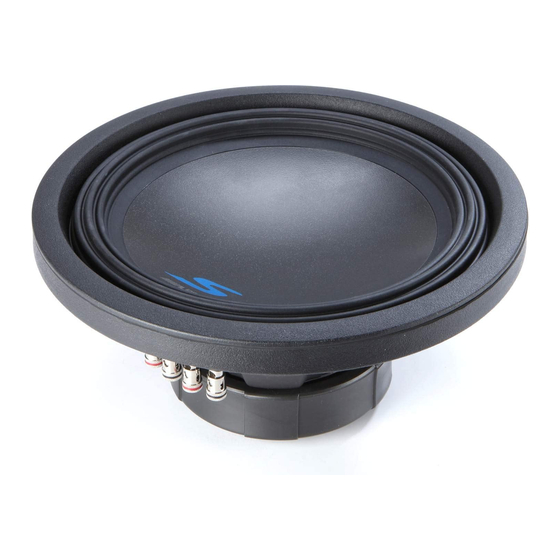

10" Subwoofer
Installation Instructions / Owner's Manual
DB Research L.L.P.
302 Hanmore Industrial Parkway // Harlingen, TX 78550
ph: 877.787.0101 // fx: 956.421.4513 // www.dbdrive.net
®
Advertisement
Related Manuals for DB Drive SW10D2
Summary of Contents for DB Drive SW10D2
-
Page 1: Recommended Enclosures
Port Diameter 3in. Port Length 9in. * Box is given as internal air volume including port and driver displacement. SW10D2 / SW10D4 Chasis Width 10.12in. / 25.70 cm Mounting Depth 4.62in. / 11.73 cm Overall Height 5.06in. / 12.85 cm Cutout Diameter 8.93in. - Page 2 NTRODUCTION Congratulations on your purchase of a DB Drive state-of-the-art subwoofer compo- nent. Your selection of a DB Drive car audio product indicates a true appreciation of fine musical reproduction. Whether adding to an existing system or including a DB Drive subwoofer in a new system, you are certain to notice immediate performance benefits.
