8. Switch on the 230V AC supply. The green AUX and yellow LB LEDs on the power supply PCB should be
ON while charging the battery.
Output voltage of the PSU, without load U = 13,8V DC.
During battery charge, voltage can amount to U = 11V÷13,8V DC
9. With the STOP button, initiate or finish a dynamic battery test.
Deactivating the test turns out the PSU failure indication at the PSU FLT, output, but it does not affect the
protection system against complete battery discharge.
10. Run the PSU test: check the LED and acoustic indication (Tab. 7), technical output; through:
- cutting off the 230V AC current: LED and acoustic indications – immediately; the EPS FLT technical output
- after some time, determined by T
- battery disconnection: LED indication, acoustic indication and the PSU FLT – technical output – after a
battery test have been completed (~10min).
11. Use the jumper to enable or disable acoustic indication.
12. Once the tests and operation control have been completed, the enclosure can be locked.
AWZ110

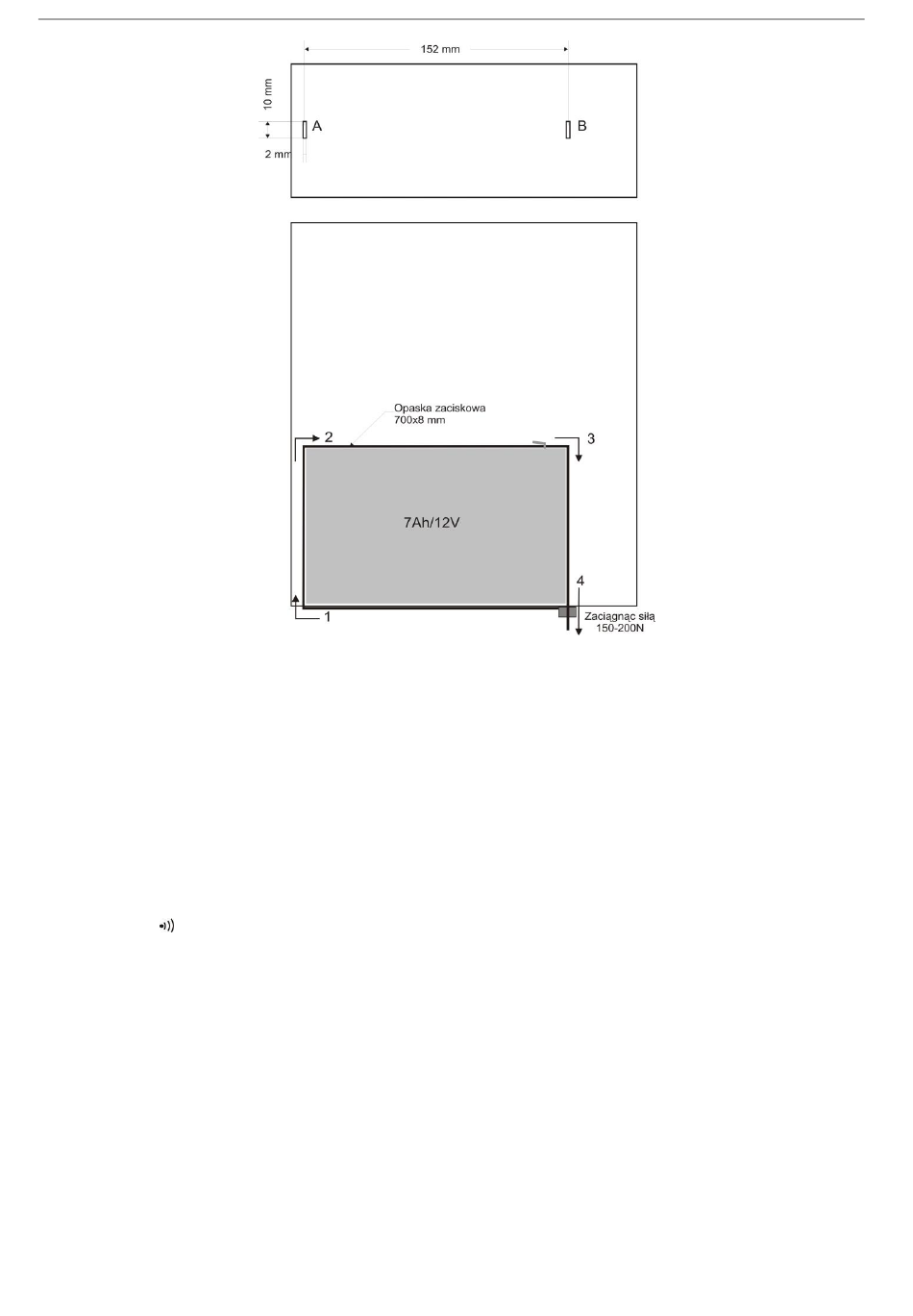

Fig.4. Battery mounting procedure.
pins.
AC
8
GREY POWER plus
