Depending on a required protection level of the alarm system in the installation place, the PSU efficiency
and the battery charging current should be set as follows:
* Grade 1, 2 - standby time 12h
** General use – if the PSU is not mounted in an installation complaint with the EN-50131 standard, the
acceptable current efficiency amounts to:
Total current of the receivers + battery charging current is max. 1A.
In case of power decay, a battery back-up is activated immediately. The PSU is housed in a metal
enclosure with battery space for a 7Ah/12V battery. It is fitted with micro switches indicating unwanted door
opening (front panel).

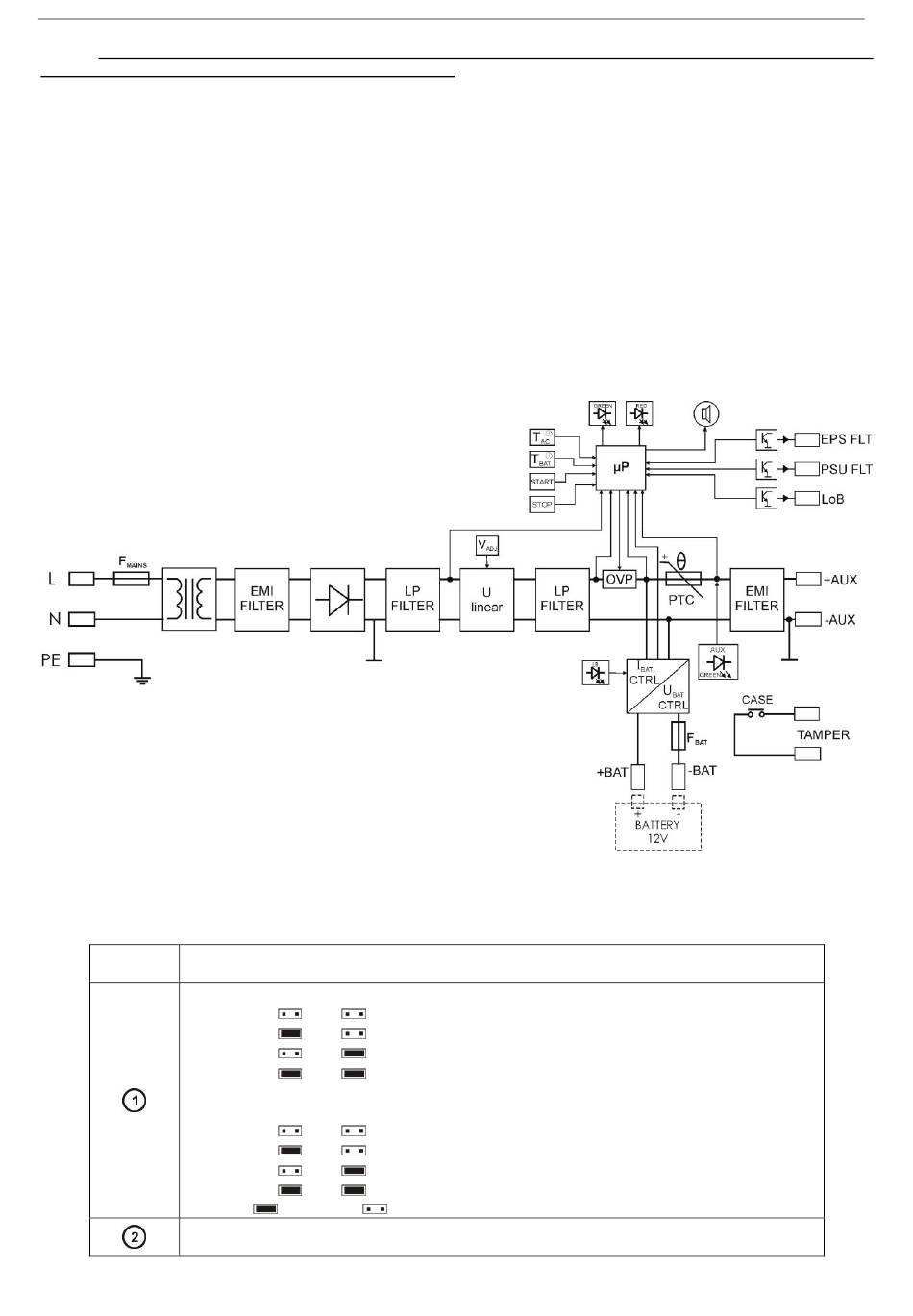

1.2. Block diagram. (Fig. 1).

1.3. Description of PSU components and connectors.

Table 1. Elements of the PSU pcb (see Fig 2).
Element
no.
T ; pins J1, J2 - configuration of time lag for AC failure indication
AC
T
BAT
Caption:
STOP button (disconnects the power supply from the battery or enables / disables the
battery test)
Output current 0,58A + battery charging current 0,4A
1. Output current 1A (without a battery)
2. Output current 0,6A + 0,4A battery charging current
Fig. 1. Block diagram of the PSU.

J1= , J2= time lag T= 0s

J1= , J2= time lag T= 5min

J1= , J2= time lag T= 1h

J1= , J2= time lag T= 6h
; pins J1, J2 - time configuration of discharged battery disconnection

J1= , J2= time lag T= 20s

J1= , J2= time lag T= 15min

J1= , J2= time lag T= 1h

J1= , J2= no battery disconnection =no UVP battery protection
jumper on,
AWZ110
Description
jumper off
3
