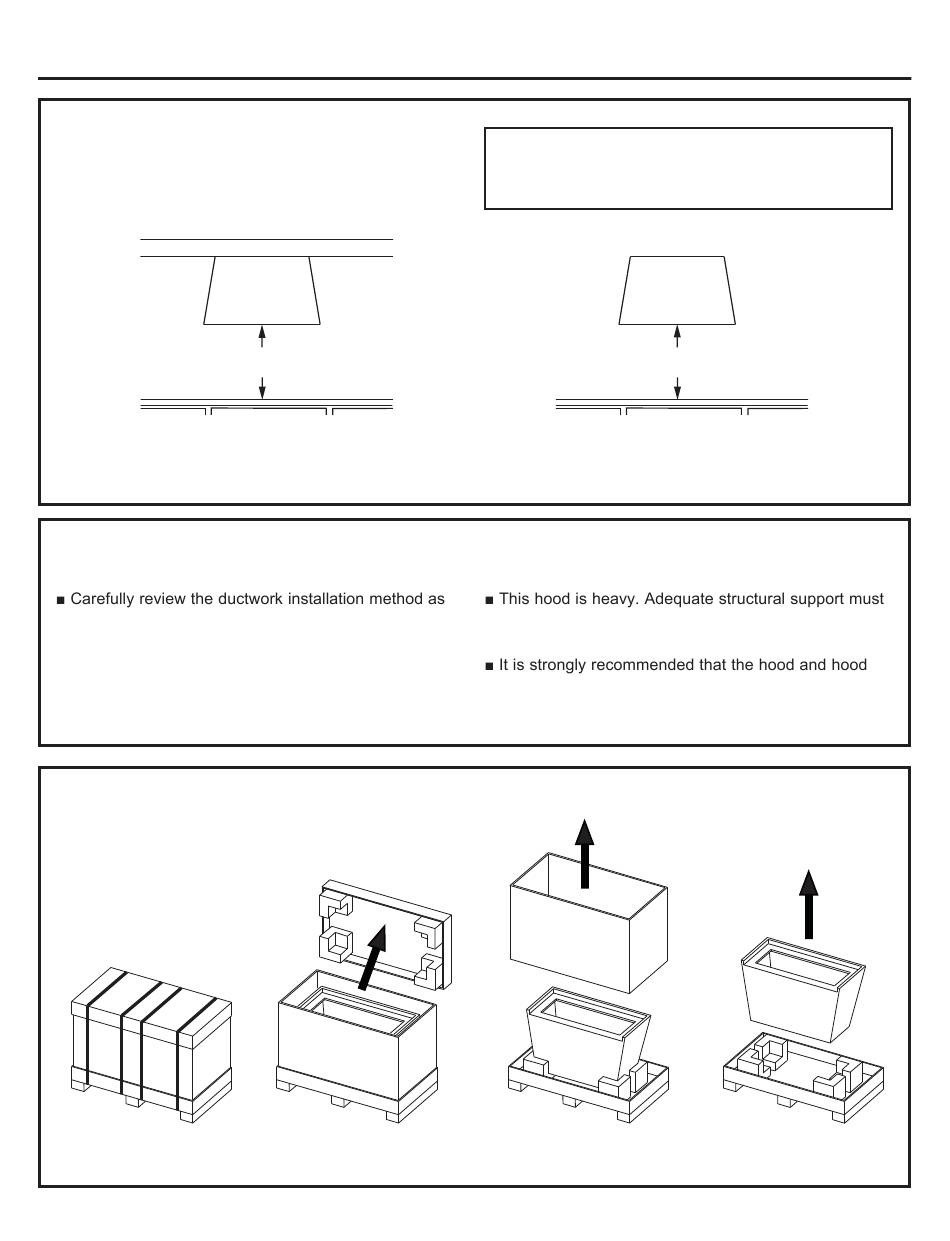

INSTALLATION CLEARANCES

This hood is designed to be installed onto a wall.
Install this hood 30" minimum to 36" maximum above the
cooking surface.
Top Vent Installation
SOFFIT OR UPPER CABINETS
In this installation, the ductwork running from the top
of the hood will be concealed in the soffit or upper
cabinetry.

ADVANCED PLANNING

Ductwork Planning
described later in this instruction as well as the hood
insert installation instructions.

UNBOXING

Cut Straps
4
Installation Instructions
30" MIN.
36" MAX.
Remove Top
NOTE: Clearances may vary due to type of
cooking product and local codes. Check with local
inspectors to be sure standard is applicable.
Back Vent Installation
30" MIN.
36" MAX.
In this installation, the ductwork running from the back
of the hood goes directly into the wall.
Wall Framing for Adequate Support
be provided. Hood must be secured to vertical studs in
the wall.
insert be on site before final framing and wall finishing.
This will also help to accurately locate the ductwork
and electrical service.
Remove Sleeve
Remove Hood
