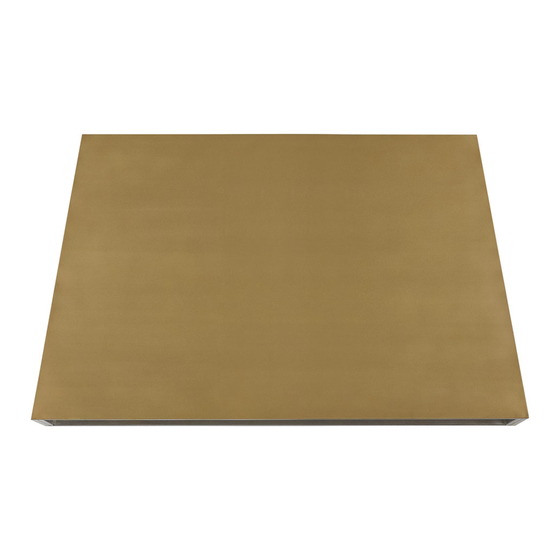

- Page 1 INSTALLATION INSTRUCTIONS 48”Custom Brass Hood ZVC48DTB1 48” Custom Stainless Steel Hood ZVC48STSS MONOGRAM.COM...
-
Page 2: Safety Information
Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. For Monogram local service in your area, 800.444.1845. For Monogram Service in Canada, call 800.561.3344. 800.626.2002. -
Page 3: Table Of Contents
Installation Instructions CONTENTS Safety Information ............2 ............4 ............3 Unboxing ............... 4 ..........3 Step 1, Determine Ductwork and Wiring Locations ..5 Tools and Materials Required ........3 Step 2, Install Hood onto Wall ........6 Installation Clearances ..........4 Step 3, Install Hood Insert into Hood ...... -
Page 4: Installation Clearances
Installation Instructions INSTALLATION CLEARANCES NOTE: Clearances may vary due to type of This hood is designed to be installed onto a wall. cooking product and local codes. Check with local Install this hood 30" minimum to 36" maximum above the inspectors to be sure standard is applicable. -
Page 5: Step 1, Determine Ductwork And Wiring Locations
Installation Instructions STEP 1 DETERMINE HOOD AND DUCTWORK LOCATIONS MARK LOCATION OF WOOD SUPPORT Top of Hood Draw the line to ceiling height. to the cooking surface, 30” min. to 36” max. 30” indicating the bottom of the hood. Wood Support 16”... -
Page 6: Step 2, Install Hood Onto Wall
Installation Preparation STEP 2 INSTALL HOOD TO WALL Mount Wood Support to Wall IMPORTANT: Framing must be capable of supporting up to 150 lbs. below the 16” marked line. Use the center hole in the wood support as guidance. mounting screws engage the keyhole slots in the back of the hood. -
Page 7: Step 3, Install Hood Insert Into Hood
Installation Preparation STEP 3 PREPARE CUSTOM HOOD INSERT (UVC9420) FOR INSTALLATION canopy. need to refer to these instructions as some of the with dimensions are different. ring terminal House WARNING with Hood During Step 2 (Connect Electrical Cables),install the provided ground wire included in this product’s hardware bag. - Page 8 NOTE: While performing installations described in this book, safety glasses or goggles should be worn. NOTE: Product improvement is a continuing endeavor at Monogram. Therefore, materials, appearance and specifications are subject to change without notice. 31-2001216 Rev. 0 05-23 GEA...
