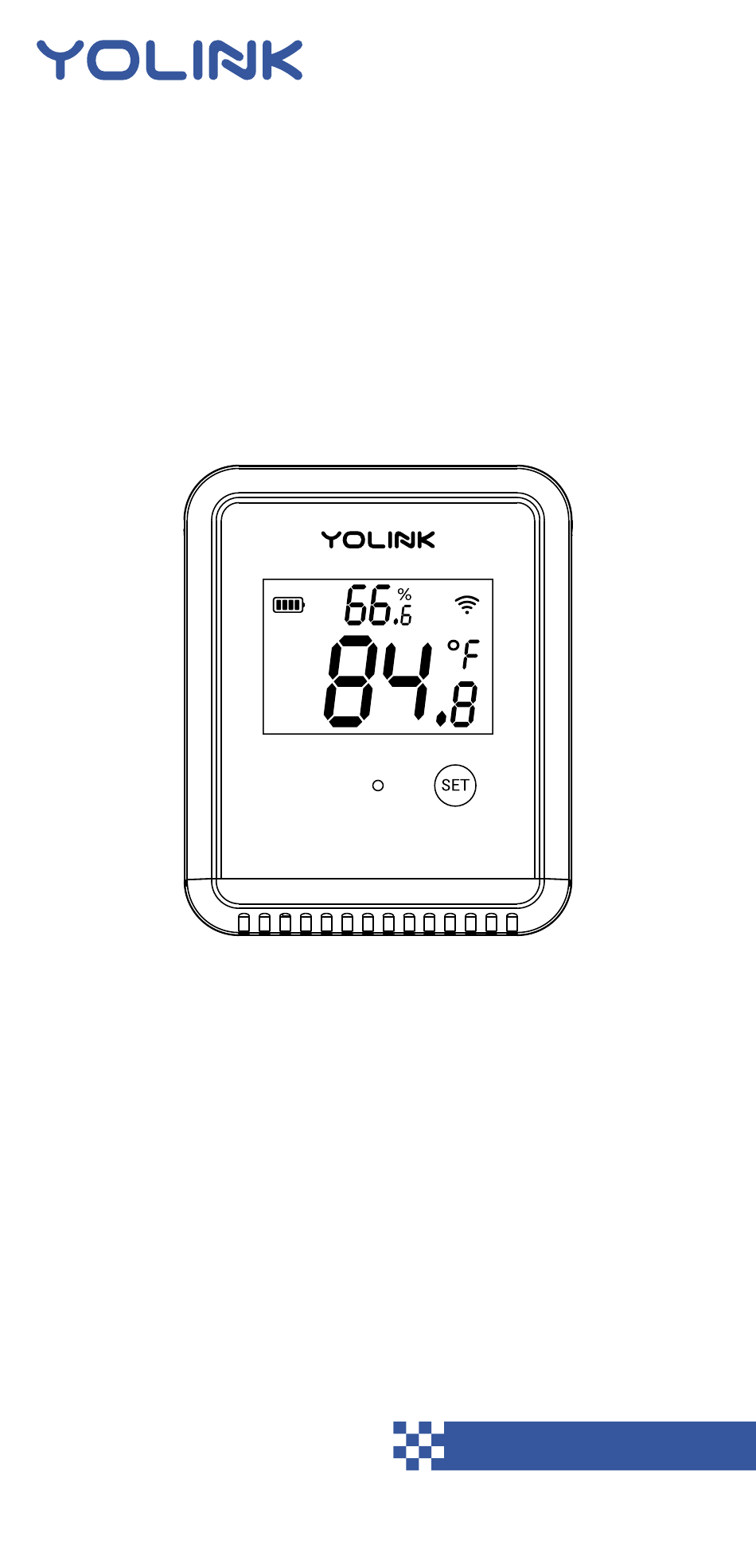

- Page 1 Outdoor Temperature & Humidity Sensor YS8015-UC Installation & User Guide Revision Jan. 26, 2024...
-
Page 2: Table Of Contents
Contents . Welcome! . Before You Begin . In the Box . Required Items . Get to Know Your Sensor . Power Up . Install the App . Add Your Sensor to the App . Installation . App Functions: Device Screen . -
Page 3: Welcome
Welcome Thank you for purchasing YoLink products! We appreciate you trusting YoLink for your smart home & automation needs. Your 100% satisfaction is our goal. If you experience any problems with your installation, with our products or if you have any questions that this manual does not answer, please contact us right away. -
Page 4: Before You Begin
Before You Begin Visit our X3 Outdoor Temperature & Humidity Sensor support page on our website, for the latest installation guides, additional resources, information and videos by visiting: https://www.yosmart.com/support/YS8015-UC Or by scanning the QR code: Download the most current version of the user... - Page 5 Before You Begin, Continued Your X3 Outdoor Temperature & Humidity Sensor connects to the internet via a YoLink hub, and it does not connect directly to your WiFi or local network. In order for remote access to the device from the app, and for full functionality, a hub is required.
-
Page 6: In The Box
In the Box X3 Outdoor Temperature & 2 x AA Lithium Batteries Humidity Sensor (Pre-installed) Metal Plate Quick Start Guide Required Items You may require these items: Small and/or Medium Phillips Hammer Screwdriver Nail or Self Tapping Screws Double-sided Mounting Tape or... -
Page 7: Get To Know Your Sensor
Get to Know Your Sensor Battery Level Humidity Signal Strength C/F (Centigrade / Fahrenheit) Temperature Set Button Status LED Battery compartment cover Battery access & mounting cover LED Behaviors Blinking Red Once, then Slow Blinking Green Green Once Updating Device Start-Up Blinking Red Once Blinking Red And Green Device Alerts... -
Page 8: Power Up
Power Up Before you can use your X3 Outdoor Temperature & Humidity Sensor, it must be turned on. (Batteries have been pre-installed.) Press the SET button briefly, until the LED flashes red then green (which indicates it has turned on and connected to a hub and the cloud). -
Page 9: Install The App
Install the App If you are new to YoLink, please install the app on your phone or tablet, if you have not already. Otherwise, please proceed to the next section. Scan the appropriate QR code below or find the “YoLink app” on the appropriate app store. -
Page 10: Add Your Sensor To The App
Add Your Sensor to the App 1. Tap Add Device (if shown) or tap the scanner icon: Scanner icon 2. Approve access to your phone’s camera, if requested. A viewfinder will be shown on the app. 3. Hold the phone over the QR code so that the code appears in the viewfinder. - Page 11 Add Your Sensor to the App, Continued 4. You can change the device name and assign it to a room later. Tap Bind device. 5. If successful, the screen will appear as shown. Tap Done.
-
Page 12: Installation
Installation Location & Mounting Considerations The X3 Outdoor Temperature & Humidity Sensor is designed to be easy to install, and portable, but before installing the sensor, the following items should be considered: While the X3 Outdoor Temperature & Humidity Sensor is designed for outdoor... - Page 13 Installation, Continued The X3 Outdoor Temperature & Humidity Sensor can be installed or mounted in at least one of four ways: 1. Lay the sensor flat on any stable surface, or placed within an enclosure. 2. Hang the sensor from a nail, screw, or hook,...
- Page 14 Installation, Continued Wall-mounting method 1. The sensor has a standard "keyhole" notch on the rear, at the top. This allows for hanging the sensor from a nail or screw. Additionally, there are two more mounting holes at the bottom of the sensor.
- Page 15 Installation, Continued 2. If desired, mark or otherwise identify the exact position of your sensor on the wall, including one or all of the mounting points (keyhole at top, two screw holes at bottom). Use a level tool to ensure your sensor will be level, if desired. 3.
- Page 16 Installation, Continued 5. If not already performed in a previous step, verify the sensor is level prior to pre-drilling or inserting holes for the lower mounting points. Insert one or both screws through the lower mounting holes, tightening them and securing the sensor to the wall.
- Page 17 Installation, Continued *Suitable surfaces are metallic surfaces responsive to magnets, that allow for a good bond with the sensor's built-in magnet. Uneven, irregular, textured, grooved, etcetera, surfaces may not be suitable. Surfaces subject to vibration and movement are not likely to be acceptable.
-
Page 18: App Functions: Device Screen
App Functions: Device Screen In the app, tap on your X3 Outdoor Temperature & Humidity Sensor icon. Your X3 Outdoor Temperature & Humidity Sensor main screen should be similar to the one shown below. Tap to Exit This Screen Device Name Tap for Contact &... -
Page 19: App Functions: Device Details Screen
App Functions: Device Details Screen Tap the three dots (in the upper right corner) to open the X3 Outdoor Temperature & Humidity Sensor Details screen. Your X3 Outdoor Temperature & Humidity Sensor screen should be similar to the one shown below. - Page 20 App Functions: Device Details Screen, Continued Model Number Device EUI Unique Identifier Number (Unique) Device Serial Number Signal Intensity (From YoLink Hub) Battery Battery level indicator. If red, batteries are low; replace batteries soon. Firmware Revision (Refer to page 38)
-
Page 21: App Functions: Alert Settings Screen
App Functions: Alert Settings Screen Alarm Strategy Tap to edit the sensor's Alarm Strategy Tap here to open the digital temperature alert settings Tap the slider control and adjust the high or low alert value. The "normal" range will be displayed in green text as a low alert value, to the high alert value. -
Page 22: App Functions: Chart Screen
App Functions: Chart Screen X3 Temperature Sen... Tap to Select Daily, Weekly, Monthly Data Tap to Select Time Range Tap to Export Data... -
Page 23: App Functions: Alarm Strategy Screen
App Functions: Alarm Strategy Screen You can set up notifications in Alarm Strategy settings, make sure you have enabled App, Email, SMS notification from the app->Menu->Settings->Account Settings->Advanced Settings, and verified your email address and added your phone number in the app. Strategy Name Tap to edit the name Related Devices... - Page 24 All, if desired to send to all members Send SMS Tap to select Admin to enable limited text messages, select All, if desired to send to all members Trigger Action Tap to choose trigger actions (YoLink sirens, YoLink SpeakerHubs, scene)
-
Page 25: App Functions: Automation
App Functions: Automation The X3 Temperature & Humidity Sensor can be set up as a condition in an automation. For example, you can automatically turn on a fan if the sensor detects a high temperature. This example is shown below. The automation also sends a custom notification (via app push... -
Page 26: Sensor Calibration
Sensor Calibration Your X3 Outdoor Temperature & Humidity Sensor has a high-accuracy digital sensor that has been calibrated at the time of manufacture. Your sensor readings should always be accurate, but if you believe the sensor is not accurate and/or if you have a thermometer or trusted sensor, etc. - Page 27 Sensor Calibration, Continued How to Calibrate Your Sensor: 1. Open the sensor's Details screen and tap Calibration. 2. The Calibration screen is displayed, as shown below. To calibrate the temperature or humidity, tap and hold the associated slider bar control, then slide the control to the right, for a positive offset, or to the left, for a negative offset.
-
Page 28: Sensor Refresh Frequency
Sensor Refresh Frequency Both temperature and humidity values refresh when one of the following conditions are met: a. The SET button has been pressed SET Button When temp is over 32°F(0°C), at least 1.8°F (1°C) change over a period longer than 1 minute;... - Page 29 Sensor Refresh Frequency c. At least 3.6°F (2°C) change within 1 minute d. At least 10% change over a period longer than 1 minute e. Device alert level reached or restored to normal range d. Otherwise, the values will be refreshed automatically once an hour...
-
Page 30: 3Rd-Party Services
(High Temp, Low Temp, High Humidity, or Low Humidity) in the routine. Alexa now includes the capability to query the temperature of a device and utilizes the X3 Outdoor Temperature & Humidity Sensor for initiating trigger actions, based on high or low temperature (note that humidity-triggered actions are not supported). - Page 31 3rd-Party Services, Continued Google only supports querying the temperature or humidity of the devices. For example, edit the name of the device in Alexa or Google to “Sunroom", then you can ask: “Echo, what is the sunroom temperature?" You can also try, “Alexa, what is the temperature of the Sunroom sensor?"...
-
Page 32: Battery Replacement
Battery Replacement Tools Required : Small Flathead/ Small Phillips Screwdriver Slotted Screwdriver As shown below, insert the tip of a slotted/flathead screwdriver into the notch on the side of the sensor. Gently twist the screwdriver, to release the battery access cover. - Page 33 Battery Replacement, Continued Using a small Phillips screwdriver, loosen both battery compartment cover screws until the cover can be removed (the screws do not need to be entirely removed). Remove the old batteries.
- Page 34 Battery Replacement, Continued Matching the battery orientation/polarity symbols, insert two new lithium AA batteries. Replace the battery compartment cover and tighten the two screws.
- Page 35 Battery Replacement, Continued Position and snap the battery access cover back into place.
-
Page 36: Specifications
Specifications Voltage: 3V DC (2-Lithium non-rechargeable AA batteries) Device Current Draw: ≤ 150mA (operating) ≤ 55uA (standby) Sensor Types: Temperature, Humidity Temperature Value 0.1 (°F/°C) Accuracy: Humidity value 0.1% Accuracy: Alert Temperature: -22°F-140°F (-30°C- 60°C) Alert Humidity： 0%-100% Dimensions: 3.54 × 2.95 × 1.06 inches (90 ×... - Page 37 Specifications, Continued Temperature Error -22°F- -4°F, ±0.9°F (Typical): (-30°C- -20°C, ±0.5°C) -4°F-32°F, ±0.72°F (-20°C-0°C, ±0.4°C) 32°F-140°F, ±0.36°F (0°C-60°C, ±0.2°C) Humidity Error 10%-90%, ±2% (Typical,@77°F/25°C): 0%-10%/90%-100%, ±3% Environment: Working Temperature: -22°F -140°F (-30°C-60°C) Working Humidity: ≤ 95% (non-condensing)
- Page 38 Specifications, Continued 2.95” (75mm) 1.06” (27mm) FRONT SIDE 2.95” (75mm)
-
Page 39: Factory Reset
Factory Reset When directed by customer support, and/or as an attempt to resolve a problem with your X3 Outdoor Temperature & Humidity Sensor, it may be necessary to perform a factory reset. Factory resetting your sensor returns it to the factory default programming and settings. -
Page 40: Firmware Updates
Firmware Updates Your YoLink products are frequently being improved, with new features and functions added over time. It is periodically necessary to make changes to your device firmware. For optimal performance of your device, and to give you access to any improvements made to your device model, these firmware updates should be... - Page 41 Firmware Updates, Continued Firmware is like settings in your sensor that define the overall operations of the sensor. These settings are added to the sensor when it is manufactured, and they are periodically updated, as needed, to add improvements, new features, new integrations, etc, to your sensor, as they become available.
-
Page 42: Troubleshooting
Troubleshooting Problem: Sensor is offline or has a low signal status. Possible Solution: a) Signal strength for the sensor is too low at that location. Move the sensor closer to the hub, relocate the hub closer to the sensor (if possible), or add another hub (to extend the signal range). - Page 43 Sensor temperature or humidity is not accurate, compared to another sensor Possible Solution: Your X3 Outdoor Temperature & Humidity Sensor does have a Calibration feature, that allows for adjusting the displayed temperature or humidity, to match that of a trusted temperature or humidity measuring device or method.
-
Page 44: Warnings
Warnings For optimal performance and lifetime of your X3 Outdoor Temperature & Humidity Sensor, please adhere to the following warnings: When replacing the batteries, only use new alkaline or lithium non-rechargeable batteries. Do not use zinc blend batteries. Do not mix old and new batteries. -
Page 45: Warranty
Warranty 2 Year Limited Electrical Warranty YoSmart Inc. warrants to the original user (“customer”) of this product that it will be free from defects in materials and workmanship, under normal use, for 2 years from the date of purchase. This warranty does not apply to devices that have been improperly installed, modified, put to a use other than designed, or subjected to acts of God (such as floods,... -
Page 46: Fcc Statement
FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 47 The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. PRODUCT NAME: X3 OUTDOOR TEMPERATURE & HUMIDITY SENSOR PARTY: YOSMART, INC. TELEPHONE: 831-292-4831 MODEL NUMBER:...
-
Page 48: Aa Contact Us
Support Home Page Finally, if you have any feedback or suggestions for us, please email us at feedback@yosmart.com Thank you for trusting YoLink! YoLink Customer Support 25172 Arctic Ocean Drive, Suite 106, Lake Forest, CA 92630 © 2024 YOSMART INC. CALIFORNIA, USA...
