5.1.3 Angle and Space Requirements

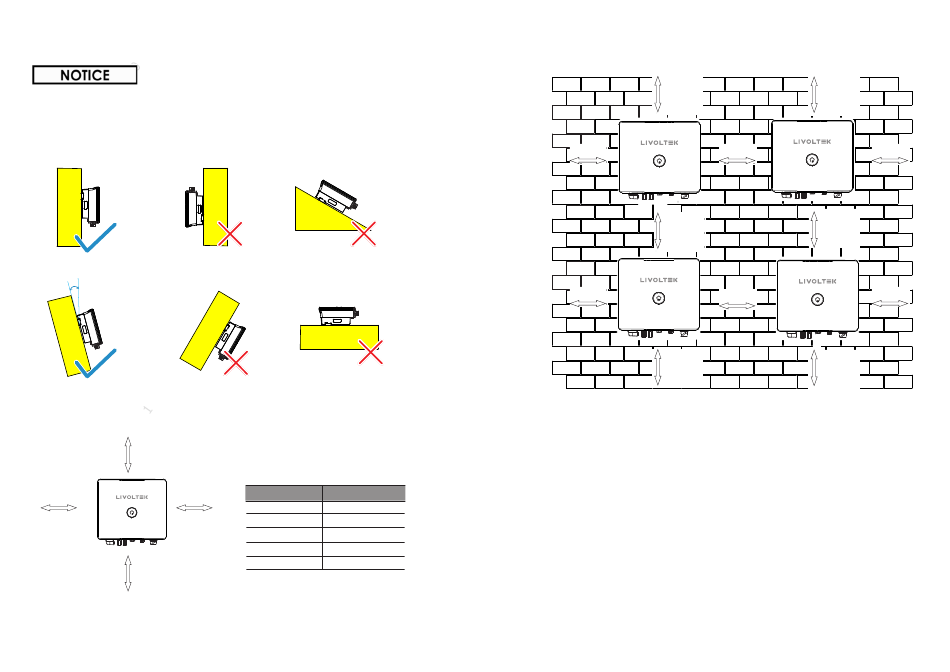

Never install the inverter horizontally, or with a forward tilt or with a
backward tilt or even with upside down. The horizontal installation can
result in damage to the inverter. Install the inverter upright or at a
maximum back tilt of 15 degrees to facilitate heat dissipation.
max 15 degrees
Reserve enough space when installing inverter (at least 300mm) for heat
dissipation.
≥500mm
≥300mm ≥300mm
≥600mm
10
Reserved space dimensions of
installation
Position
Min Distance
Left 300mm
Right 300mm
Up
500mm
Down 600mm
Forward
500mm
The distance of installation space for multiple inverter is as follows:
≥500mm
≥300mm
1 0
≥ 0 0mm
≥300mm
≥600mm
≥500mm
≥300mm ≥300mm
10
≥ 00mm
≥300mm
≥300mm
≥600mm
11
