ASSEMBLY INSTRUCTIONS

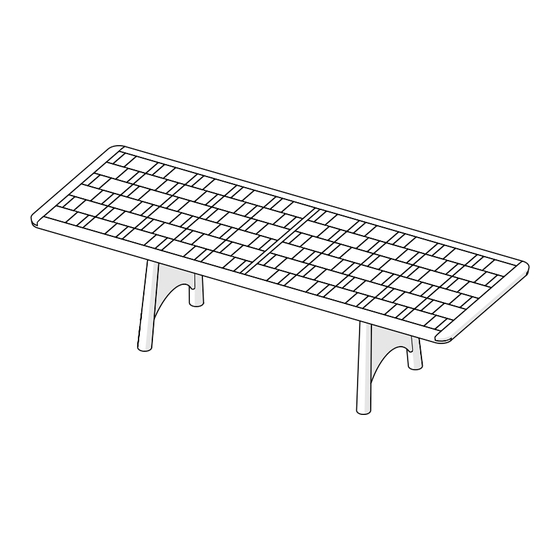

681 TWENTY-FIVE DINING TABLE BY DE LA ESPADA ATELIER
PARTS
1x Timber tabletop
2x Tile panels
2x Leg frames
HARDWARE
(16x) M8x35 Socket cap screws
(32x) M6x35 Countersunk screws
YOU WILL NEED
4mm Allen Key
6mm Allen Key
The help of a friend
NOTES
NOTE 1: Be certain that all assembly is carried out on a flat
and stable surface. This will ensure a good final result.
Reverse the steps to disassemble the piece.
NOTE 2: Your furniture arrives packed in numerous layers that
protect it during transport. It is important that you remove
the packaging carefully to avoid damaging your furniture. Refer
to our information sheet "Unpacking Your Furniture" for further
details.
NOTE 3: Great care is required when assembling our products .
Use blankets to soften the assembly surface - hard surfaces
such as wood or stone flooring may damage the furniture if in
direct contact.
NOTE 4: We advise that assembly and disassembly of De La Espada
furniture is undertaken by a minimum of 2 people.
NOTE 5: When screwing in bolts, tighten well, but be sure
NOT TO OVERTIGHTEN. This can cause the thread to strip thus
resulting in a poor connection.
NOTE 6: All mating parts are numbered. You will ensure the
best possible fit if all parts are mated with the corresponding
numbered parts. While you work, be sure all connections are
flush with no gaps.
(16x) M8 washers
