www.ti.com
EVM User's Guide: LMG2100EVM-097
LMG2100R026 Evaluation Module
Description
The LMG2100R026 evaluation module is a compact,
easy-to-use power stage with an external PWM
signal. The board can be configured as a buck
converter, boost converter, or other converter topology
using a half bridge. The device can be used to
evaluate the performance of the LMG2100R026 as
a hard-switched converter to sample measurements
such as efficiency, switching speed and dv/dt (slew
rate). The EVM features a LMG2100R026 half-bridge
power module with two 100V, 2.6mΩ GaN FETs
driven by 90V GaN FET half-bridge gate driver.
The module can deliver up to 40A of current if the
application includes adequate thermal management
(monitor case temperature and verify adequate airflow
is present if required). The thermal management
considerations include forced air, heat sink, and lower
operating frequency to minimize the power dissipation
in the module. Do not use to evaluate transient
response because this is an open-loop board with an
external PWM signal.
SNVU915 – AUGUST 2024
Submit Document Feedback

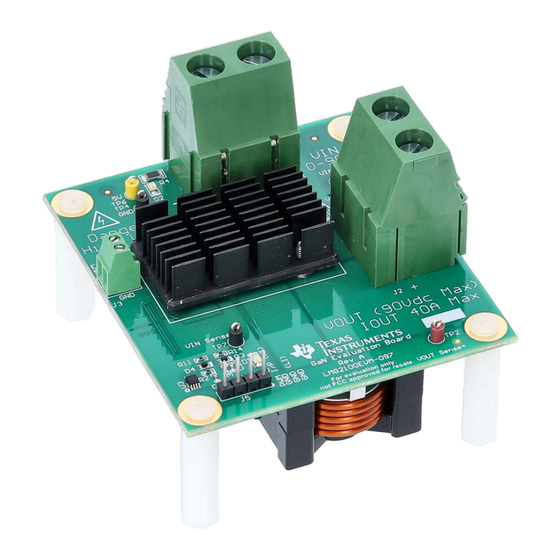

LMG2100EVM-097 Evaluation Module With Heat Sink
Copyright © 2024 Texas Instruments Incorporated
Features
Input voltage operates up to 90V DC
Integrated 100V, 2.6mΩ GaN FETs with driver -
LMG2100R026
Open loop control with single or dual PWM signals
Single-input, onboard for PWM signal with 8ns
dead time
Configurable onboard dead-time adjustment by
simple resistance change
Onboard LDO for generating 5V VCC supply from
an unregulated supply between 5.5V and 10V
Kelvin sense capability for efficiency
measurements for input and output voltage
Slew rate adjustment using series resistors along
with C
and C
boot
vcc
Applications
High-speed synchronous buck/boost converters
Solar power
optimizer,
Class D amplifiers for audio
48V point-of-load converters for industrial
Motor drives
Power tools
Telecom and server power
LMG2100R026 Evaluation Module
Description
micro-inverter
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMG2100R026 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments LMG2100R026

  • Page 1 Description EVM User's Guide: LMG2100EVM-097 LMG2100R026 Evaluation Module Description Features The LMG2100R026 evaluation module is a compact, • Input voltage operates up to 90V DC easy-to-use power stage with an external PWM • Integrated 100V, 2.6mΩ GaN FETs with driver - signal.
  • Page 2: Kit Contents

    The EVM board is designed to accelerate the evaluation of the LMG2100R026. This board is not intended to be used as a standalone product, but is intended to evaluate the switching performance of LMG2100R026.
  • Page 3 Evaluation Module Overview General Texas Instruments High Voltage Evaluation (TI HV EVM) User Safety Guidelines WARNING Always follow TI's set-up and application instructions, including use of all interface components within the recommended electrical rated voltage and power limits. Always use electrical safety precautions to help verify your personal safety and those working around you.
  • Page 4: Test Points

    2.1.1.1 Connect a Supply to J3 Connector There is the bias supply EXTVCC (between 5.5V and 10V) for the LMG2100R026 driver. This driver supply is regulated to 5V by the series LDO U2 (LP3869). This regulation verifies that the bias supply for the LMG2100R026 is accurate and is not exceeded beyond the gate voltage specifications.
  • Page 5: Power-Up Procedure

    LMG2100R026 half bridge. The output load is connected to the J2 connector. The positive and negative sense signals are TP2 and TP3, respectively.
  • Page 6: Power-Down Procedure

    2. Next, turn off the input supply. 3. The PWM signal must be turned off next. 4. Finally, turn off the driver bias supply. LMG2100R026 Evaluation Module SNVU915 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7: Assembly Guidelines

    Hardware 2.4 Assembly Guidelines Please follow the recommended assembly guidelines for the LMG2100R026 samples: • Use low temperature solder paste (like Sn42-Bi58) whose melting temperature is around 130℃-140℃. • Soldering using bottom side heating: – Recommended for thinner board (less than or equal to four layers) with no components directly underneath the device.
  • Page 8: Electrical Performance Specifications

    Figure 3-2 show the top and bottom views of the LMG21EVM-097, respectively. Figure 3-1. LMG2100EVM-097 Board (Top View) Figure 3-2. LMG2100EVM-097 Board (Bottom View) LMG2100R026 Evaluation Module SNVU915 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 High voltages that can cause injury exist on this evaluation module (EVM). Please verify all safety procedures are followed when working on this EVM. Never leave a powered EVM unattended. SNVU915 – AUGUST 2024 LMG2100R026 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 Switching node behavior for 48V-24V 20A Buck at 200kHz and Rbst = 3ohm (between HB-HS) Figure 3-4. SW Node Behavior Showing the Dead Time and the Overshoot Figure 3-5. SW Voltage Rise (Without External Isolated Supply on HB-HS) LMG2100R026 Evaluation Module SNVU915 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 Figure 3-6. SW Voltage Rise (With External Isolated Supply on HB-HS) Figure 3-7. SW Voltage Fall Note Visit the E2E forum Gallium Nitride Solutions for more information regarding LMG2100R026 or LMG2100 hard-switched EVM. SNVU915 – AUGUST 2024 LMG2100R026 Evaluation Module Submit Document Feedback...
  • Page 12 Hardware Design Files www.ti.com 4 Hardware Design Files 4.1 Schematic Figure 4-1 shows the schematic of the EVM. Figure 4-1. LMG2100EVM-097 Schematic LMG2100R026 Evaluation Module SNVU915 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13: Pcb Layouts

    Hardware Design Files 4.2 PCB Layouts Figure 4-2. Top Layer of the PCB Figure 4-3. Mid Layer-1 showing return path for power loop SNVU915 – AUGUST 2024 LMG2100R026 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14 Hardware Design Files www.ti.com Figure 4-4. Mid Layer-2 Figure 4-5. Bottom Layer LMG2100R026 Evaluation Module SNVU915 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 Heat Sink, Black Anodized, 35 x 50mm, 20mm S05MZZ37 Alpha Novatech high, with Push Pin and Spring Thermal Interface Material GR80A-0H-50GY Fuji Polymer Industries SNVU915 – AUGUST 2024 LMG2100R026 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16 100V, 53A GaN Half-Bridge Power Stage VQFN-FCRLF16 LMG2100R026 Texas Instruments 1A Low Dropout CMOS Linear Regulators Stable with Ceramic Output Capacitors, 6-pin LLP, Pb- SDE06A LP38690SD-5.0/NOPB Texas Instruments Free LMG2100R026 Evaluation Module SNVU915 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17 RMCF/RMCP Series General Purpose Thick Film 0402 (1005 metric) RMCF0402ZT0R00 Stackpole Standard Power and High Power Chip Resistor Unless otherwise noted, all parts can be substituted with equivalents. SNVU915 – AUGUST 2024 LMG2100R026 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 18: Additional Information

    Additional Information www.ti.com 5 Additional Information 5.1 Trademarks All trademarks are the property of their respective owners. LMG2100R026 Evaluation Module SNVU915 – AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 19 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 20 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 21 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 22 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 23 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 24 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
