- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Members Mark B08SMG_3 Owner's Manual Shop genuine replacement parts for Members Mark B08SMG_3 Find Your Members Mark Grill Parts - Select From 133 Models -------- Manual continues below --------...
-
Page 2: Grill Guide

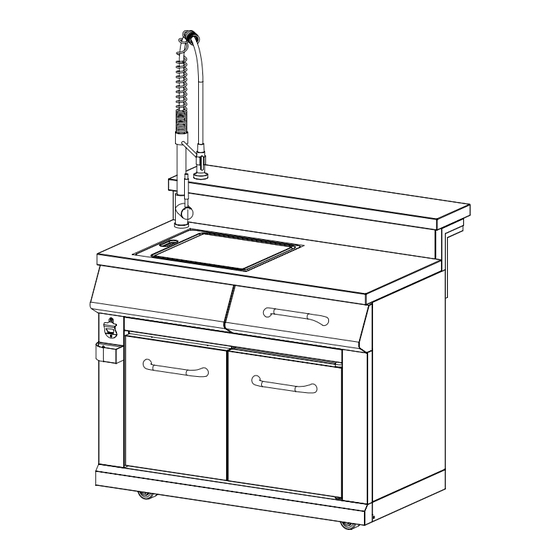

Grill Guide Party Cart Module Model B08SMG-3 Stop! Missing a part? No need to go back to SAM'S CLUB! SAM'S CLUB does not stock parts for this item at the Club, but our team is here to help you. If you need parts, whether they are missing or damaged, 1-800-933-0527. -
Page 3: Limited Warranty
TO THE INSTALLER OR PERSON ASSEMBLYING THIS CART: Leave this Guide with the consumer. TO THE CONSUMER: Retain this Guide for future reference. Limited Warranty The manufacturer warrants to the original failure perform normal routine consumer-purchaser that this product shall be maintenance, discoloration, scratches,... - Page 4 Detail Parts List for Model B08SMG-3 C1 Faucet Assembly C13 Granite Countertop C2 Faucet Support Base C14 Sink Front Panel C3 Faucet Washer C15 Drain Hose Guide C4 Faucet Support Base Nut C16 Cabinet Assembly C5 Brass Male Fitting C17 Waste Basket Drawer...
- Page 5 Parts Diagram for Model B08SMG-3...
-
Page 6: Parts List
B08SMG-3 Assembly Parts List Parts List 1. Main Assembly 2. Faucet Assembly..1PC 3. Bar Counter ..1PC 1. Party Cart Assembly….1PC 4.Top Shelf Support Assemble..1PC 5.Bar Counter Bracket ..2PCS 6.Bottle Lid Box ..1PC 6. Cap Catcher….1PC Bar Counter Support Assembly Assembly Hardware List... - Page 7 STEP 1 – Lift out the Cutting Board and Sink from the Cabinet of the Party Cart. STEP 2 – Insert the Faucet Assembly (2) into the Granite Countertop through the Faucet Support Base.
- Page 8 STEP 3 – Secure the Faucet Assembly to the Faucet Support Base using the screwdriver and 2 Bolts that are packed with the Faucet. STEP 4 – Secure the lower end of the Faucet Hose to the Brass Male Fitting in the back of the Cabinet.
- Page 9 STEP 5 – Use 2pcs M6x52 (A) bolts through the upper holes of the Bar Counter Support Assembly (4) to attach it to the Granite Countertop as shown. Use 2pcs M6x25 (B) bolts through the lower holes of the Bar Counter Support Assembly to attach it to the back of the Cabinet Back Panel.
- Page 10 STEP 7 – Insert the Sink back into the Cabinet. STEP 8 – Pull out of the Waste Basket Drawer and take out the Waste Basket. STEP 8...
- Page 11 STEP 9 – Extend the Drain Hose attached to the bottom of your Sink out through the hole in the Cabinet Bottom Panel. Then pull the Drain Hose out though the Bottom Panel of the Cabinet as shown. STEP10- Replace the Waste Basket into the Waste Basket Drawer as shown. STEP 10...
- Page 12 STEP 11- Loosen the bolts located along the top of the Cabinet Front Panel. Attach the Cap Catcher as shown. Retighten the bolts. EP 11 STEP 12- Place the Cutting Board back over the Sink.
- Page 13 STEP 13- Remove any additional labels or packing material from the Party Cart Module. Congratulations! Your Party Cart Module is now assembled and ready for use.
- Page 14 Party Cart Use and Care Information Water Information We recommend using a marine and/or camping hose to run water to the sink. These hoses are drinking water safe and use nickel plated brass couplings for additional safety. Stainless Steel Care •...
