Kohler Command CV17-750 Service Manual page 162

Section 9
Disassembly
Control Bracket

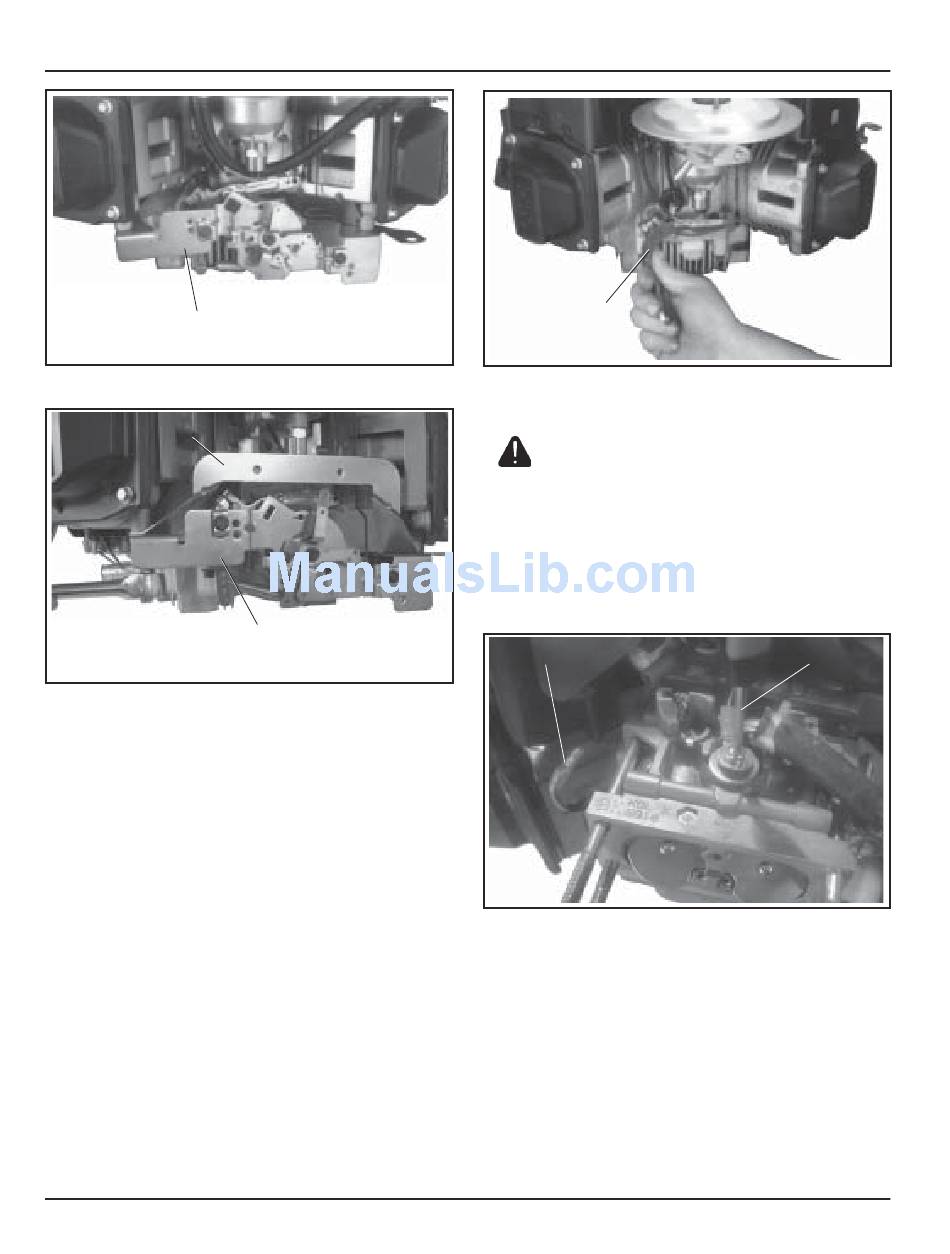

Figure 9-18. Removing Control Bracket.
Air Cleaner Brackets
(Some Models)
Control Bracket
Figure 9-19. Removing Control Bracket and Air
Cleaner Bracket (Some Models).
2. Disconnect the spring from the governor lever;
note hole locations for reassembly.
3. Remove the choke linkage from the choke
actuator lever and carburetor.
Remove External Governor Controls
1. Loosen the hex flange nut and remove the
governor lever from the cross shaft. See Figure
9-20. Leave the lever attached to the throttle
linkage.
9.6
Governor Lever
Figure 9-20. Removing Governor Lever.
Remove Carburetor
WARNING: Explosive Fuel!
Gasoline may be present in the carburetor and fuel system.
Gasoline is extremely flammable, and its vapors can explode
if ignited. Keep sparks and other sources of ignition away
from the engine.
1. Disconnect the fuel shut-off solenoid lead if so
equipped.
Fuel Solenoid
Lead
Figure 9-21. Removing Fuel Solenoid and Ground
Leads (Two-Barrel Model Pictured).
2. Remove the carburetor mounting nuts. See Figure
9-21.
Ground Lead
