Summary of Contents for Kospel PPE4.B

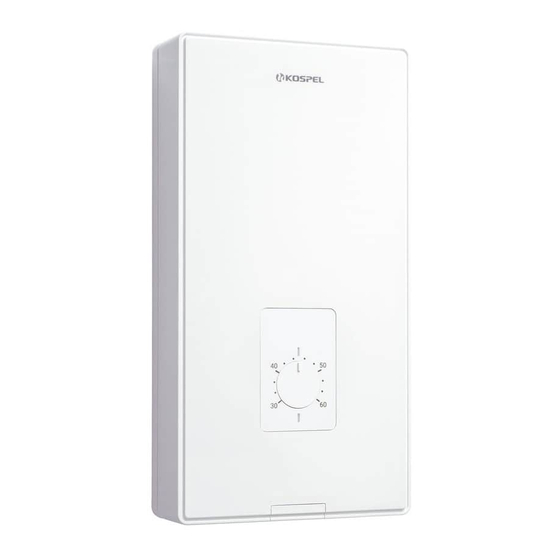

  • Page 1 Electric Instantaneous Water Heater PPE4.B PPE4.M Installation and operation manual...
  • Page 2: Table Of Contents

    Safety Guidelines (cont.) Product overview Intended use Product highlights Construction Installation Bleeding air Configuration Commissioning and operating the PPE4.B Commissioning and operating the PPE4.M WiFi configuration - PPE4.M Terminal block safety trip Priority control relay operation Maintenance Technical specifications Technical specifications (cont’d.)
  • Page 3: Explanation Of Symbols

    Explanation of symbols Follow the safety instructions carefully in order to prevent injury and damage. Danger This sign warns against danger of injury. Note This sign warns against property damage and environmental pollution. Text marked with the word Tip contains additional information. Refer to this manual when operating the product or its controls labelled with this symbol.
  • Page 4: Safety Guidelines

    Safety Guidelines Product connection requirements • The product is designed solely for mounting on a flat, upright wall. • The electrical wiring system shall be designed and installed in compliance with the applicable electrical codes. • Once installed, the heater shall facilitate unobstructed access for servicing.
  • Page 5: Safety Guidelines (Cont.)

    Safety Guidelines (cont.) Working with this product • The heater may be operated only if it has been properly installed and its technical condition is perfectly fit for operation. • The maximum water temperature at the heater outlet (supply end) shall not exceed 60°C. •...
  • Page 6 Operation of the product Danger Note that water at more than 40°C is uncomfortably hot (especially to children); at temperatures above 50°C, hot water is a risk of scalding, resulting in 1st degree burns (especially in children). Danger Every time there is a water outage in the supply system of the heater, always disconnect the heater from electrical power and bleed air from the heater.
  • Page 7: Product Overview

    Product overview Type PPE4 electric tankless water heater is intended for production of domestic hot water (DHW) at private homes, lavatories, laboratories, workshops, etc. This heater is a multi-point DHW heater and may provide DHW to multiple taps (a kitchen sink, a washbasin, a shower, a bathtub, etc.).
  • Page 8: Construction

    Construction [1] - baseplate [2] - heating unit [3] - pressure switch [4] - control panel [5] - outlet port - DHW supply end [6] - stop valve [7] - inlet port - cold water end [8] - power cable penetration (at the bottom) [9] - lower terminal block [10] - flow sensor [11] - heat output &...
  • Page 9: Installation

    Installation Wall mounting bracket 250mm 105mm 170mm 104mm Cable penetrations on 390mm 478.3mm the enclosure rear panel 92.5mm 92.5mm DHW outlet cold water inlet 100mm 160 mm 180 mm ≥60 mm ≥30 mm Wiring length for the lower terminal block Wiring length for the upper terminal block connections connections...
  • Page 10 Use the template to mark out the holes on the wall to be drilled for the wall mounting bracket. Lead the power wiring and water p l u m b i n g c o n n e c t i o n s t o t h e installation location.
  • Page 11: Bleeding Air

    Before proceeding with the installation process, PE L1 L2 L3 break out the power cable penetration blank out of the housing in the suitable location [8] or [14] and install the rubber grommet [16] in the open penetration. Fasten the wall mounting bracket with the screws. L1 L2 L3 Place the heater on the wall mounting bracket as G1 G2 G3...
  • Page 12: Configuration

    Configuration 10kW setting for PPE4 - 10/11/12/15 17kW setting for PPE4 -17/18/21/24 11kW setting for PPE4 - 10/11/12/15 18kW setting for PPE4 -17/18/21/24 12kW setting for PPE4 - 10/11/12/15 21kW setting for PPE4-17/18/21/24 15kW setting for PPE4 - 10/11/12/15 24kW setting for PPE4 - 17/18/21/24 Maximum DHW outlet temperature setting at 55°C (SHOWER) Locking out the DHW outlet temperature setting to prevent...
  • Page 13: Commissioning And Operating The Ppe4.B

    Commissioning and operating the PPE4.B The heater turns on to heat automatically when the sensed water flow rate exceeds 1.8 l/min. The control system manages the heat output according to the setting by monitoring the DHW flow rate, the water temperature setting, and the cold water temperature.
  • Page 14: Commissioning And Operating The Ppe4.M

    Commissioning and operating the PPE4.M After turning on the power supply, the panel software version will appear on the display, followed by the controller software version along with the set heater power. Before the first heating, the control system waits for stabilisation of the parameters, which is indicated by and a message.
  • Page 15 Main menu Temperature setting mode. Subsequent pressing is the choice of three recorded temperatures, Change in the set value, Hold to open the parameter setting overview. Parameter setting overview Actual heat output. Cold water inlet temperature. Hot water outlet temperature. DHW temperature setting.
  • Page 16 Configuration Selects one of the three most often used temperature settings. Opens the setting mode, Modifies the setting value, Set saved and return to the configuration menu. Opens the LCD backlight level setting for the sleep mode. Changes the setting value, Returns to the configuration menu.
  • Page 17 Opens the disinfection menu, which is password-protected [23]. Change of the item. - Disinfection heating temperature setting. Opens the setting mode, Changes the setting value, Return. - Enables the disinfection function. Activation start (the heater will heat the water to the set temperature value in one, the nearest heating cycle, but not later than 15 minutes from setting).
  • Page 18 Error display Possible causes Solutions ISOLATE THE PRODUCT FROM THE POWER Power One or more triacs have failed. SUPPLY and contact the technical service. - Tin sensor failure, Verify that the harness connector is in - Tin sensor missing, the correct receptacle; if it is, contact the - Tin sensor connection short to technical service.
  • Page 19 Warning display Code Possible causes Solutions if the problem persists, contact the W01 - E06 AIR1 error while heating. technical service. if the problem persists, contact the W02 - E05 AIR2 error while heating. technical service. if the problem persists, contact the W03 - E08 FLOW error while heating.
  • Page 20 W11 - WiFi module failure. Contact the technical service. W12 - Control PCB failure. Contact the technical service. - Verify the heater installation location is correct, - Verify the cold water supply - Operation environment conditions out of limits, temperature, - Inlet temperature sensor failure.
  • Page 21: Wifi Configuration - Ppe4.M

    Internet and try to connect to the WiFi module again. In order to properly configure the connection, select the access point from the list displayed under the inscription „KOSPEL PPE4 Wi-Fi ppe4_00000001 configuration.” Under the SSID of the network, its signal strength is displayed.
  • Page 22: Terminal Block Safety Trip

    If the WIFI signal level (1..100%) appears on the display, the connection to the WiFi network has been established and the procedure has been completed. You can download the free “Kospel PPE4” software from the app store (Android, iOS) and start remote work with the heater.
  • Page 23: Priority Control Relay Operation

    Priority control relay operation If the power input of the loads connected to the power supply system prevents their simultaneous operation with the heater, a priority control relay must be installed. Wire the heater terminal block L1 to the power supply source via the priority control relay.
  • Page 24: Technical Specifications

    Technical specifications...
  • Page 25: Technical Specifications (Cont'd.)

    Technical specifications (cont’d.) Supply water pressure 0,1 ÷ 1,0 Heating start threshold l/min (minimum flow rate) NORMAL mode Control range for water °C temperature SHOWER mode Water connection ports G 1/2” (port distance 100mm) Sound power level L Overall dimensions 478 x 250 x 99 (height x width x depth) Weight...
  • Page 26: Packaging Contents

    Packaging contents PPE4 water heater 1 pc. Wall mounting bracket 1 pc. Gaskets 2 pc. Screws 2 sets List of authorised technical service locations 1 pc. Drilling template 1 pc. Warranty certificate and installation certificate form 1 pc. Packaging disposal Recycle obsolete packaging according to the applicable regulations.
  • Page 27: Declaration Of Conformity; Reference Standards And Directives

    Declaration of conformity; reference standards and directives KOSPEL Sp. z o.o. hereby declares on its sole responsibility that type PPE4 electric tankless water heaters specified in this manual conform to European Directives and their corresponding safety standards for electric household appliances:...
  • Page 28 KOSPEL Sp. z o.o. 75-136 Koszalin, ul. Olchowa 1, Poland tel. +48 94 31 70 565 serwis@kospel.pl www.kospel.pl Made in Poland...
