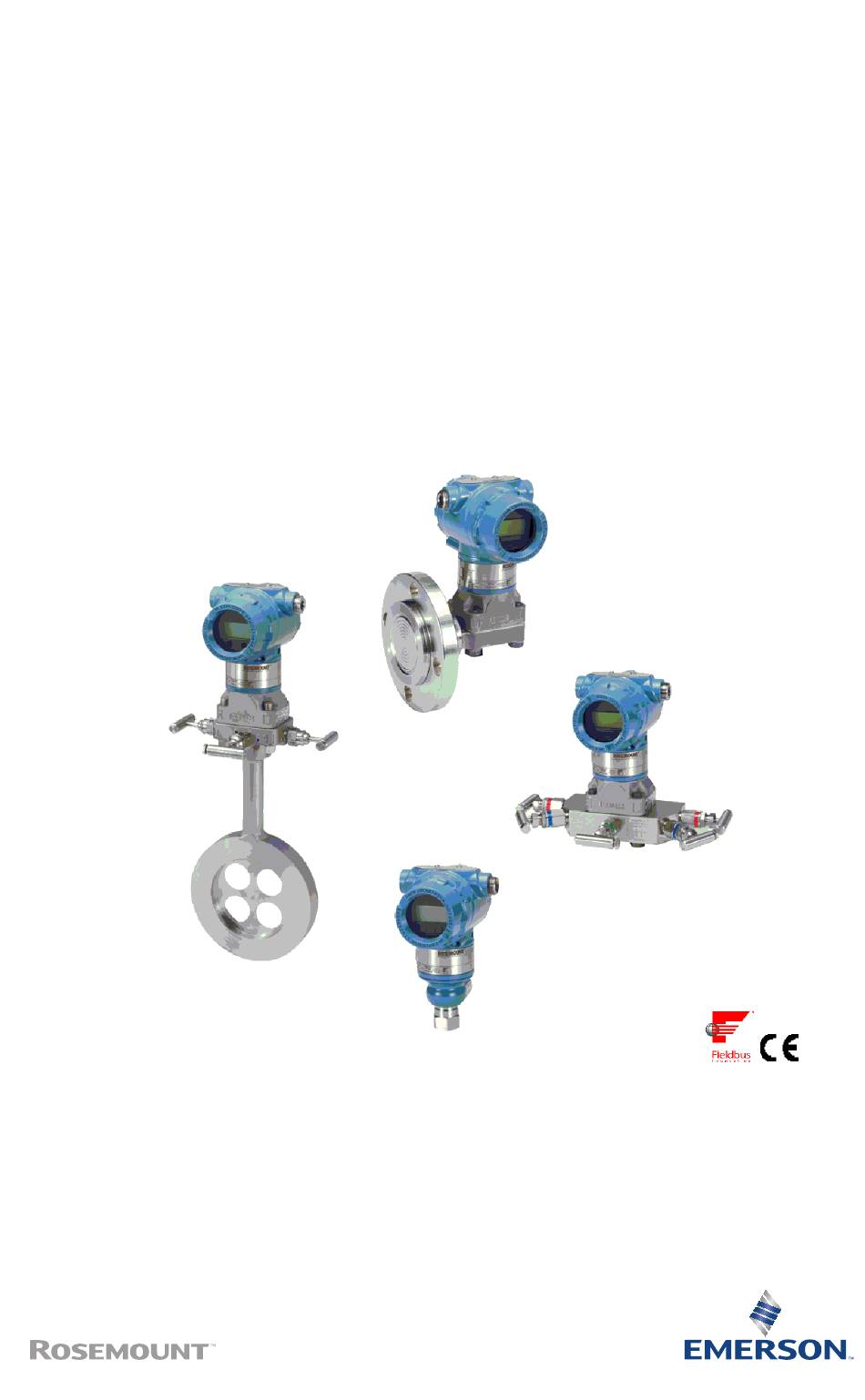

Quick Start Guide
00825-0200-4774, Rev DB
November 2024
™
Rosemount
3051 Pressure
Transmitter and Rosemount 3051CF
Series Flow Meters
with F
Fieldbus Protocol
™
OUNDATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 3051CF Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emerson Rosemount 3051CF Series

Summary of Contents for Emerson Rosemount 3051CF Series

  • Page 1 Quick Start Guide 00825-0200-4774, Rev DB November 2024 ™ Rosemount 3051 Pressure Transmitter and Rosemount 3051CF Series Flow Meters with F Fieldbus Protocol ™ OUNDATION...
  • Page 2 Quick Start Guide November 2024 Contents About this guide........................... 3 System readiness......................... 5 Transmitter installation....................... 7 Product certifications........................ 31 www.Emerson.com...

  • Page 3: About This Guide

    Explosion-proof, Flameproof, or intrinsically safe (I.S.) installations. Refer to Rosemount 3051 Reference Manual for more instructions. This guide is also available electronically at Emerson.com/Rosemount. 1.1  Safety messages  WARNING Explosions Explosions could result in death or serious injury.
  • Page 4 This is true for all systems used within the facility.  WARNING Refer to the Product certifications section of this Quick Start Guide documentation when using the RFID tag (option code Y3) for required installation conditions. www.Emerson.com...

  • Page 5: System Readiness

    ™ systems to ensure proper communications. • Download the correct device driver at your host vendor download site, Emerson.com/Rosemount or Fieldbus.org. 2.1.1  Rosemount 3051 device revisions and drivers Table 2-1 provides the information necessary to ensure you have the correct device driver and documentation for your device.
  • Page 6 Device Host Device driver Device Document Revision (DD) driver (DTM) Emerson Field Communicator: DD Rev 6 Fieldbus device revision can be read using a OUNDATION Fieldbus capable configuration tool. OUNDATION Device driver file names use device and DD revision. To access...

  • Page 7: Transmitter Installation

    November 2024 Quick Start Guide 3  Transmitter installation 3.1  Mounting options Figure 3-1: Panel Mount Coplanar Flange 5/16 x 1½ panel bolts are customer supplied. Figure 3-2: Pipe Mount Coplanar Flange www.Emerson.com...
  • Page 8 Quick Start Guide November 2024 Figure 3-3: Panel Mount Traditional Flange Figure 3-4: Pipe Mount Traditional Flange Figure 3-5: Panel Mount Rosemount 3051T www.Emerson.com...
  • Page 9 3. Mount the transmitter so the drain/vent valves are oriented upward. Figure 3-7: Mounting the Transmitter in Liquid Applications In-line 3.1.2  Mount the transmitter in gas applications Procedure 1. Place taps in the top or side of the line. 2. Mount beside or above the taps. www.Emerson.com...
  • Page 10 Quick Start Guide November 2024 Figure 3-8: Mounting the Transmitter in Gas Applications In-line www.Emerson.com...

  • Page 11: Bolting Considerations

    Use only bolts supplied with the transmitter or sold by Emerson as spare parts. Figure 3-10 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
  • Page 12 . If bolt material is not shown in Table 3-1, contact a local Emerson representative for more information. Procedure 1. Carbon steel bolts do not require lubrication and the stainless steel bolts are coated with a lubricant to ease installation.

  • Page 13: O-Rings With Flange Adapters

    The two flange adapters are distinguished by unique O-ring grooves. Only use the O-ring that is designed for its specific flange adapter, as shown in Figure 3-11. Figure 3-11: O-ring location: Rosemount 3051S/3051/2051 A. Flange adapter B. O-ring C. PFTE-based profile (square) D. Elastomer profile (round) www.Emerson.com...
  • Page 14 NEMA Type 4X, IP66, and IP68. Consult factory if ® other Ingress Protection ratings are required. For M20 threads, install conduit plugs to full thread engagement or until mechanical resistance is met. www.Emerson.com...
  • Page 15 4. Tighten the gland nut to a torque of 25 ft-lb. Note A weep hole has been designed into the transmitter for safety and leak detection. If fluid begins to leak from the weep hole, isolate the process pressure, disconnect the transmitter, and reseal until the leak is resolved. www.Emerson.com...

  • Page 16: Consider Housing Rotation

    The device description loaded in the host system must be at the same revision as this device. You can download the device description from the host system website or Emerson.com/ Rosemount by selecting Device Drivers under Resources. You can also visit Fieldbus.org...

  • Page 17: Set The Switches

    Use the following procedure to change the switch configuration: Procedure 1. If the transmitter is installed, secure the loop, and remove power. 2. Remove the housing cover opposite the field terminal side. Do not remove the instrument cover in explosive atmospheres when the circuit is live. www.Emerson.com...

  • Page 18: Connect Wiring And Power Up

    9 Vdc. Power supply voltage can be variable, especially under abnormal conditions, such as when operating on battery backup. Emerson recommends a minimum of 12 Vdc under normal operating conditions and shielded twisted pair Type A cable.
  • Page 19 When using a direct wiring method, wrap wire clockwise to ensure it is in place when tightening the terminal block screw. Note Emerson does not recommend using a pin or ferrule wire terminal, as the connection may be more susceptible to loosening over time or under vibration.

  • Page 20: Signal Wiring Grounding

    9 and 17.5 Vdc for FISCO intrinsic safety) to operate and provide complete functionality. 3.5.3  Power conditioner A Fieldbus segment requires a power conditioner to isolate the power supply filter and decouple the segment from other segments attached to the same power supply. www.Emerson.com...

  • Page 21: Shield Wire Ground

    For more advanced configurations, see the Rosemount 3051 Foundation Fieldbus Reference Manual. Note DeltaV users should use DeltaV Explorer for the resource and ™ transducer blocks and control studio for the function blocks. www.Emerson.com...
  • Page 22 2. Check switches and PRIMARY_VALUE_ software write lock DAMPING 8. Set up LCD display 3. Set signal conditioning: L_TYPE 9. Review transmitter configuration 4. Set scaling XD_SCALE 10. Set switches and Done software write lock 5. Set scaling OUT_SCALE www.Emerson.com...

  • Page 23: Before You Begin

    Underlined text – configuration task numbers from configuration flow chart 3.6.2  Before you begin Figure 3-17 to graphically view the step by step process for basic device configuration. Before beginning configuration, you may need to verify the device tag or deactivate hardware and software write www.Emerson.com...

  • Page 24: Ai Block Configuration

    The channel must be selected for AI blocks 3 and 4. • Channel 1 is the primary variable. • Channel 2 is the sensor temperature. If the F Fieldbus Diagnostics Suite Option Code D01 is OUNDATION enabled, these additional channels are available. www.Emerson.com...
  • Page 25 3. If L_TYPE is “Indirect” or “Indirect Square Root”, set OUT_SCALE to change engineering units. a) Select the OUT_SCALE UNITS from the drop down menu. b) Set the OUT_SCALE low value. This may be elevated or suppressed for level applications. www.Emerson.com...
  • Page 26 0.4 to 60 seconds. 6. Configure optional LCD display (if installed). a) To use guided setup: • Navigate to Configure  → Guided Setup. • Select Local Display Setup. Note Guided setup will automatically go through each step in the proper order. www.Emerson.com...
  • Page 27 The simulate enable/disable switch may be in either position for normal device operation. 3.6.4  Enable software write lock Procedure 1. Navigate from the Overview screen. a) Select Device Information. b) Select the Security and Simulation tab. 2. Perform Write Lock Setup to enable software write lock. www.Emerson.com...
  • Page 28 Enter data Channel L_Type Direct XD_Scale See list of supported engineering units. Note Select only the units that are supported by the device. Out_Scale Set values outside operating range. DP Flow example Parameters Enter data Channel L_Type Square root www.Emerson.com...

  • Page 29: Zero Trim The Transmitter

    The transmitter will only allow 3–5 percent URL zero error to be trimmed. For greater zero errors, compensate for the offset by using the XD_Scaling, Out_Scaling and Indirect L_Type which are part of the AI block. Procedure 1. To use guided setup: a) Navigate to Configure → Guided Setup. www.Emerson.com...
  • Page 30 Quick Start Guide November 2024 b) Select Zero Trim. c) The method will execute the zero trim. 2. To use manual setup: a) Navigate to Overview → Calibration → Sensor Trim. b) Select Zero Trim. c) The method will execute the zero trim. www.Emerson.com...

  • Page 31: Product Certifications

    European Directive Information A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. 4.2  Ordinary Location Certification...
  • Page 32 FM Class 3600 – 2011, FM Class 3610 – 2010, FM Class Standards: 3611 – 2004, FM Class 3810 – 2005 IS CL I, DIV 1, GP A, B, C, D when connected per Markings: Rosemount drawing 03031-1019 (–50 °C ≤ T ≤ +60 °C); Type 4x www.Emerson.com...
  • Page 33 03031-1024, Temperature Code T4; Suitable for Class I, Zone 0; Class I Division 2 Groups A, B, C, and D, T5; Suitable for Class I Zone 2, Group IIC; Type 4X; Factory Sealed; Single Seal (See drawing 03031-1053) www.Emerson.com...
  • Page 34 The model code and datasheet are to be consulted for details of the diaphragm material. During installation, maintenance, and use the environmental conditions to which the diaphragm will be subjected shall be taken into account. The manufacturer’s instructions for installation and www.Emerson.com...
  • Page 35 This must be taken into account when installing the apparatus. 2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however care should be taken to protect it from impact or abrasion if located in Zone 0. www.Emerson.com...
  • Page 36 6.8.1 of EN60079-15. This must be taken into account when installing the apparatus. 2. Some variants of the equipment have reduced markings on the nameplate. Refer to the Certificate for full equipment marking. www.Emerson.com...
  • Page 37 If paint is ordered through a special option code, contact the manufacturer for more information. 4. Some variants of the equipment have reduced markings on the nameplate. Refer to the Certificate for full equipment marking. I7 IECEx Intrinsic Safety IECEx BAS 09.0076X Certificate: www.Emerson.com...
  • Page 38 30 V 30 V 17.5 V Current I 200 mA 300 mA 380 mA Power P 0.9 W 1.3 W 5.32 W Capacitance C 0.012 μF 0 μF < 5 nF Inductance L 0 mH 0 mH < 10 μH www.Emerson.com...
  • Page 39 2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in Zone 0. N7 IECEx Type n IECEx BAS 09.0077X Certificate: IEC60079-0:2011, IEC60079-15:2010 Standards: www.Emerson.com...
  • Page 40 ABNT NBR IEC60079-0:2013, ABNT NBR Standards: IEC60079-11:2013 HART: Ex ia IIC T5/T4 Ga, T5(–60 °C ≤ T ≤ +40 °C), T4(–60 Markings: °C ≤ T ≤ +70 °C) Fieldbus/PROFIBUS: Ex ia IIC T4 Ga (–60 °C ≤ T ≤ +60 °C) www.Emerson.com...
  • Page 41 1. If the equipment is fitted with an optional 90 V transient suppressor, it is not capable of withstanding the 500 V insulation test required by ABNT NBR IEC 60079-11. This must be taken into account when installing the equipment. www.Emerson.com...

  • Page 42: Republic Of Korea

    Ex ec IIC T5 Gc Markings 4.8  Japan E4 Japan Flameproof TC20577, TC20578, TC20583, TC20584 [HART]; TC20579, Certificate: TC20580, TC20581, TC20582 [Fieldbus] Ex d IIC T5 Markings: 4.9  Republic of Korea EP Republic of Korea Flameproof 11-KB4BO-0188X [Mfg Singapore], 19-KA4BO-079X [Mfg Certificate: USA] www.Emerson.com...

  • Page 43: Technical Regulations Customs Union (Eac)

    Combination of C6, E8, and I1 Combination of E7, I7, and N7 Combination of E8, I1, and N1 Combination of E5, I5, and C6 Combination of E8, I1, E5, I5, and C6 Combination of EM and IM Combination of EP and IP www.Emerson.com...

  • Page 44: Conduit Plugs And Adapters

    1. When the thread adapter or blanking plug is used with an enclosure in type of protection increased safety “e” the entry thread shall be suitably sealed in order to maintain the ingress protection rating (IP) of the enclosure. 2. The blanking plug shall not be used with an adapter. www.Emerson.com...

  • Page 45: Additional Certifications

    SDN  Det Norske Veritas (DNV) Type Approval TAA000004F Certificate: DNV GL Rules for Classification — Ships and offshore Intended Use: units Application: Location classes Temperature Humidity Vibration Enclosure SLL Lloyds Register (LR) Type Approval 11/60002 Certificate: Environmental categories ENV1, ENV2, ENV3, and ENV5 Application: www.Emerson.com...

  • Page 46: Declaration Of Conformity

    Quick Start Guide November 2024 C5 Custody Transfer - Measurement Canada Accuracy Approval AG-0226; AG-0454; AG-0477 Certificate: 4.14  Declaration of Conformity www.Emerson.com...
  • Page 47 November 2024 Quick Start Guide www.Emerson.com...
  • Page 48 Quick Start Guide November 2024 www.Emerson.com...
  • Page 49 November 2024 Quick Start Guide www.Emerson.com...
  • Page 50 Maximum operating temperature: -58 °F (-50 °C) to +158 °F (+70 °C) The RFID tags shall never be exposed to high electromagnetic field strengths according to IEC 60079-14. Electrostatic charges shall be avoided. The tags shall never be used next to strong charge generating processes. www.Emerson.com...
  • Page 51 November 2024 Quick Start Guide  WARNING Additional warnings The plastic enclosure may present a potential electrostatic ignition hazard. RFID tag has limitations in ambient temperature and zone installation areas (Zones 1 & 21) as compared to the gauge. www.Emerson.com...
  • Page 52 2024 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
