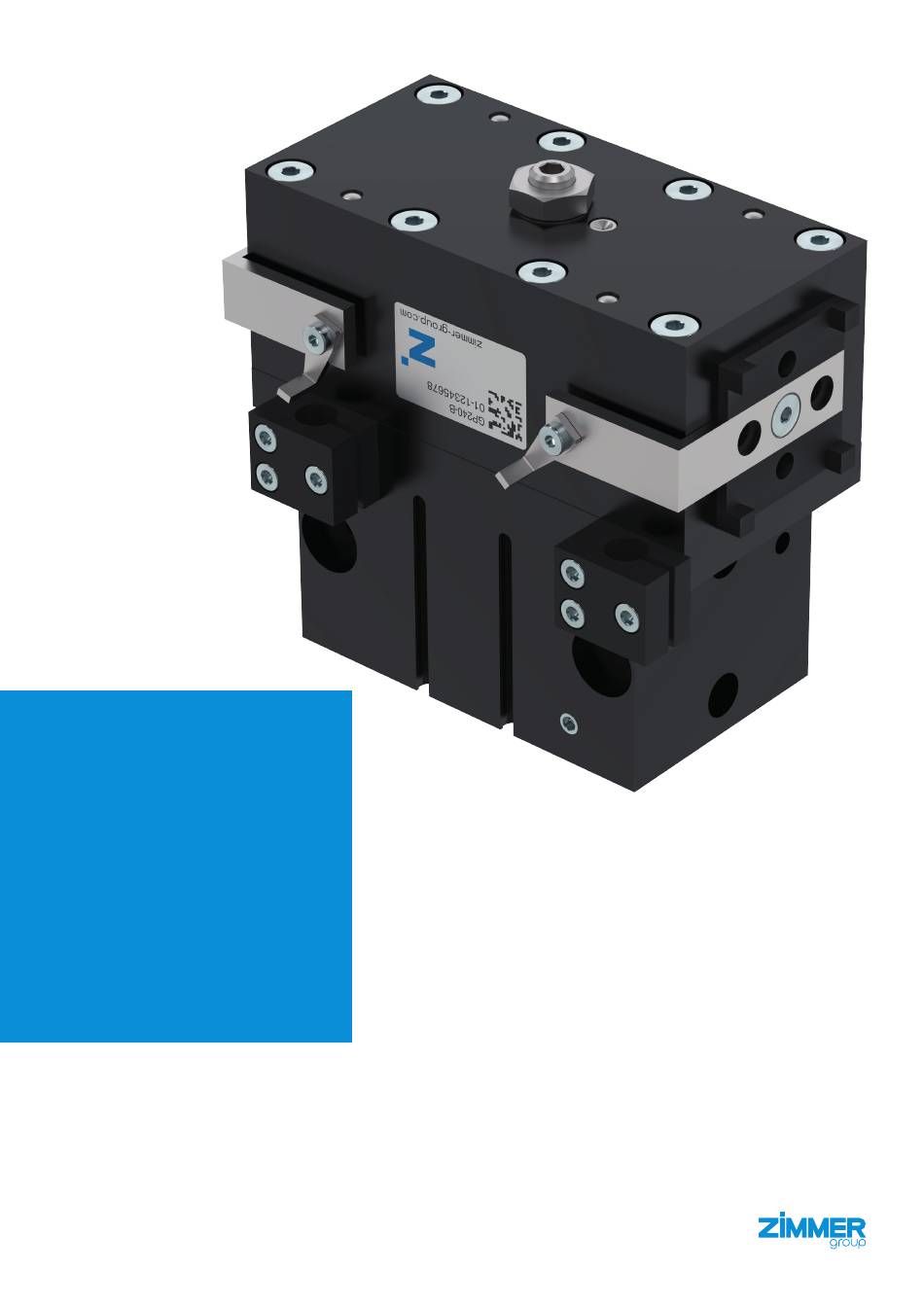

Zimmer GP200 Installation And Operating Instructions Manual

2-jaw parallel gripper, pneumatic

Advertisement

Quick Links

INSTALLATION AND
OPERATING
INSTRUCTIONS
2-jaw parallel gripper, pneumatic
GP200
DDOC00232
THE KNOW-HOW FACTORY
www.zimmer-group.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Zimmer GP200

  • Page 1 INSTALLATION AND OPERATING INSTRUCTIONS 2-jaw parallel gripper, pneumatic GP200 DDOC00232 THE KNOW-HOW FACTORY www.zimmer-group.com...
  • Page 2: Table Of Contents

    10.4 Installing the sensors ...........................................9 10.4.1 Adjusting the magnetic field sensors ...................................9 10.4.2 Setting the inductive sensors ....................................9 10.5 Installing accessories ........................................10 11 Maintenance ....................................10 12 Decommissioning/disposal ..............................10 13 Declaration of Incorporation ..............................11 Zimmer GmbH • Im Salmenkopf 5 •  77866 Rheinau, Germany •  +49 7844 9138 0 • www.zimmer-group.com...
  • Page 3: Supporting Documents

    Ö The warning symbols are assigned according to the type of danger. INFORMATION This category contains useful tips for handling the product efficiently. Failure to observe these tips will not result in damage to the product. This information does not include any information relevant to health or workplace safety. Zimmer GmbH • Im Salmenkopf 5 •  77866 Rheinau, Germany •  +49 7844 9138 0 • www.zimmer-group.com...
  • Page 4: Safety Notices

    • Use of the product under extreme conditions, such as aggressive fluids or abrasive dusts • Additional drilled holes or threads Ö Zimmer GmbH shall accept no liability for any damage caused by improper use. The operator bears sole responsibility. ► Make sure that the power supply is disconnected before you mount, adjust, modify, maintain or repair the product.
  • Page 5: Proper Use

    ► Operate the product only when it is in a technical condition that corresponds to the guaranteed parameters and operating conditions. Ö Zimmer GmbH shall accept no liability for any damage caused by improper use. The operator bears sole responsibility.
  • Page 6: Product Description

    8 Accessories/scope of delivery INFORMATION If any accessories not sold or authorized by Zimmer GmbH are used, the function of the product cannot be guaranteed. Zimmer GmbH accessories are specifically tailored to the individual products. ► For optional accessories and those included in the scope of delivery, refer to our website.
  • Page 7: Installation

    Strength class of the mounting screws ► Install the product on an appropriate mounting surface in accordance with the flatness specifications. ► Make sure that the mounting piece is sufficiently rigid. ► Ensure the cleanliness of the connection surfaces. ► Please note the permitted tightening torques of the mounting screws at www.zimmer-group.com/en/td. Zimmer GmbH • Im Salmenkopf 5 •  77866 Rheinau, Germany •  +49 7844 9138 0 • www.zimmer-group.com...
  • Page 8: Installing The Product

    If the pressure at the sealing air connection is too high, the lubrication at the guide is reduced too quickly. ► Apply a maximum pressure of 0.5 bar to the sealing air connection. ► Mount the screw fittings in the provided connections. Zimmer GmbH • Im Salmenkopf 5 •  77866 Rheinau, Germany •  +49 7844 9138 0 • www.zimmer-group.com...
  • Page 9: Setting The Jaw Stroke

    ► Slide the sensor into the terminal block. ► Position the sensor at an appropriate switching distance from the switch cam. ► Clamp the sensor. Switch cam Terminal block Inductive sensor Zimmer GmbH • Im Salmenkopf 5 •  77866 Rheinau, Germany •  +49 7844 9138 0 • www.zimmer-group.com...
  • Page 10: Installing Accessories

    ► Have maintenance work that requires disassembly of the product performed by customer service only. Ö Dismantling and reassembling the product without authorization may result in complications, as special installation equipment is required in some cases. Zimmer GmbH accepts no liability for any resulting malfunctions or damage. 12 Decommissioning/disposal INFORMATION When the product reaches the end of its operational phase, it can be completely disassembled and disposed of.
  • Page 11: Declaration Of Incorporation

    Machinery and an EC Declaration of Conformity has been drawn up in accordance with Annex II 1 A. Kurt Ross Rheinau, Germany, 2019-09-10 Authorized representative for the (Place and date of issuance) Martin Zimmer compilation of relevant technical (Legally binding signature) documents Managing Partner Zimmer GmbH • Im Salmenkopf 5 •  77866 Rheinau, Germany •  +49 7844 9138 0 • www.zimmer-group.com...
