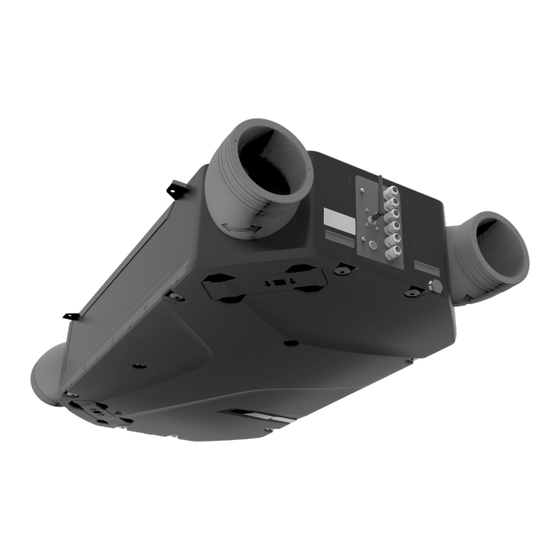

- Page 1 Air hAndling unit Reneo-Fit D 150 Reneo-Fit D 151 Reneo-Fit D 200 Reneo-Fit D 201 Reneo-Fit D 150-E Reneo-Fit D 151-E Reneo-Fit D 200-E Reneo-Fit D 201-E USER’S MANUAL...
-
Page 2: Table Of Contents
The manual contains information about purpose, technical details, operating principle, design, and installation of the Reneo-Fit D 150(-E)/151(-E)/200(-E)/201(-E) unit and all its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to... -
Page 3: Safety Requirements
150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de SAFETY REQUIREMENTS This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety. - Page 4 150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de All operations described in this manual must be performed by qualified personnel only, properly trained and qualified to install, make electrical connections and maintain ventilation units. Do not attempt to install the product, connect it to the mains, or perform maintenance yourself.
-
Page 5: Purpose
150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 6: Technical Data
150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 60 % without condensation. In cold, damp rooms, there is a possibility of freezing or condensation inside and outside the casing. - Page 7 150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de Reneo-Fit D 150(-E)/200(-E) 1246 1160 Reneo-Fit D 151(-E)/201(-E) 1246 1160...
-
Page 8: Design And Operating Principle
The condensate is collected in the drain pan and then removed outside through the drain pipes. The Reneo-Fit D 150-E/151-E and Reneo-Fit D 200-E/201-E units are equipped with an enthalpy heat exchanger, for which condensate drainage is not necessary. - Page 9 The frost protection mode is activated when the extract air temperature reaches +3 °C. After the temperature rises, the unit reverts to the previous operation mode. In case of a freezing danger, the Reneo-Fit D 150(-E)/151(-E)/200(-E)/201(-E) S14 unit supply fan turns off. After the temperature rises, the unit reverts to the previous operation mode.
-
Page 10: Mounting And Set-Up
150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de MOUNTING AND SET-UP Installing and connecting the FS2 humidity sensor and CO2 sensor The humidity and CO2 sensors are not included in the delivery set, they are ordered separately. Remove the heat exchanger. Install the sensors onto the appropriate fixation located on the internal walls of the unit's casing. - Page 11 150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de 1 – drainage hole, 2 – expansion anchor, 3 — screw. Unit mounting examples Reneo-Fit D 150/151 Reneo-Fit D 200/201 Diagram 1. Suspended mounting Diagram 2. Vertical wall mounting 1 — drainage hole...
- Page 12 150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de Mounting options according to diagrams 3-5 are possible for the Reneo-Fit D 150-E/151-E and Reneo-Fit D 200-E/201-E modifications. Reneo-Fit D 150-E/151-E Reneo-Fit D 200-E/201-E Diagram 3. Suspended mounting Diagram 4. Vertical wall mounting...
- Page 13 Fill up the U-trap with water before using it. The condensate drain system is designed for use in premises with ambient temperature above 0 °C! If the expected air temperatures are below 0 °C, the condensate drainage system must be equipped with heat insulation and pre-heating facilities. The Reneo-Fit D 150-E/151-E and Reneo-Fit D 200-E/201-E modifications do not require condensate drainage.
-
Page 14: Connection To Power Mains
150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de CONNECTION TO POWER MAINS ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE WARRANTY. The unit is designed for connection to power mains with the parameters specified in the technical data table. The connection must be made using durable, insulated and heat-resistant conductors (cables, wires). - Page 15 150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de EXTERNAL WIRING DIAGRAM FOR UNITS WITH S14 AUTOMATION 2.5A 12 13 14 15 16 17 SM-L SM-N PK1* SM1* SM2* CO2* – ELECTRIC SHOCK HAZARD! Designation Name Wire type Wire Note External control panel 4 x 0.25 mm²...
- Page 16 150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de EXTERNAL WIRING DIAGRAM FOR UNITS WITH S21 AUTOMATION L N PE Com Out1 Com Out1 12 13 9 10 14 15 16 17 In 90 60 In 90 60 EVH* ENH* PK1* Boost* TE_H RS485 NO C NO C...
-
Page 17: Technical Maintenance
150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de TECHNICAL MAINTENANCE Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations: 1. Filter maintenance. Clogged filters increase air resistance in the system and reduce supply air volume. -
Page 18: Troubleshooting
150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de 6. Control unit maintenance (as required). The control unit is located inside of the unit casing. For accessing the control unit remove the fixing screws on the panel and remove the control unit lid. TROUBLESHOOTING Problem... -
Page 19: Manufacturer's Warranty
150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 20 150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de...
- Page 21 150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de...
- Page 22 150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de...
-
Page 23: Certificate Of Acceptance
150(-E)/151(-E)/200(-E)/201(-E) www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 24 www.blaubergventilatoren.de B281EN-01...
