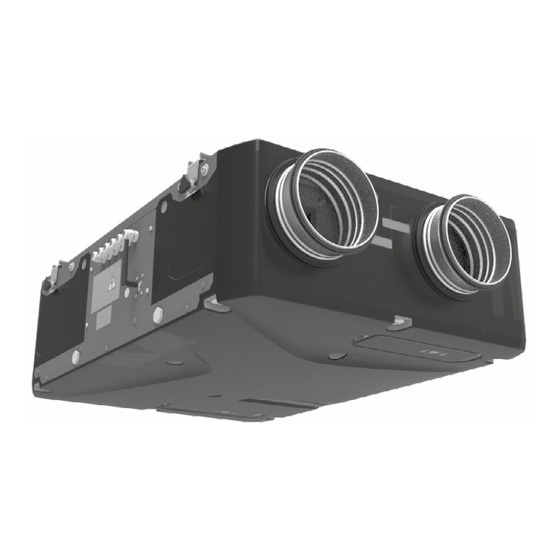

- Page 1 Air hAndling unit Reneo D 180 Reneo D 181 Reneo D 240 Reneo D 241 USER’S MANUAL...
-
Page 2: Table Of Contents
The manual contains information about purpose, technical details, operating principle, design, and installation of the Reneo D 180/181/240/241 unit and all its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to... -
Page 3: Safety Requirements
180/181/240/241 www.blaubergventilatoren.de SAFETY REQUIREMENTS This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety. - Page 4 180/181/240/241 www.blaubergventilatoren.de All operations described in this manual must be performed by qualified personnel only, properly trained and qualified to install, make electrical connections and maintain ventilation units. Do not attempt to install the product, connect it to the mains, or perform maintenance yourself.
-
Page 5: Purpose
180/181/240/241 www.blaubergventilatoren.de PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 6: Technical Data
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. Technical data MODEL Reneo D 180/181 Reneo D 180/181-E Reneo D 240/241 Reneo D 240/241-E Power supply voltage [V/50 Hz] Max. power [W] Maximum unit current [A] 0.49... - Page 7 180/181/240/241 www.blaubergventilatoren.de Reneo D 180/240 1060 Reneo D 181/241 1060...
-
Page 8: Design And Operating Principle
The condensate is collected in the drain pan and then removed outside through the drain pipes. The Reneo D 180/181-E and Reneo D 240/241-E units are equipped with an enthalpy heat exchanger, for which condensate drainage is not necessary. - Page 9 The frost protection mode is activated when the extract air temperature reaches +3 °С. After the temperature rises, the unit reverts to the previous operation mode. In case of a freezing danger, the Reneo D 180/181/240/241 S14 unit supply fan turns off. After the temperature rises, the unit reverts to the previous operation mode.
-
Page 10: Mounting And Set-Up
180/181/240/241 www.blaubergventilatoren.de MOUNTING AND SET-UP Installing and connecting the FS2 humidity sensor and CO sensor The humidity and CO sensors are not included in the delivery set, they are ordered separately. Install the sensors onto the appropriate fixation located on the walls of the unit’s casing. - Page 11 Diagram 2. Floor mounting For floor mounting, install Reneo D 180/181 and Reneo D 240/241 units on the pre-mounted floor supports (minimum 150 mm high) to ensure sufficient access for the drain pipe connection, access to the U-trap and for condensate draining system installation.
- Page 12 Diagram 4. Horizontal wall surface mounting When mounting Reneo D 180/181 and Reneo D 240/241 on the wall surface, ensure the unit is tilted 2-3° for better condensate drainage and leakage prevention along the joint attaching the service panel to the casing.
- Page 13 180/181/240/241 www.blaubergventilatoren.de Reneo D 180/181-E and Reneo D 240/241-E unit fixing examples A – exhaust air, B – intake air, C – supply air, D – extract air Diagram 5. Vertical wall surface mounting A – exhaust air, B – intake air, C – supply air, D – extract air...
- Page 14 The condensate drain system is designed for use in premises with ambient temperature above 0 °C! If the expected air temperatures are below 0 °C, the condensate drainage system must be equipped with heat insulation and pre-heating facilities. Reneo D 180/181-E and Reneo D 240/241-E modifications do not require condensate drainage.
-
Page 15: Connection To Power Mains
180/181/240/241 www.blaubergventilatoren.de CONNECTION TO POWER MAINS ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE WARRANTY. The unit is designed for connection to power mains with the parameters specified in the technical data table. The connection must be made using durable, insulated and heat-resistant conductors (cables, wires). - Page 16 180/181/240/241 www.blaubergventilatoren.de EXTERNAL WIRING DIAGRAM FOR UNITS WITH S14 CONTROL PANEL 2.5A 12 13 14 15 16 17 SM-L SM-N Р1 PK1* SM1* SM2* CO2* – ELECTRIC SHOCK HAZARD! Designation Name Wire type Wire Note External control panel 4 x 0.25 mm²...
- Page 17 180/181/240/241 www.blaubergventilatoren.de EXTERNAL WIRING DIAGRAM FOR UNITS WITH S21 AUTOMATION L N PE NO C Out1 NO In1 Out1 NO In1 6 7 8 9 10 12 13 14 15 16 17 18 19 20 21 In 90 60...
-
Page 18: Technical Maintenance
180/181/240/241 www.blaubergventilatoren.de TECHNICAL MAINTENANCE Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations: 1. Filter maintenance. Clogged filters increase air resistance in the system and reduce supply air volume. -
Page 19: Troubleshooting
180/181/240/241 www.blaubergventilatoren.de 3. Fan maintenance (once per year). Even in case of regular maintenance of the filters, some dust may accumulate inside the fans and reduce the fan performance and supply air flow. Clean the fans with a soft cloth, brush, or using compressed air. Do not use water, aggressive solvents, or sharp objects as they may damage the impeller. -
Page 20: Storage And Transportation Regulations
180/181/240/241 www.blaubergventilatoren.de STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 °C to + 40 °C and relative humidity up to 70 %. -
Page 21: Manufacturer's Warranty
180/181/240/241 www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 22 180/181/240/241 www.blaubergventilatoren.de...
-
Page 23: Certificate Of Acceptance
180/181/240/241 www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 24 www.blaubergventilatoren.de B278EN-01...
