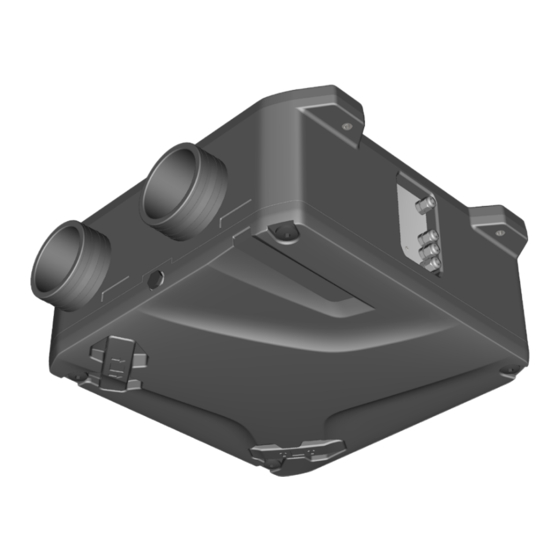

- Page 1 Air hAndling unit reneo-Fit d 100 S14 reneo-Fit d 100-E S14 USER'S MANUAL...
-
Page 2: Table Of Contents
reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................5 Designation key ....................................5 Technical data ....................................6 Design and operating principle ............................8 Mounting and set-up .................................. 10 Connection to power mains ..............................14 Technical maintenance ................................ -
Page 3: Safety Requirements
reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de SAFETY REQUIREMENTS This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit. - Page 4 reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de All operations described in this manual must be performed by qualified personnel only, properly trained and qualified to install, make electrical connections and maintain ventilation units. Do not attempt to install the product, connect it to the mains, or perform maintenance yourself. This is unsafe and impossible without special knowledge.
-
Page 5: Purpose
reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 6: Technical Data
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. TECHNICAL DATA Model Reneo-Fit D 100 S14 Reneo-Fit D 100-E S14 Power supply voltage [V 50/60 Hz] 1 ~ 230 Max. - Page 7 reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de Overall and connecting dimensions Ø 100* Ø 125* *The unit can be connected to a 100 mm or 125 mm air duct system. 100 mm air ducts are inserted into the connecting pipes, while 125 mm air ducts are put over the connecting pipes.
-
Page 8: Design And Operating Principle
reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de DESIGN AND OPERATING PRINCIPLE The unit is housed in a sound-insulated casing (item 1). The connecting pipes of the unit form a single structure with the unit casing. The function of the connecting pipes (item 7) is indicated on the stickers on the unit casing. The supply fan (item 10), exhaust fan (item 11) and heat exchanger (item 12) are also located inside the unit casing. - Page 9 reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de VIEW FROM THE SERVICE SIDE WITH THE COVER REMOVED Right-handed modi cation Intake air Extract air Exhaust air Supply air Left-handed modi cation Supply air Exhaust air Extract air Intake air...
-
Page 10: Mounting And Set-Up
reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de MOUNTING AND SET-UP The units are fitted with connecting pipes for the connection of circular air ducts. 100 mm air ducts are inserted into the connecting pipes, while 125 mm air ducts are put over the connecting pipes. The unit is mounted in the ventilation system in accordance with the function of the connecting pipes. - Page 11 reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de CHANGE OF THE UNIT MODIFICATION In some cases, it may be necessary to reconfigure the unit to ensure a more efficient placement of equipment and communications. To do this, it is necessary to rearrange the temperature and humidity sensors inside the casing as shown in the figure in the section "Unit design and operating principle"...
- Page 12 reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de 3. Mark the cable wires connected to the humidity sensor. Remember, photograph or write down the connection points of cables. 4. Pull the cable out to the opposite side of the unit casing. Remove it from the channel.
- Page 13 reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de Diagram of connecting the motor control cables to the controller board after moving Motor control cable M2 Motor control cable M1 Controller board A1.1 Condensate drainage Condensate drainage is required in systems with heat recovery. WARNING! The drain pipe on the outdoor air supply side is intended for the removal of condensate, which forms during cooling of the supply air in the heat exchanger when the unit operates in a warm, humid climate conditions.
-
Page 14: Connection To Power Mains
reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de CONNECTION TO POWER MAINS The connection must be made using durable, insulated and heat-resistant conductors (cables, wires). The external power input must be equipped with an automatic circuit breaker built into the stationary wiring to open the circuit in the event of overload or short-circuit. -
Page 15: Technical Maintenance
reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de TECHNICAL MAINTENANCE Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations: 1. Filter maintenance (3-4 times per year). Dirty filters increase air flow resistance, which leads to a decrease in the supply of supply air to the room and creates preconditions for occurrence of faults. - Page 16 reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de 3. Fan maintenance (once per year). Even in case of regular maintenance of the filters, some dust may accumulate inside the fans and reduce the fan performance and supply air flow. Clean the fans with a soft cloth, brush, or using compressed air. Do not use water, aggressive solvents, or sharp objects as they may damage the impeller.
-
Page 17: Troubleshooting
reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line is connected No power supply. correctly, otherwise troubleshoot a connection error. Disconnect the fan from power supply. Jammed motor. Troubleshoot the motor jamming. The unit does not start. Restart the unit. -
Page 18: Manufacturer's Warranty
reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 19: Certificate Of Acceptance
reneo-Fit d 100(-E) S14 www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 20 www.blaubergventilatoren.de B224EN-01...
