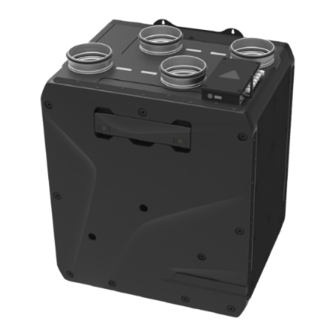

- Page 1 Air hAndling unit Reneo S 350 Reneo S 351 Reneo S 550 Reneo SE 350 Reneo SE 351 Reneo SE 550 Reneo S 350-E Reneo S 351-E Reneo S 550-E Reneo SE 350-E Reneo SE 351-E Reneo SE 550-E USER'S MANUAL...
-
Page 2: Table Of Contents
reneo S(E) 350/351/550 www.blaubergventilatoren.de CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................5 Designation key ....................................5 Technical data ....................................6 Design and operating principle ............................10 Mounting and set-up .................................. 12 Connection to power mains ..............................16 Technical maintenance ................................ -
Page 3: Safety Requirements
reneo S(E) 350/351/550 www.blaubergventilatoren.de SAFETY REQUIREMENTS This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit. - Page 4 reneo S(E) 350/351/550 www.blaubergventilatoren.de All operations described in this manual must be performed by qualified personnel only, properly trained and qualified to install, make electrical connections and maintain ventilation units. Do not attempt to install the product, connect it to the mains, or perform maintenance yourself. This is unsafe and impossible without special knowledge.
-
Page 5: Purpose
reneo S(E) 350/351/550 www.blaubergventilatoren.de PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 6: Technical Data
reneo S(E) 350/351/550 www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 60 % without condensation. In cold, damp rooms, there is a possibility of freezing or condensation inside and outside the casing. In order to prevent condensation on the internal walls of the unit, it is necessary that the surface temperature of the casing is 2-3 °C above the dew point temperature of the transported air. - Page 7 S(E) 350/351/550 www.blaubergventilatoren.de Technical data Reneo S 550 Reneo S 550-E Reneo SE 550 Reneo SE 550-E Model Supply voltage [V/50 (60) Hz] Maximum unit power without the heater [W] Heating capacity [W] 1400 1400 Maximum unit power [W]...
- Page 8 reneo S(E) 350/351/550 www.blaubergventilatoren.de Reneo S(E) 350 Ø 160x4 Reneo S(E) 351 Ø 160x4...
- Page 9 reneo S(E) 350/351/550 www.blaubergventilatoren.de Reneo S(E) 550 Ø 200x4 Ø 6x5 Ø 10x5 Ø 20 Ø 200x4 Ø 6x5 Ø 10x5 Ø 20...
-
Page 10: Design And Operating Principle
The condensate is collected in the drain pan and then removed outside through the drain pipes. The Reneo S 350-E/351-E, Reneo SE 350-E/351-E, Reneo S 550-E, Reneo SE 550-E units are equipped with an enthalpy heat exchanger, which does not require condensate drainage. - Page 11 (if the unit is equipped with an inline preheater Reneo S 350/351 S21, Reneo S 350-E/351-E S21, Reneo S 550 S21, Reneo S 550-E S21). Mode selection and settings are described in the S21 control system user’s manual.
-
Page 12: Mounting And Set-Up
reneo S(E) 350/351/550 www.blaubergventilatoren.de MOUNTING AND SET-UP Installing and connecting the humidity sensor and CO sensor The humidity s CO2 sensors are not included in the delivery set, they are ordered separately. Install the sensors onto the appropriate fixation located on the walls of the unit’s casing. Connect the sensors to the appropriate connectors Humidity sensor Carbon dioxide sensor (CO2) - Page 13 reneo S(E) 350/351/550 www.blaubergventilatoren.de Unit design To ensure comfortable installation and provide space for accessing the unit, left and right design types of the unit are designed. Reneo S(E) 350/351/550 L Reneo S(E) 350/351/550 R A – exhaust air, B – intake air, C – supply air, D – extract air Minimum distances to surfaces 800 mm The surface for unit mounting must be smooth.
- Page 14 reneo S(E) 350/351/550 www.blaubergventilatoren.de Unit wall surface mounting Use dowels and screws (not included in the delivery set) to secure the unit on the wall. Insert the dowels into the wall. Tighten the screws. Hang the unit and use the holes in the mounting brackets in the bottom to secure it. Unit floor mounting Place the unit on the pre-mounted floor supports (minimum 150 mm high) to ensure sufficient access for the drain pipe connection, access to the U-trap and for condensate drainage system installation.
- Page 15 Condensate drainage Reneo S 350/351, Reneo S 550 heat recovery units require condensate drainage, which occurs by means of the supplied drain pipe. To install the drain pipe, remove the screws and the front panel on the service side of the unit. Remove the heat exchanger cover and take the heat exchanger out.
-
Page 16: Connection To Power Mains
reneo S(E) 350/351/550 www.blaubergventilatoren.de CONNECTION TO POWER MAINS ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE WARRANTY. The unit is designed for connection to power mains with the parameters specified in the "Technical data" section. The unit must be connected to power mains using durable, insulated and heat-resistant conductors (cables, wires). - Page 17 reneo S(E) 350/351/550 www.blaubergventilatoren.de External wiring diagram for units with S14 control panel 12 13 14 15 16 17 +U Rx Tx GND C NO PK SM-L SM-N Р1 PK1* SM1* SM2* CO2* – Electric shock hazard! Designation Name Type of contact Cable Note External control panel...
-
Page 18: Technical Maintenance
reneo S(E) 350/351/550 www.blaubergventilatoren.de TECHNICAL MAINTENANCE WARNING! All product maintenance work must be performed service specialists. Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations: 1. Filter maintenance. Clogged filters increase air resistance in the system and reduce supply air volume. -
Page 19: Troubleshooting
The drainage system is soiled, damaged, or arranged Enave Reneo S 350/351, system slope, the drain trap and make sure the drainage incorrectly. Reneo S 550) units). system is protected from freezing. STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 °C to + 40 °C and relative humidity up to 70 %. -
Page 20: Manufacturer's Warranty
reneo S(E) 350/351/550 www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 21 reneo S(E) 350/351/550 www.blaubergventilatoren.de...
- Page 22 reneo S(E) 350/351/550 www.blaubergventilatoren.de...
-
Page 23: Certificate Of Acceptance
reneo S(E) 350/351/550 www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 24 www.blaubergventilatoren.de B279EN-02...
