ADVANCECUT80

PLASMA CUTTER

OPERATING INSTRUCTIONS

IMPORTANT!

Read these Operating Instructions Completely before attempting to use this machine. Save this manual and keep

it handy for quick reference. Pay particular attention to the safety instructions we have provided for your

protection. Contact your distributor if you do not fully understand anything in this manual.

DIRECT

SPIKE/

400V 50HZ

PILOT

CNC

INTELLIGENT

CORROSION

IGBT INVERTER

CURRENT

GENERATOR

CUTTING

PROTECTION

RESISTANT

3 PHASE

ARC START

TECHNOLOGY

SAFE

SYSTEM

www.strata.co.nz

Table of Contents

Troubleshooting

Need help?

Do you have a question about the ADVANCECUT80 and is the answer not in the manual?

Questions and answers

Summary of Contents for Strata ADVANCECUT80

Page 1 ADVANCECUT80 PLASMA CUTTER OPERATING INSTRUCTIONS IMPORTANT! Read these Operating Instructions Completely before attempting to use this machine. Save this manual and keep it handy for quick reference. Pay particular attention to the safety instructions we have provided for your protection. Contact your distributor if you do not fully understand anything in this manual.
Page 2: Table Of Contents
ADVANCECUT80 CONTENTS Know your Machine................4 Installation & Operation................7 Plasma Cutting Guide.................11 Maintenance & Troubleshooting..........14 Safety......................18 Warranty...................... 23 www.strata.co.nz...

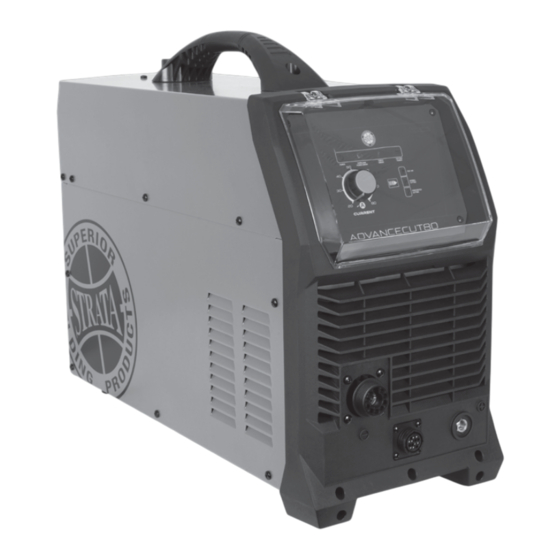

Page 3 THREE-PHASE 80A Three-Phase Inverter Plasma Cutter Industrial Duty Strata TH-125 Plasma Torch - Superior cutting performance and consumable life Automatic Pilot Arc Control System - Increased cutting speed and capability, especially for discontinuous cutting CNC Interface Connection Non HF Arc Starting System - Increased reliability and low EMF pollution Intelligent Plasma Torch Protection System - Protects plasma torch from damage from incorrect air pressure, consumables not in place, excessive pilot arc use.
Page 4 0.8mm Cutting Tip, 20 - 30A (XT4000) WT-TWG20 TIG Welding Gloves - Pair XT4005-09 0.9mm Cutting Tip, 30 - 40A (XT4000) Strata Integrated Storage Trolley XT4005-08L 0.8mm Extended Cutting Tip, 20 - 30A (XT4000) XT4005-09L 0.9mm Extended Cutting Tip, 30 - 40A (XT4000) Pull out drawer 25.85kg, 920 x 420 x 450mm (L x W x H)
Page 5: Know Your Machine
ADVANCECUT80 Know your Machine Layout for the front and rear panel Front View (1) Cutting Current Control Knob. (2) Power Indicator: Lights when input power connected and machine switched on. (3) Alarm Indicator. * (4) Torch System Error Indicator. * (5) Cutting Power Indicator: Lights when cutting power circuit activated .
Page 6 It is also very important to only air supply should be checked for issues. use genuine Strata consumables and parts for the Pilot Arc System TH-125 torch. They are engineered to suit the machine...
Page 7: Installation & Operation
ADVANCECUT80 Installation & Operation Basic Operation Electrical Connection 1) Connect the earth cable quick connector to the The AdvanceCut series is designed to operate on earth connection socket (9) Connect the earth a 3 phase 400V AC power supply. When the power clamp to the work piece.
Page 8: Cutting Operation
ADVANCECUT80 Cutting Operation After turning the Power Switch to the ON position and making control and air pressure adjustments, proceed as follows: 1) Hold the tip of the Torch within 3-4mm the work piece, at about 15- 30° angle to avoid da- maging the tip.
Page 9 ADVANCECUT80 Note: • The alarm lamp on when cutting, it is needed to loose the switch of the torch until the alarm release, then press on the switch to start cutting again. • In the automatic gas test and examine, press on the cutting torch, there will no reﬂection.
Page 10 ADVANCECUT80 Note: The cover on the machine interface receptacle Arc Signal prevents dust and moisture from damaging the Torch Switch Signal receptacle when not in use. This cover should be replaced if damaged or lost. Installation of the machine interface cable must be performed by a qualiﬁed service technician.
Page 11: Plasma Cutting Guide
ADVANCECUT80 Note: the table below for the shift and scale selection scale selection 20:1 30:1 40:1 50:1 dial number Plasma Cutting Guide Cutting Guide E ect of Cutting Speed Piercing Technique www.strata.co.nz...
Page 12: Operating Techniques
ADVANCECUT80 Note: Note: Keep moving while cutting. Cut at a steady speed The speeds given here are typical for best quality without pausing. Maintain the cutting speed so cuts. Your actual speeds may vary depending on that the arc lag is 10° to 20° behind the travel material composition, surface condition, operator direction.
Page 13 ADVANCECUT80 6. Quality Cuts - Dross (slag) is the excess material that spatters and builds up on the underside of the work-piece as you cut. Dross occurs when the operating procedure and technique is less than optimal. It will require practice and experience to obtain cuts without dross.
Page 14: Troubleshooting
ADVANCECUT80 Troubleshooting Trouble Possible Reason Suggested Remedy 1.Turn power switch to the ON position 1.Power switch OFF 2. Check air supply (60–80 PSI, 3.5cfm Torch will not come 2.Air supply is not of sufficient volume or required) pressure 3. Attach to work piece or to steel table with 3.
Page 15: Operation Environment
ADVANCECUT80 Operation environment ▲ Height above sea level ≤1000 M ▲ Operation temperature range -10〜+40°C ▲ Air relative humidity is below 90 %( 20°C) ▲ Preferable site the machine some angles above the ﬂoor level, the maximum angle does not exceed 15°C ▲...
Page 16: Maintenance & Troubleshooting
ADVANCECUT80 Maintenance & Troubleshooting Cutting gun maintenance Warning : 1. Check the consumable parts for damage, if worn, replace it. 2. Turn oﬀ the power source before check or remove cutting gun parts Note: When operating the torch in a normal condition, a small amount of gas vents through the gap between the shield cup and the torch handle, Do not attempt to over tighten the shield cup as irreparable damage to internal components may result.
Page 17: Troubleshooting Principle
ADVANCECUT80 Troubleshooting Principle D. Low cutting output 1. Incorrect setting of CURRENT (A) control, check WARNING and adjust to proper setting. 2. Faulty components in unit, return for repair or There are extremely dangerous voltage and have qualiﬁed technician repair.
Page 18: Safety
ADVANCECUT80 Safety Welding and cutting equipment can be dangerous Touching live electrical parts can cause fatal to both the operator and people in or near the shocks or severe burns. The electrode and work surrounding working area, if the equipment is not circuit is electrically live whenever the output is correctly operated.
Page 19 ADVANCECUT80 FUMES AND GASES CAN BE • Use a shield with the proper ﬁlter and cover plates to protect your eyes from sparks and the rays of DANGEROUS. the arc when welding or observing open arc welding. • Use suitable clothing made from durable ﬂame- resistant material to protect your skin and that of your coworkers from the arc rays.
Page 20 ADVANCECUT80 WELDING SPARKS can cause ﬁre or Rotating parts may be dangerous. explosion. • Use only compressed gas cylinders containing Welding on closed containers, such as tanks, drums, the correct shielding gas for the process used or pipes, can cause them to explode. Flying sparks...
Page 21: Hot Parts
ADVANCECUT80 Gas build up. • To protect your hearing from loud noise, wear protective ear plugs and/or ear muﬀs. Protect others in the workplace. • Noise levels should be measured to be sure the decibels (sound) do not exceed safe levels.
Page 22 ADVANCECUT80 EMC measure In the special situation, The speciﬁed area may be aﬀected, the standard of radiation limit value has been complied with (eg: The device, which is easy eﬀected by electromagnetism, is used at the installation location, or there is radio or TV near the installation location).
Page 23: Warranty
Registered warranty period for the AdvanceCut80: Warranty does not cover any incidental, indirect or conse quential loss, damage or expense that may result from any Commercial Use: 48 Months defect, failure or malfunction of a product.
Page 24 ADVANCECUT80 www.strata.co.nz...
Page 25 ADVANCECUT80 www.strata.co.nz...
Page 26 Congratulations on your new STRATA product. We are proud to have you as our customer and will strive to provide you with the best service and reliability in the industry. This product is backed by our extensive warranty. To locate your nearest distributor or service agency visit www.strata.co.nz, or email us at...
