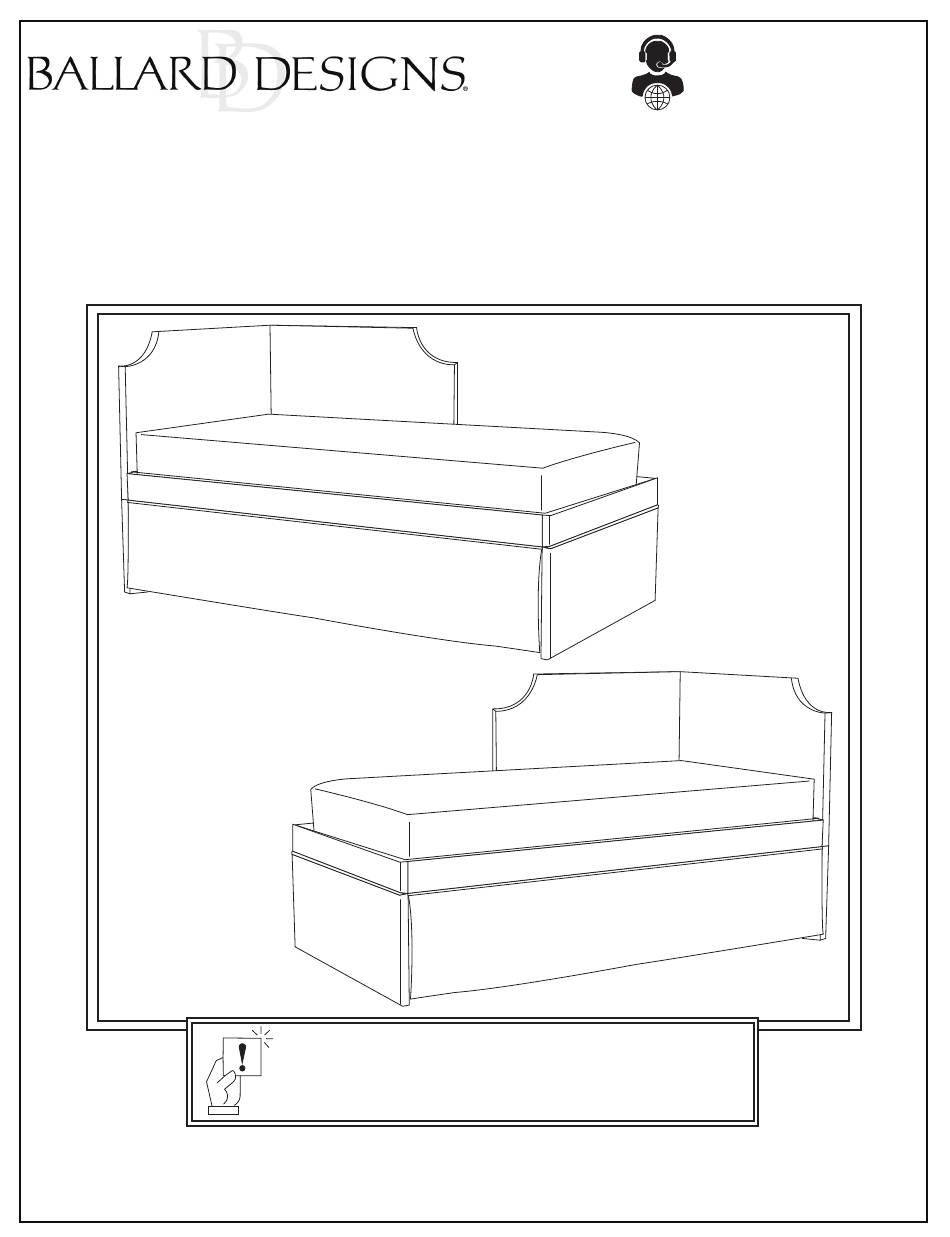

PRODUCT NAME: Isabella Left & Right Corner Daybed
ITEM NUMBER: UM004 & UM005
ASSEMBLED DIMENSIONS: 44 1/2"H x 80"W X 41 1/2"D
PRODUCTS NOT INTENDED
FOR COMMERCIAL USE
UPDATED: 9-14-2020
Prevent accidentally discarding small parts or
hardware. Retain all carton contents until assembly
and installation are complete.
Customer Service: 800-367-2810
Online: www.ballarddesigns.com
MADE IN USA
Page 1 of 4
Advertisement
Related Manuals for Ballard Designs Isabella UM004
Summary of Contents for Ballard Designs Isabella UM004
- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Isabella Left & Right Corner Daybed ITEM NUMBER: UM004 & UM005 ASSEMBLED DIMENSIONS: 44 1/2”H x 80”W X 41 1/2”D Prevent accidentally discarding small parts or hardware. Retain all carton contents until assembly and installation are complete.
- Page 2 Assemble in location for intended use. TOOLS REQUIRED: Ltr. Qty. Hardware Included Phillips Screwdriver -2 Person assembly. Screws Ltr. Qty. Components Back (B) Front (C) Right Arm (E) Left Arm (D) Spring Frame (F) Customer Service: 800-367-2810 Online: www.ballarddesigns.com Page 2 of 4...
- Page 3 Assemble in location for intended use. STEP 1: Attach the Left Arm (D) to the Back (B). Be sure the hook is fully engaged before continuing with the assembly. STEP 2: First, attach the Right Arm (E) to the Back (B). Then, attach the Front Rail (C) to the Left (D) and Right Arm (E).
- Page 4 Assemble in location for intended use. STEP 3: Place the Spring Frame (F) onto the ledges on inside of the Back (B) and Front Rail (C). Then using a screwdriver and the Screws (A), attach the Spring Frame (F) to the Back (B) and Front Rail (C) in all 4 corners.
