Customer Service: 800-367-2810
Online: www.ballarddesigns.com

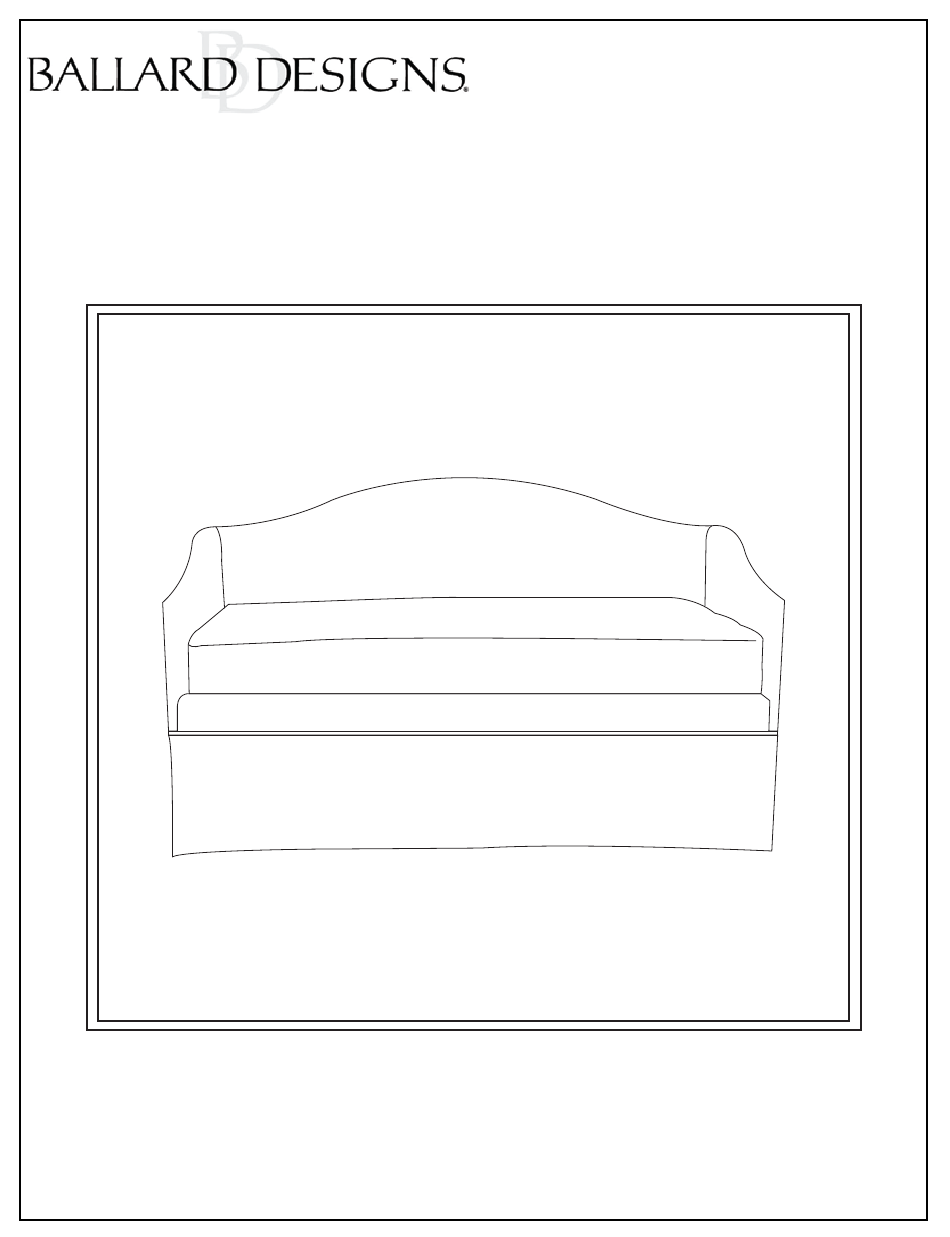

PRODUCT NAME: Camden Daybed with & without Trundle
ITEM NUMBER: UM013; UM014
DIMENSIONS OF ITEM ASSEMBLED: 47 1/2"H x 79 1/4"W X 41 3/4"D
PRODUCTS ARE NOT INTENDED
MADE IN USA
FOR COMMERCIAL USE.
Page 1 of 4
Advertisement
Related Manuals for Ballard Designs UM013
Summary of Contents for Ballard Designs UM013
- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Camden Daybed with & without Trundle ITEM NUMBER: UM013; UM014 DIMENSIONS OF ITEM ASSEMBLED: 47 1/2”H x 79 1/4”W X 41 3/4”D PRODUCTS ARE NOT INTENDED MADE IN USA FOR COMMERCIAL USE. Page 1 of 4...
- Page 2 NOTE: It is best to put this bed together in the space where you will use it. TOOLS NEEDED: Ltr. Qty. Hardware Included -2 Person assembly. -Screwdriver required. Screws Ltr. Qty. Components Back (B) Front (C) Right Arm (E) Left Arm (D) Spring Frame (F) Customer Service: 800-367-2810 Page 2 of 4...
- Page 3 NOTE: It is best to put this bed together in the space where you will use it. STEP 1: Attach the Left Arm (D) and then the Right Arm (E) to the Back (B). Be sure the hook is fully engaged before continuing with the assembly.
- Page 4 NOTE: It is best to put this bed together in the space where you will use it. STEP 3: Place the Spring Frame (F) onto the ledges on inside of the Back (B) and Front Rail (C). Then using a screwdriver and the Screws (A), attach the Spring Frame (F) to the Back (B) and Front Rail (C) in all 4 corners.
