Manual | EN
CX2500-1061
Power over Ethernet module for CX20xx, CX52x0, CX53x0, CX56x0
2024-09-17 | Version: 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CX2500-1061 and is the answer not in the manual?

Questions and answers

Summary of Contents for Beckhoff CX2500-1061

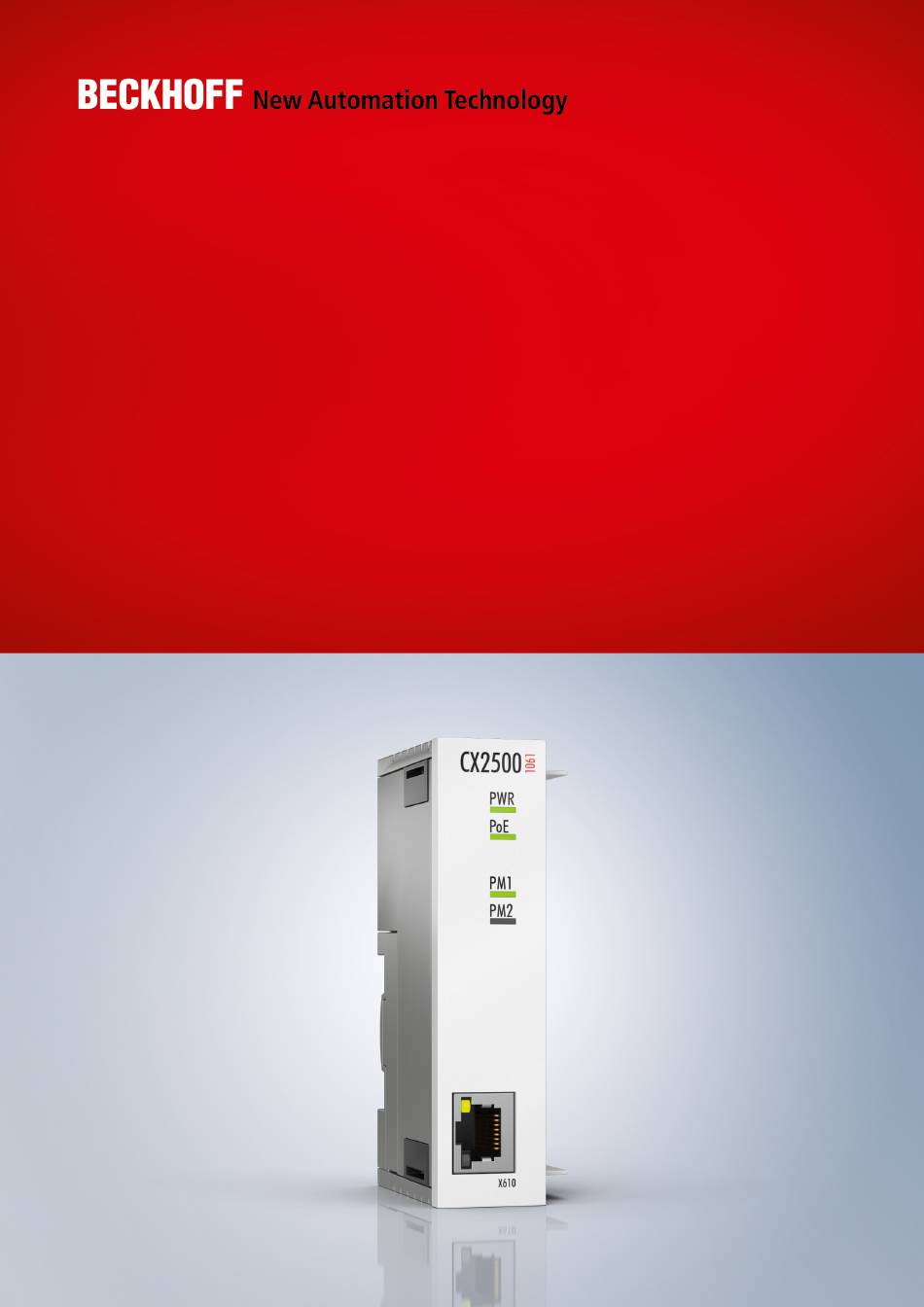

  • Page 1 Manual | EN CX2500-1061 Power over Ethernet module for CX20xx, CX52x0, CX53x0, CX56x0 2024-09-17 | Version: 1.0...
  • Page 3: Table Of Contents

    5 Error handling and diagnostics ...................... 14 Diagnostic LEDs.......................... 14 Faults .............................. 15 6 Technical data ............................ 16 7 Appendix .............................. 17 Accessories .............................  17 Certifications ...........................  18 Support and Service........................ 19 List of tables ............................ 20 List of figures............................ 21 CX2500-1061 Version: 1.0...
  • Page 4 Table of contents Version: 1.0 CX2500-1061...
  • Page 5: Notes On The Documentation

    EP1590927, EP1789857, EP1456722, EP2137893, DE102015105702 and similar applications and registrations in several other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. The distribution and reproduction of this document, as well as the use and communication of its contents without express authorization, are prohibited.
  • Page 6: Representation And Structure Of Warnings

    There is a potential hazard to the environment and equipment. Notes showing further information or tips: This notice provides important information that will be of assistance in dealing with the product or software. There is no immediate danger to product, people or environment. Version: 1.0 CX2500-1061...
  • Page 7: Documentation Issue Status

    Notes on the documentation Documentation issue status Version Changes First version CX2500-1061 Version: 1.0...
  • Page 8: For Your Safety

    Beckhoff Automation GmbH & Co. In addition, the following actions are excluded from the liability of Beckhoff Automation GmbH & Co. KG: • Failure to comply with this documentation.
  • Page 9: Notes On Information Security

    • The sensitivity of a PC against malicious software increases with the number of installed and active software. • Uninstall or disable unnecessary software. Further information on the safe handling of networks and software can be found in the Beckhoff Information System: http://infosys.beckhoff.com...
  • Page 10: Product Overview

    Product overview Product overview The CX2500-1061 Power over Ethernet module supports devices with PoE Class 0, 1, 2, 3 and 4 in accordance with the PoE standard IEEE 802.3af-2003. The maximum PoE power output is 15.4 W. The PoE supply voltage is generated internally, no external power supply is necessary. In the case of an overload of the CX2500-1061, the PoE supply shuts down for two seconds, then restarts.
  • Page 11: Ethernet Interface (X610)

    Product overview Ethernet interface (X610) The system module CX2500-1061 supplies PoE-capable devices with power via the Ethernet interface (X610). The required voltage is generated internally in the system module CX2500-1061. An external power supply is not required. Fig. 2: Ethernet interface (X610) Devices that are not PoE-capable can also be connected to the Ethernet interface (X610).
  • Page 12: Mounting

    Mounting Mounting Fig. 3: CX2500-1061 extension module, dimensions Plug in extension module The extension module is connected to the left-hand side of the basic CPU module via a multi-pin connector. A maximum of four CX2500-xxxx modules can be plugged into the CX20xx series in any order, and one module can be plugged into the CX52x0, CX53x0 or CX56x0 series.
  • Page 13: Installing The Housing Locking Clips

    2. The locking clips are inserted on the top and bottom. ð Once all extension modules are locked, the whole assembly can be installed on the DIN rail. To remove, the locking clips are lifted with a screwdriver and pulled out of the housing. CX2500-1061 Version: 1.0...
  • Page 14: Error Handling And Diagnostics

    The LED flashes during data traffic. SPEED Indicates the speed of the green At speeds of 10 or 100 Mbit/s, the LED connection. lights up green. In 1000 Mbit/s (Gigabit) mode, the LED lights up red. Version: 1.0 CX2500-1061...
  • Page 15: Faults

    5. TwinCAT version used 6. Any components / software used The quickest response will come from support / service in your country. Therefore please contact your regional contact. For details please refer to our website at https://www.beckhoff.com or ask your distribution partner. CX2500-1061...
  • Page 16: Technical Data

    Technical data Technical data Technical data CX2500-1061 Interfaces 1 x Ethernet Chipset Intel®-Ethernet-Controller I210 Data transfer rates 10/100/1000 Mbit/s with Power over Ethernet (PoE) Connection type 1 x RJ45 Power supply via system bus (through CX2100-0xxx power supply modules) PoE class 0, 1, 2, 3 and 4 according to PoE standard IEEE 802.3af-2003...
  • Page 17: Appendix

    Appendix Appendix Accessories Table 3: Further spare parts. Order number Description CX2900-0101 Housing locking clips (black) for CX52x0, CX56x0 and CX20xx. 10 locking sets of two clips each. CX2900-0102 Cover for left-side bus connector, 5 pieces CX2500-1061 Version: 1.0...
  • Page 18: Certifications

    FCC Approval for Canada FCC: Canadian Notice This equipment does not exceed the Class A limits for radiated emissions as described in the Radio Interference Regulations of the Canadian Department of Communications. Version: 1.0 CX2500-1061...
  • Page 19: Support And Service

    Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on our internet page: www.beckhoff.com You will also find further documentation for Beckhoff components there.
  • Page 20: List Of Tables

    List of tables List of tables Table 1 Legend for the structure....................... Table 2 Pin assignment of the PoE-capable interface ................Table 3 Further spare parts........................Version: 1.0 CX2500-1061...
  • Page 21: List Of Figures

    List of figures List of figures Fig. 1 Structure of a CX2500-1061 extension module................Fig. 2 Ethernet interface (X610) ......................Fig. 3 CX2500-1061 extension module, dimensions................CX2500-1061 Version: 1.0...
  • Page 23 More Information: www.beckhoff.com/CX2500-1061 Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
