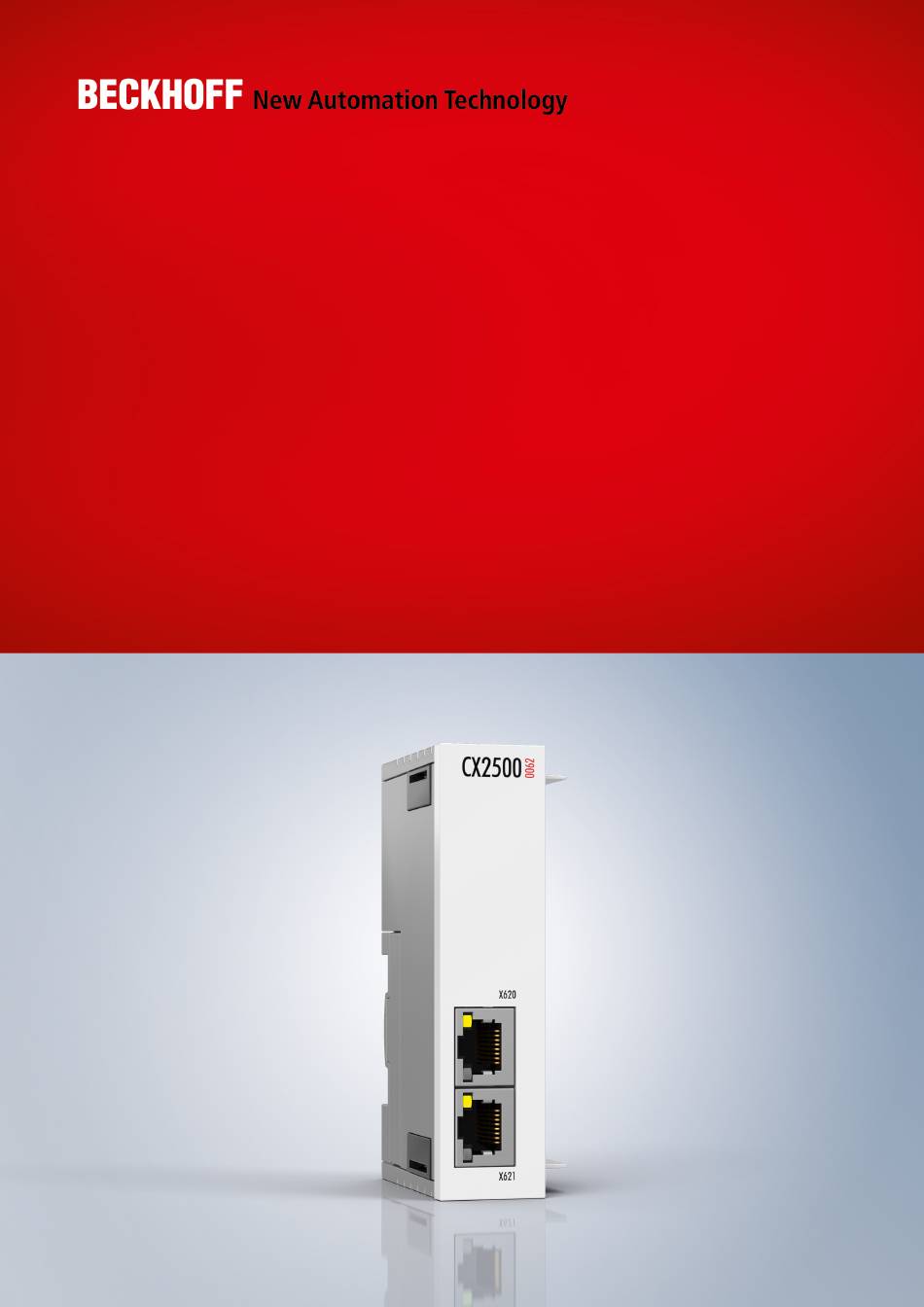

- Page 1 Manual | EN CX2500-0062 2.5 Gbit Ethernet module for CX20xx, CX52x0, CX53x0, CX56x0 2024-09-17 | Version: 1.0...
-
Page 3: Table Of Contents
5 Error handling and diagnostics ...................... 15 LEDs on the Ethernet system interface................... 15 Faults .............................. 15 6 Technical data ............................ 16 7 Appendix .............................. 17 Accessories ............................. 17 Certifications ........................... 18 Support and Service........................ 19 List of tables ............................ 20 List of figures............................ 21 CX2500-0062 Version: 1.0... - Page 4 Table of contents Version: 1.0 CX2500-0062...
-
Page 5: Notes On The Documentation
EP1590927, EP1789857, EP1456722, EP2137893, DE102015105702 and similar applications and registrations in several other countries. ® EtherCAT is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. The distribution and reproduction of this document, as well as the use and communication of its contents without express authorization, are prohibited. -
Page 6: Representation And Structure Of Warnings
There is a potential hazard to the environment and equipment. Notes showing further information or tips: This notice provides important information that will be of assistance in dealing with the product or software. There is no immediate danger to product, people or environment. Version: 1.0 CX2500-0062... -
Page 7: Documentation Issue Status
Notes on the documentation Documentation issue status Version Changes First version CX2500-0062 Version: 1.0... -
Page 8: For Your Safety
Beckhoff Automation GmbH & Co. In addition, the following actions are excluded from the liability of Beckhoff Automation GmbH & Co. KG: • Failure to comply with this documentation. -
Page 9: Notes On Information Security
• The sensitivity of a PC against malicious software increases with the number of installed and active software. • Uninstall or disable unnecessary software. Further information on the safe handling of networks and software can be found in the Beckhoff Information System: http://infosys.beckhoff.com... -
Page 10: Product Overview
Product overview Product overview ® The CX2500-0062 module provides two independent Ethernet interfaces. The Intel -i226 Ethernet controller used supports data transfer rates of up to 2.5 Gbit/s. This makes the module interesting for applications that require particularly high data rates and short reaction times. -
Page 11: Ethernet Interfaces (X620, X621)
T3 - Pair 3 T4 + Pair 4 T4 - Display in the Device Manager By default, the Ethernet interfaces are identified as follows in the Device Manager: Fig. 3: Designation of Ethernet interfaces in the Device Manager. CX2500-0062 Version: 1.0... - Page 12 • Check whether the peripherals used support jumbo frames. Proceed as follows: 1. Start the Device Manager. 2. Double-click on an interface and then on the Advanced tab. 3. Under Property click on Jumbo Packet and under Value click on the option 4088 Bytes or 9014 Bytes. Version: 1.0 CX2500-0062...
-
Page 13: Mounting
Mounting Mounting Fig. 4: CX2500-0062 extension module, dimensions Plug in extension module The extension module is connected to the left-hand side of the basic CPU module via a multi-pin connector. A maximum of four CX2500-xxxx modules can be plugged into the CX20xx series in any order, and one module can be plugged into the CX52x0, CX53x0 or CX56x0 series. -
Page 14: Installing The Housing Locking Clips
2. The locking clips are inserted on the top and bottom. ð Once all extension modules are locked, the whole assembly can be installed on the DIN rail. To remove, the locking clips are lifted with a screwdriver and pulled out of the housing. Version: 1.0 CX2500-0062... -
Page 15: Error Handling And Diagnostics
5. TwinCAT version used 6. Any components / software used The quickest response will come from support / service in your country. Therefore please contact your regional contact. For details please refer to our website at https://www.beckhoff.com or ask your distribution partner. CX2500-0062... -
Page 16: Technical Data
Technical data Technical data Technical data CX2500-0062 Interfaces 2 x Ethernet Chipset Intel®-Ethernet-Controller I226 Data transfer rates 10/100/1000/2500 Mbit/s Connection type 2 x RJ45 Power supply via system bus (through CX2100-0xxx power supply modules) Operating system Windows 10 IoT Enterprise 2019 LTSC, 64-bit, Windows 10 IoT Enterprise 2021 LTSC, 64-bit Max. -
Page 17: Appendix
Appendix Appendix Accessories Table 3: Further spare parts. Order number Description CX2900-0101 Housing locking clips (black) for CX52x0, CX56x0 and CX20xx. 10 locking sets of two clips each. CX2900-0102 Cover for left-side bus connector, 5 pieces CX2500-0062 Version: 1.0... -
Page 18: Certifications
FCC Approval for Canada FCC: Canadian Notice This equipment does not exceed the Class A limits for radiated emissions as described in the Radio Interference Regulations of the Canadian Department of Communications. Version: 1.0 CX2500-0062... -
Page 19: Support And Service
Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on our internet page: www.beckhoff.com You will also find further documentation for Beckhoff components there. -
Page 20: List Of Tables
List of tables List of tables Table 1 Legend for the structure....................... Table 2 Ethernet interface X620 and X621, pin assignment..............Table 3 Further spare parts........................Version: 1.0 CX2500-0062... -
Page 21: List Of Figures
List of figures List of figures Fig. 1 Structure of a CX2500-0062 extension module................Fig. 2 Ethernet interface (X620, X621)....................Fig. 3 Designation of Ethernet interfaces in the Device Manager............Fig. 4 CX2500-0062 extension module, dimensions................CX2500-0062 Version: 1.0... - Page 23 More Information: www.beckhoff.com/CX2500-0062 Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
