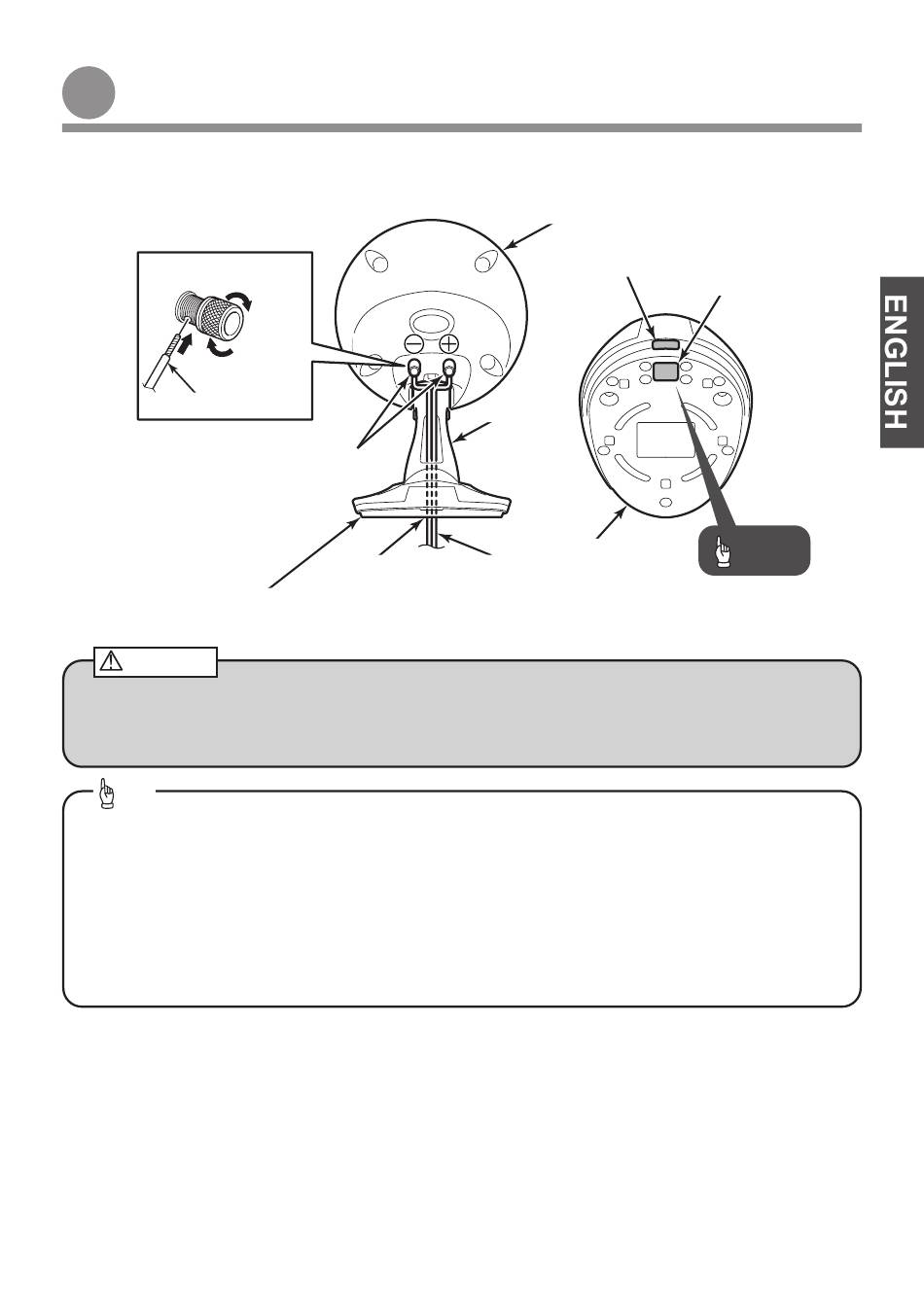

Parts and connections

Parts and connections
Speaker wire
Speaker input terminals
Speaker base
Caution
• When connecting the speaker wires, insert the bare ends of the speaker wires correctly so that they do not
touch neighboring terminals, otherwise it may cause short-circuits.
• The speaker wires are not provided with the speaker, so purchase them separately.
Tip
■ For speaker wire diameter less than φ7 mm
• If the speaker wire is passed through the cable entry point (small) or cable entry point (large) in the speaker
base and the speaker arm, it will improve the outer appearance of the speaker.
■ If the speaker wire has a diameter of between φ7 mm and φ15 mm
• If the speaker wire is passed through the cable entry point (large) in the speaker base and the speaker arm, it
will improve the outer appearance of the speaker.
■ For speaker wire diameter φ15 mm or more
•The speaker wire cannot be passed through the speaker arm, so route it along the outside.
①
(Black) (Red)
Speaker arm
Speaker wire
Cable entry
point
- 21 -
Speaker
Cable entry
point (small)
Cable entry
point (large)
Speaker base
Tip
