Summary of Contents for Rhythm Healthcare P2-S3

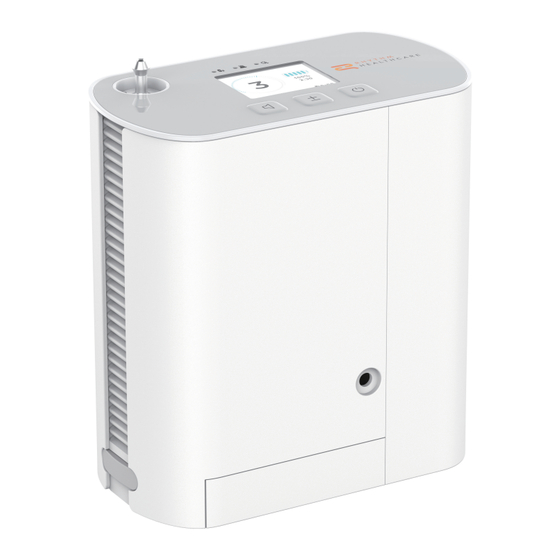

- Page 1 ITEM# P2-S3 P2-S3 PORTABLE OXYGEN CONCENTRATOR 1-877-774-9271 | www.oxygenconcentratorstore.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Symbols ....................1-2 Intended Use ................... 3 Contraindications ..................4 General Precautions ................4-7 Parts Diagram ..................8 User Interface Buttons and Display Symbols ........9-12 Alerts ....................13-15 Battery Info .................... 16 Power Supply ..................17 Accessories .................. -
Page 3: Symbols
Symbol Description A warning indicates that the personal safety of the patient may be involved. WARNING Disregarding a warning could result in significant injury. A caution indicates that a precaution or service procedure must CAUTION be followed. Disregarding a caution could lead to a minor injury or damage to equipment. - Page 4 Symbol Description Serial Number This Side Up Fragile Storage Humidity (Non-condensing) Storage Temperature Magnetic Resonance Unsafe The manufacturer of this POC has determined this device conforms to all applicable FAA requirements for POC carriage and use on board aircraft. Service Required Alert 1-877-774-9271 | www.oxygenconcentratorstore.com...
-
Page 5: Intended Use
It supplies a high concentration of oxygen and is used with a Nasal Cannula to deliver oxygen from the concentrator to the patient. The P2-S3 is a small and portable device that may be used at the home and can be taken with you while performing your daily activities. -
Page 6: Contraindications
CAUTION Never leave the P2-S3 in high temperatures/high humidity such as in a car in high heat or a bathroom with high humidity. This can damage the device. WARNING Geriatric patients or any other patients unable to communicate discomfort, hear or see alarms while using this device, may require additional monitoring. - Page 7 Always consult your health care practitioner before using the POC. WARNING The settings of the P2-S3 might not correspond with a continuous flow of oxygen. WARNING The settings of other models or brands of oxygen therapy equipment do not correspond with the settings of the P2-S3.
- Page 8 41˚F to 104˚F (5˚C to 40˚C) or a relative humidity above 90% is expected to adversely affect the flow rate and the percentage of oxygen and consequently the quality of the therapy. WARNING The P2-S3 is not intended for use with a tracheostomized patient. 1-877-774-9271 | www.oxygenconcentratorstore.com...
- Page 9 • Use only with P2-S3 batteries • Use only approved P2-S3 accessories WARNING Remove the battery from the device if the P2-S3 will not be used for an extended period of time. WARNING Device operation exceeding the voltage, breath rate, temperature, humidity and/or altitude values specified may decrease oxygen concentration levels.
-
Page 10: Parts Diagram
Parts Diagram Alert/Alarm Light Breath Detection Light Service Required Alert Nozzle Mute Audio On/Off Button Button Flow Controls Button Air Outlet Battery Air Intake Battery AC/DC Latch Power Input 1-877-774-9271 | www.oxygenconcentratorstore.com... -
Page 11: User Interface Buttons And Display Symbols
User Interface Buttons and Display Symbols Display Panel Symbol Description Instructions On/Off Press once to turn On. Button Press and hold for three seconds to turn Off. Press once to toggle between audible and silent mode. The panel will display the appropriate icon to indicate which mode is enabled: Audible mode------ Audio Alarm... - Page 12 User Interface Buttons and Display Symbols Home Screen Battery charge level Battery percentage Flow Setting * Estimated time to fully charge the battery (when plugged in) * Battery remaining time to use (when using battery) Device runtime Icon Description Current flow setting (range is 1 to 3) Battery charge level: •...
- Page 13 User Interface Buttons and Display Symbols Icon Description Powered by AC or DC only 1. Powered by battery only (not plugged in and charging) 2. Battery level percentage and time remaining (hours: minutes). 3. Device On 1. Battery is charging. 2.
- Page 14 User Interface Buttons and Display Symbols Audible Mode: Below shows the device has detected an active alarm while in Audible Mode. Example below shows "Absence of Breath". Alerts in Silent Mode: The display below shows that the device has detected an active alarm while in Silent Mode. Example below shows "Absence of Breath": 1-877-774-9271 | www.oxygenconcentratorstore.com...
-
Page 15: Alerts
Alerts Adapter plug/unplug: An adapter icon displays when adapter is plugged in and disappears when unplugged. If enabled, an alarm will sound. Battery plug/unplug: A battery icon displays when battery is connected and disappears when disconnected. If enabled, an alarm will sound. Alarm audio selection: An alert will indicate when unit is turned On or Off. - Page 16 Alerts (continued) Error Message System Process Screen Display Additional Alarm Info Battery Battery is Exhausted Battery cycle >500 Alarm only Exhausted Replace Battery Or battery health <50% Replace Replace Sieve Bed Alarm only Sieve Bed expired Sieve Bed Contact Provider Auto-switch to Low Input Low Input Voltage...
- Page 17 Alerts (continued) Error Message System Process Screen Display Additional Alarm Info Auto-shut down Sieve Bed Fail Sieve Bed failure Sieve Bed Fail after 10 seconds Contact Provider or invalid Auto-shut down Compressor Fail Compressor Fail Compressor failed after 10 seconds Contact Provider Auto-shut down Valve Check Fail...
-
Page 18: Battery Info
P2-S3 comes standard with a single battery. Double and triple batteries are optional and can be purchased from your provider. Ensure the battery is installed into the P2-S3. Use the AC power supply to recharge the battery. P2-S3 with Single Battery: Can provide up to 2.5 hours of operation. -
Page 19: Power Supply
Power Supply AC Power Supply # S3AC The AC Power Supply is used to power the P2-S3 from an electrical outlet. When using the AC charger, the power supply automatically adapts to input voltages from 100V to 240V (50-60HZ) allowing it to be used with most power sources throughout the world. - Page 20 24 hours of continuous use. CAUTION Select only FDA approved Nasal Cannula (e.g., P2NC-1) Carry Bag # S3CB The P2-S3 Carry Bag allows you to go out for daily activities. See the Carry Bag Instructions for detailed Use. P2-S3 Accessories Item Number...
-
Page 21: General Operation
Operating Instructions General Operation 1. Find a well ventilated location to place the P2-S3. Ensure that the unit is turned off. Ensure the Intake and exhaust has clear access. The P2-S3 should be placed where alarms can be heard. WARNING Do not use P2-S3 in the presence of flammable anesthetics, detergents, or other chemical vapors. - Page 22 Slide the battery into place until the latch returns to the upper position. There will be an audible sound when the battery is in position. 3. Connect AC or DC power supply to P2-S3. The green LED on the power adapter will turn on and there will be an audible sound when power is connected.
- Page 23 Operating Instructions General Operation (continued) 4. Place the P2-S3 into Carry Bag. Position exhaust vents away from the user. 5. Connect the Nasal Cannula to the nozzle fitting. Nozzle fitting is located on the top side of the P2-S3 near the Pre-Filter Cover.
- Page 24 Operating Instructions General Operation (continued) 7. Set flow rate prescribed by your provider. Press the ± setting button to adjust the P2-S3 to the desired flow rate. The current setting can be viewed on the display from 1 to 3. CAUTION Ensure the power is in a well-ventilated place.
-
Page 25: Troubleshooting
Troubleshooting The table below lists some common problems and solutions. If you can't resolve a problem, please contact your provider. Problem Possible Cause Recommended Solution Battery is not Remove the battery and re-install it installed correctly correctly. Use the AC or DC power supply to operate the device (with the battery Battery is depleted inserted) to recharge the battery. -
Page 26: Cleaning The Case
Nasal Cannula should be FDA approved and the length should be less than 25ft (7.6m). Filter Cleaning and Replacement Filters are designed for adequate air flow through the device at the front of the P2-S3. Pre-Filter Cover # S3PFCR The Pre-Filter Covers must be cleaned weekly to ensure adequate air flow. Clean with a mild liquid detergent and water. -
Page 27: Battery Care And Maintenance
The Cotton Intake Filters cannot be cleaned, it must be replaced. Battery Care and Maintenance The P2-S3 Lithium-ion Battery requires special care to ensure proper performance and long life. Only use P2-S3 batteries (Item #s: S3BY001S, S3BY001D, S3BY001T) with your concentrator. CAUTION Keep liquids away from the battery. - Page 28 We suggest that the room temperature should not exceed 75°F (24°C) when the battery is being charged. Battery Time Remaining Clock The P2-S3 continuously displays the battery time remaining. This displayed time is only an estimate and the actual time remaining may vary from this value. CAUTION Store battery in a cool dry place with a charge of 40-50%.
-
Page 29: Disposal Of Equipment And Accessories
Maintenance and cleaning of P2-S3 Disposal of Equipment and Accessories Follow your local governing ordinances for disposal and recycling of the P2-S3 accessories. The battery contains Lithium-ion cells and should be recycled and must not be incinerated. P2-S3 Replacement Items... -
Page 30: Specifications
System Specifications Specifications Single Battery: (L/W/H) 6.2” x 3.4” x 6.7”/15.7 x 8.6 x 17cm Dimensions Double Battery: (L/W/H) 6.2” x 3.4” x 7.5”/15.7 x 8.6 x 19cm Triple Battery: (L/W/H) 6.2” x 3.4” x 8.3”/15.7 x 8.6 x 21.1cm Single Battery: 3.3lbs/1.5kg Weight Double Battery: 4lbs/1.8kg... -
Page 31: Classifications
System Specifications Specifications (continued) AC Input: 100 to 240 VAC 50 to 60 Hz Power: DC Input: 11-16 VDC DC Output: 19V 6.3A AC Power Supply Voltage: 14.4 VDC DC Power Supply Single Battery Rated Capacity: 3,400 mAh Rechargeable Battery Double Battery Rated Capacity: 6,800 mAh Triple Battery Rated Capacity: 10,200 mAh Single Battery... -
Page 32: Standards Compliance
System Specifications Standards Compliance The device is designed to conform to the following standards: - IEC 60601-1-2, 2014, Medical electrical equipment - Part 1-2: General requirements for basic safety and essential performance - Collateral Standard: Electromagnetic disturbances - Requirements and tests - IEC 60601 - 1: Medical Electrical Equipment - part 1: General Requirements for Basic safety &... -
Page 33: Emc Information
System Specifications EMC Information The device has been designed to meet EMC standards throughout its Service Life. Guidance and Manufacturer's Declaration - Electromagnetic Immunity: The Concentrator is intended for use in the electromagnetic environment specified below. The user of the Concentrator should make sure it is used in such an environment. Compliance Electromagnetic Immunity Test... - Page 34 System Specifications EMC Information (continued) Conducted RF 3 Vrms 3 Vrms Portable and mobile RF communications equipment IEC 61000-4-6 150 kHz to 80 MHz 150 kHz to 80 MHz should not be used closer (to any part of the device, Radiated RF 6 Vrms 6 Vrms...
-
Page 35: Guidance And Manufacturer's Declaration - Electromagnetic Emissions
System Specifications Guidance and Manufacturer's Declaration - Electromagnetic Emissions: The P2-S3 is intended for use in the electromagnetic environment specified below. The user of the P2-S3 should ensure it is used in such an environment. Electromagnetic Environment - Emission Test... -
Page 36: Essential Performance List
System Specifications Essential Performance List The P2-S3 is intended for use in the electromagnetic environment specified below. The user of the P2-S3 should ensure it is used in such an environment. Essential Performance Relevant Requirements or Condition Accuracy of concentration... -
Page 37: Warranty
This warranty does not cover damage or injury whether to P2-S3 or to personal property or persons caused by accident, misuse, abuse, negligence, failure to install in accordance with Rhythm’s installation instructions, failure to operate under conditions of normal use... - Page 38 American Medical Sales and Rentals 15055 E. Hinsdale Drive, Bldg D Centennial, CO 80112 Phone: +1 (877) 774-9271 www.oxygenconcentratorstore.com E-mail: sales@amsrco.com V2: 3/15/24...
