Summary of Contents for Rhythm Healthcare FMP01

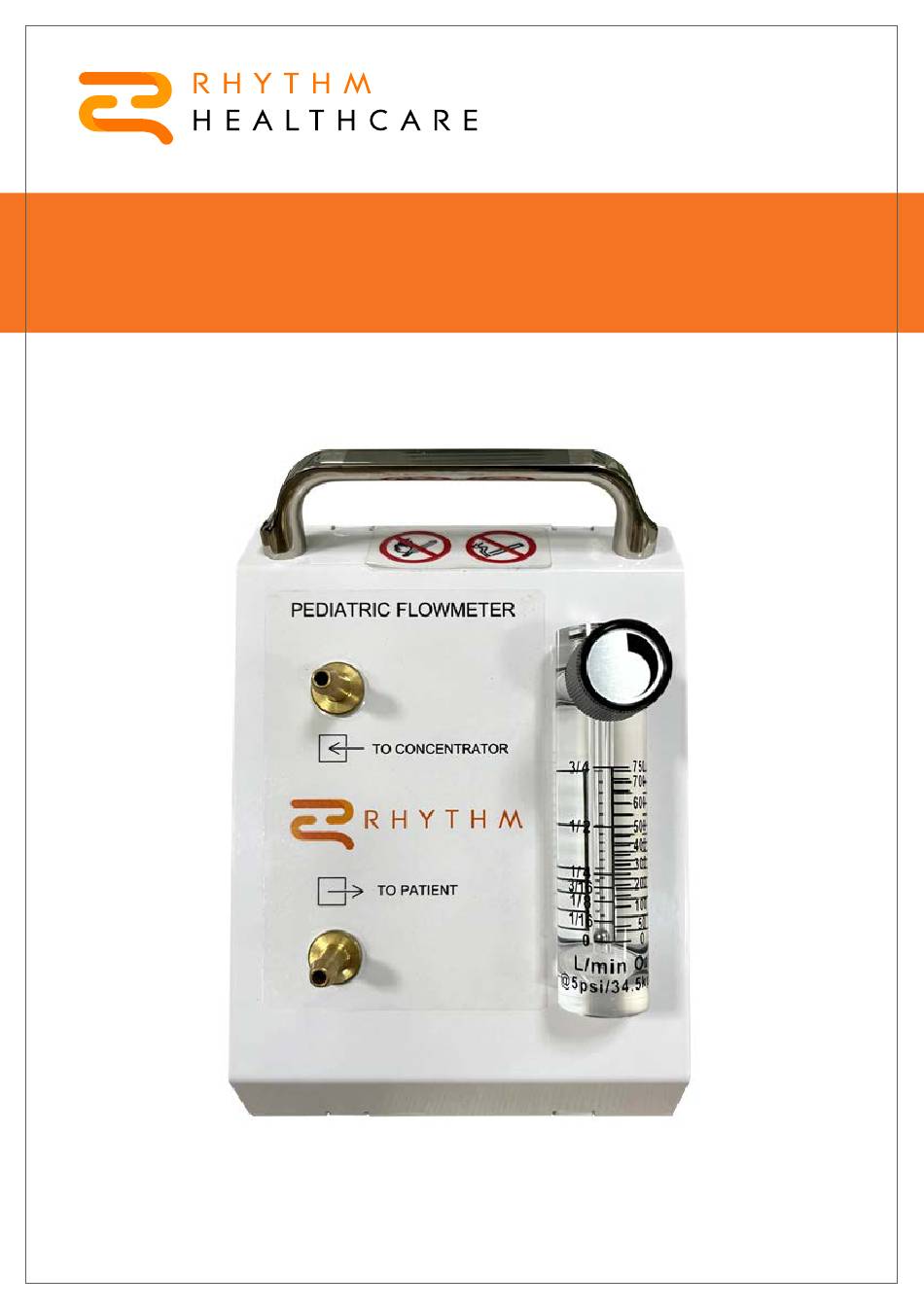

- Page 1 ITEM #: FMP01 RHYTHM PEDIATRIC FLOWMETER...
- Page 2 CONTENTS General Symbols Safety/Warnings Specifications/Handling/Storage Usage Initial Setup Setup Without a Humidifier Bottle Setup With a Humidifier Bottle Setting the Flow rate on the Pediatric Flowmeter Preventative Maintenance/Cleaning Warranty...
- Page 3 GENERAL SYMBOLS Symbols apply to hazards or unsafe practices which could result in personal injury or property damage. No Smoking No Open Flame Warning Caution PROVIDER: These instructions MUST be given to the user of the product. USER: Read and understand this manual before using this product. If you have any questions, call your provider before using.
- Page 4 SAFETY WARNING Do not use this product without completely reading and understanding these instructions and any additional instructional material such as owner’s manual, service manual or other instructions supplied with this product or optional equipment. If you are unable to understand the WARNINGS, CAUTIONS, or INSTRUCTIONS, please contact your provider before attempting to use this equipment, otherwise injury or damage may occur.
- Page 5 INTRODUCTION INCLUDED IN PACKAGE Pediatric Flowmeter with Integrated Stand Tubing (CP) - 25 ft (Max.) (7.5 m) Tubing - 7 ft (2.1 m) total Connector Humidifier Bottle Adapter Manual SPECIFICATIONS Input Pressure Rating 5 ± 0.5 PSI (34.5 ± 3.45 kPa) Oxygen Input 2 L/min Oxygen Output...
- Page 6 USAGE WARNING Connect all tubing connections before placing cannula on patient. Possible water ingress through the tubing can occur if this sequence is not followed. When adjusting the Rhythm Pediatric Flowmeter, the flowmeter on the oxygen concentrator MUST be set at 2.0 L/min. Failure to comply with this procedure will cause incorrect flow rates to the patient.
- Page 7 INITIAL SET UP (for Use with or without Humidifier Bottle) 1. Place pediatric flowmeter stand on tabletop. 2. Turn flowmeter knob counterclockwise to the fully open position. 3. Press power switch to ON. Power light located on control panel will illuminate green, indicating that the system is functioning normally.
- Page 8 SET UP (with humidifier bottle, if prescribed) Refer to Figure 2. 1. Connect a 7ft (2.1 m) [max length] oxygen tubing from output fitting of oxygen concentrator to input labeled “TO CONCENTRATOR” on pediatric flowmeter. 2. Follow the directions supplied by humidifier bottle manufacturer for filling and connecting to oxygen tubing.
- Page 9 SETTING THE FLOW RATE WARNING DO NOT select a different setting unless your physician has prescribed a change in the flow rate of the Rhythm Pediatric Flowmeter. CAUTION DO NOT allow water or other substances to enter flowmeter openings. DO NOT submerge flow stand, flowmeter or tubing.
- Page 10 MAINTENANCE CLEANING Wipe down unit with soft cloth moistened with water and mild detergent. Do not submerge the Pediatric Flowmeter in water. Do NOT spray chemical cleaners on the flowmeter. The humidifier bottle MUST be cleaned after each use of Humidifier bottle.
- Page 11 This warranty only applies to the labor for repairs performed by the Rhythm Healthcare’s Service Department or Rhythm Healthcare Authorized Service Centers. It does not apply to the labor performed by the purchaser or user.
- Page 12 W: www.rhythmhc.com E: contactus@rhythmhc.com V2: 6/26/24...
