CAMDEN CX-EPD1299L Installation Instructions Manual

Electrified Locks
CX-EPD1299L
1/2" Preload Rim Electric Strike
INSTALLATION INSTRUCTIONS
THIS PACKAGE INCLUDES:
2 x 4-PIN power connector
1 x 3-PIN door status connector
1 x Installation Template
4 x 1/4 - 20 x 1-1/4'' Screws
1. GENERAL DESCRIPTION
The Camden CX-EPD1299L 1/2" Preload Rim electric strike for exit
devices and Pullman latches offers the very best in strike quality and
performance. This product is BHMA certified Grade 1, ensuring it
meets the highest standards of durability and reliability. The strike's
design provides unparalleled application flexibility, featuring options
such as field-selectable voltage, fail-safe/fail-secure operation,
and mechanical adjustment of the strike body. This certification not
only guarantees exceptional quality but also adherence to stringent
security and operational requirements.
2. SPECIFICATIONS
Voltage
Current Draw
Static Strength
Dynamic Strength
Preload (Fail-Secure Only)
Endurance
Latch Projection
Mode
Mechanical Adjustment
Operation
Duty
Latch Bolt Monitor
Dimensions (Body)
UL 294 Performance
Levels
4 x M3 x 6 Screws
1 x MOV
1 x Cover plate
2 x 1/8" Spacer Plates
12/24V AC/DC
560mA @ 12 VDC
280mA @ 24 VDC
1,500lbs.
70 ft-lbs.
15lbs.
1,000,000 Cycles (Factory Tested)
500,000 Cycles (UL Verified)
1/2" or 3/4" with 2 x #1/8" Spacer Plates
Field Selectable
Fail Safe/Fail Secure
Strike Body
AC-Buzz, DC-Silent
Continuous
SPDT, 100mA @ 24V DC Resistive
9-3/16"H x 1-7/8"W x 1/2"D
(233.2mm x 48.1mm x 12.7mm)
- Line Security = Level I
- Attack Level = Level I
- Endurance Level = Level IV
- Standby Power = Level I
3. DIMENSIONS
1
"
2
[12.7mm]

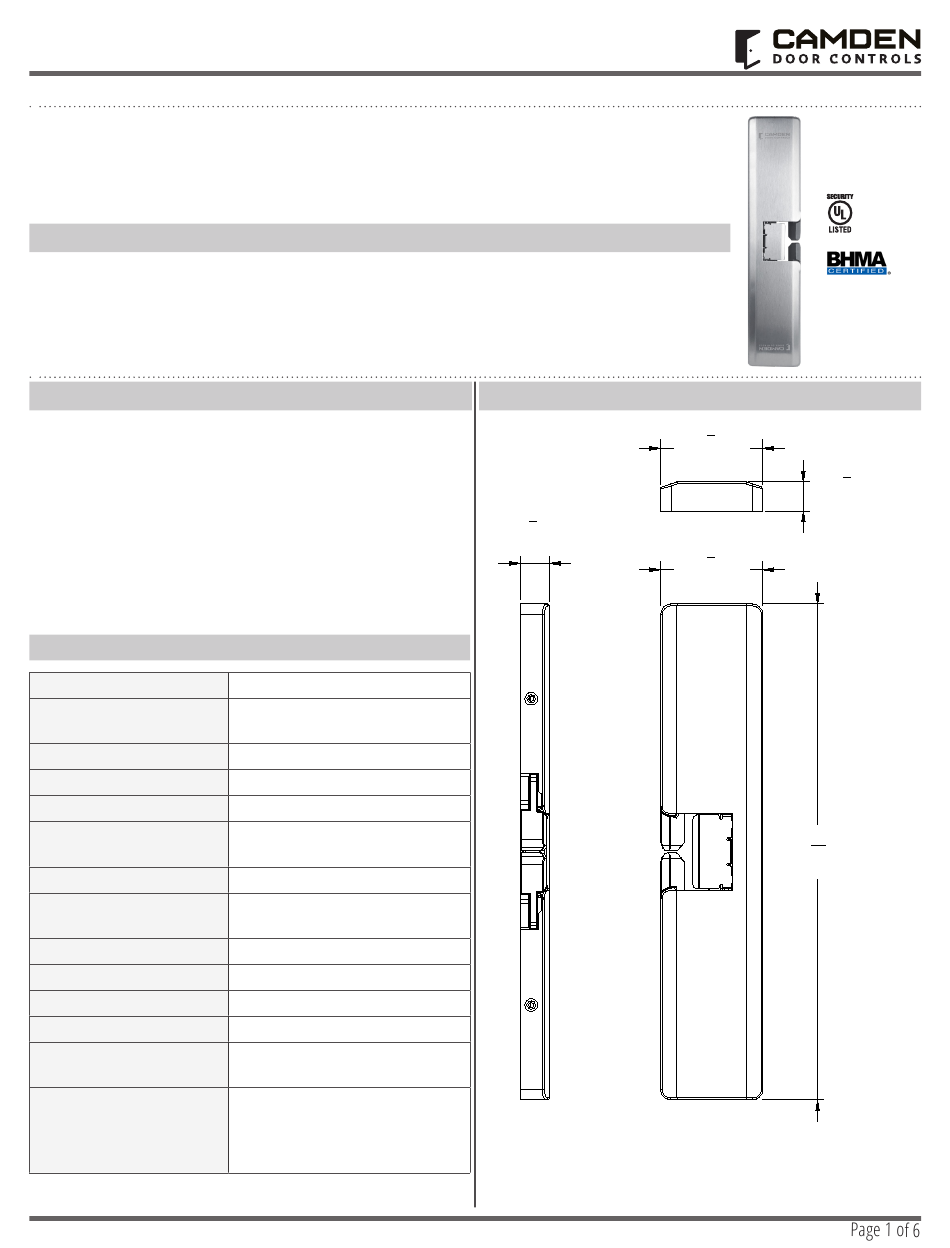

Figure 3.1 Dimensions
UL 1034
UL 294
ANSI/BHMA A156.31
GRADE 1
1 7 8
"
[48.1mm]
1
"
2
[12.7mm]
1 7 8
"
[48.1mm]
9 3 16
"
[233.2mm]
