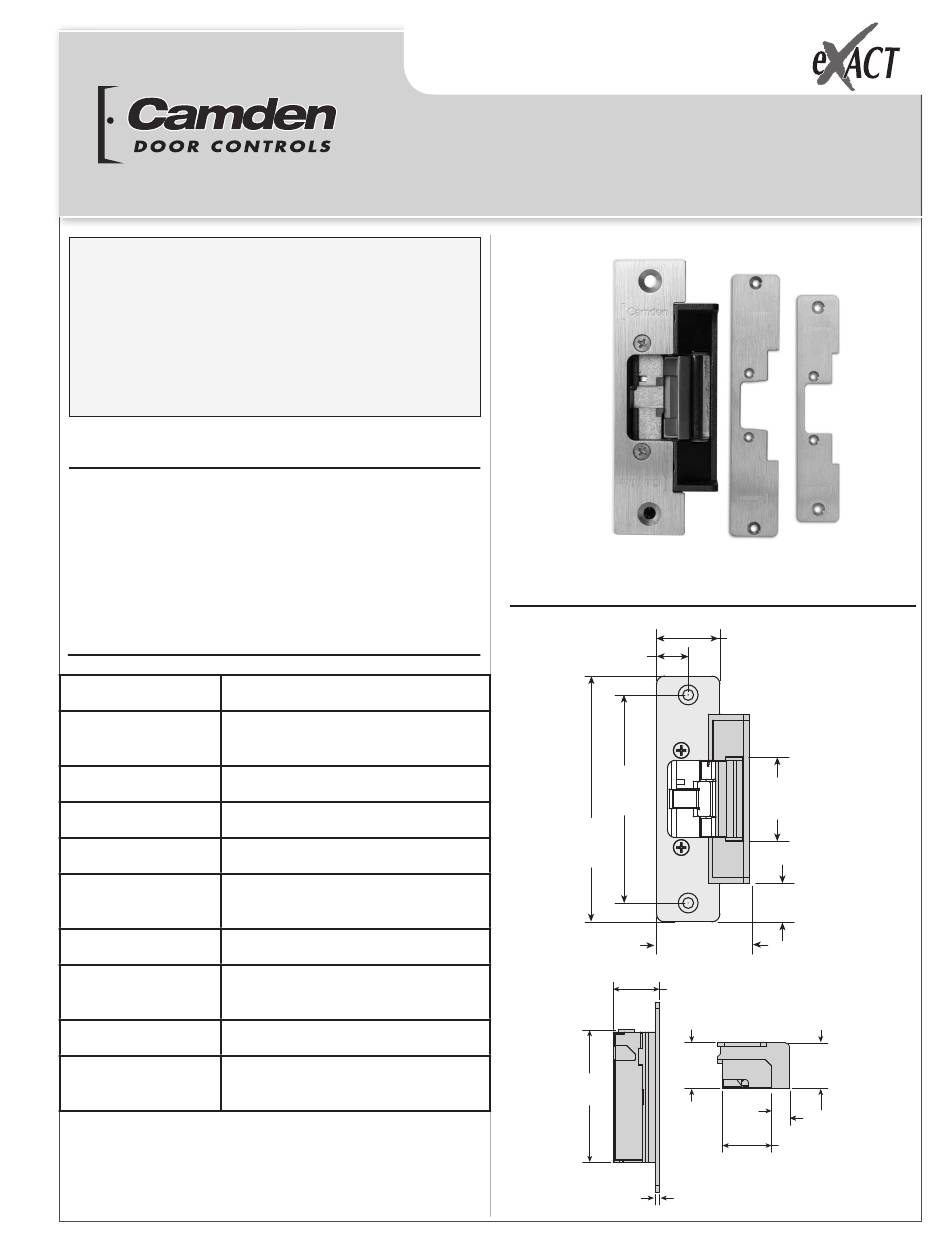

CAMDEN CX-ED2071 Installation Instructions

This Package Includes:
1- ESP1B, ESP3B and
ESP4B faceplates
4- Wire nuts
5- M5 x 12mm screws
2- #10 x 1 1/4" wood
screws

1. Description

Camden CX-ED2071 low profile Grade 2 ANSI strike for
cylindrical locksets offers the very best strike quality and
performance, with three stainless steel faceplates provided.
The 'Universal' strike design delivers unparalleled application
flexibility, fail safe/fail secure operation and mechanical
adjustment of the strike body.

2. Specifications

Voltage 8/16V AC/DC
Current Draw 305mA@8V DC 190mA@8V AC
625mA@16V DC 460mA@16V AC
Static Strength 1,000 Lbs.
Dynamic Strength 50 Ft-Lbs.
Endurance 700,000 Cycles
Field Selectable
Mode
Fail Safe/Fail Secure
Mech. Adjustment Strike Body/Faceplate
AC-Buzz
Operation
DC-Silent
Intermittent
Duty
3 3/8" H x 1 7/8" W x 1 1/8" D
Dimensions
(86mm x 47mm x 29mm)
(Body)
2- #10-32 x 1/2" screws
2- Mounting brackets
2- Spacers
1- Varistor
Page 1 of 3

Installation Instructions

3. Dimensions

5/8"
(16mm)
4 1/8"
(104mm)
4 7/8"
(123mm)
(47mm)
1 1/8"
(30mm)
1 1/8"
(30mm)
3 3/8"
(86mm)
1/8"
(3mm)
CX-ED2071
Electric Strike
1 1/4"
(32mm)
1 5/8"
(42mm)
3/4"
(19mm)
1 7/8"
1 1/8"
(29mm)
1/2" (12mm)
1 1/4"
(32mm)
