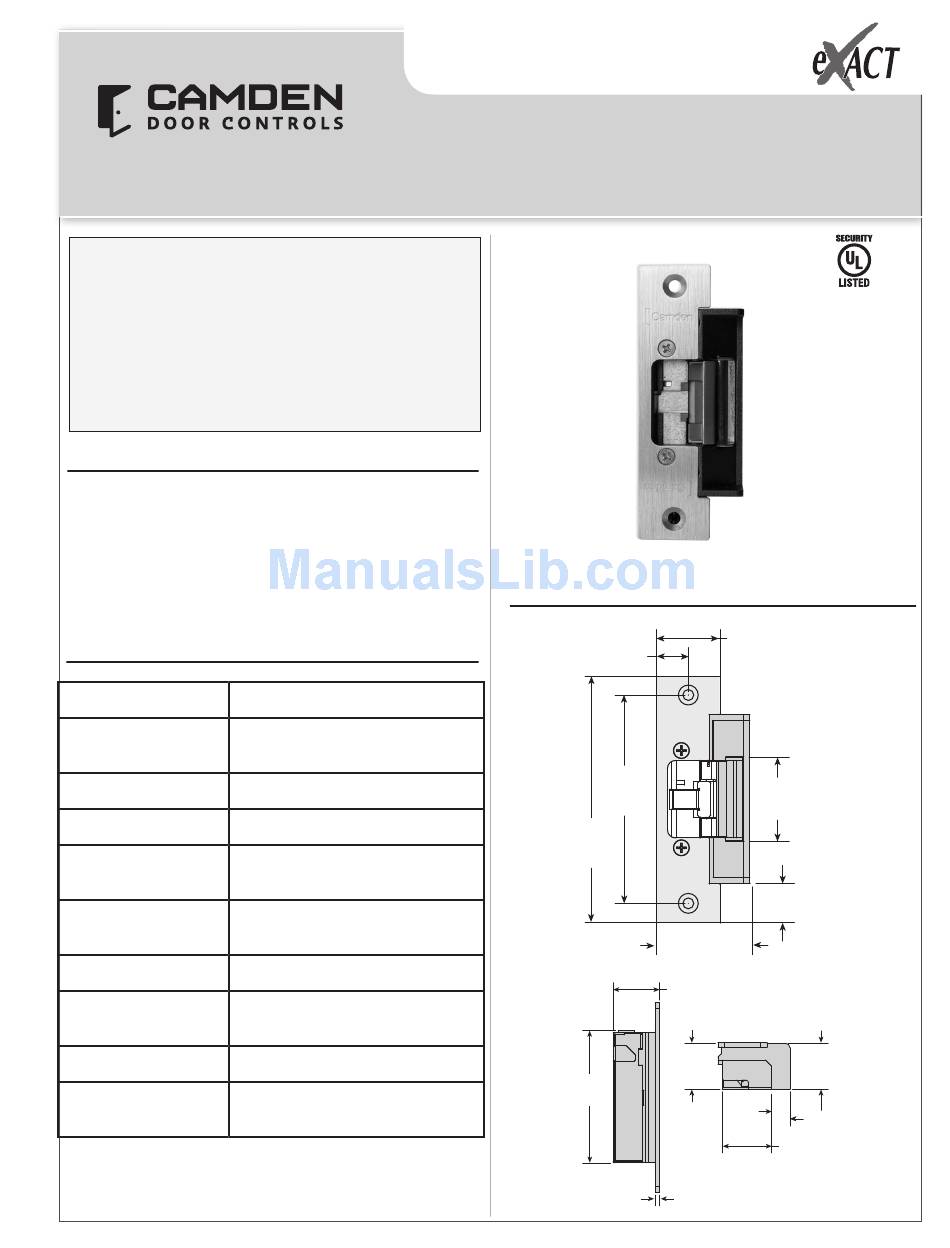

CAMDEN CX-ED2079-1 Installation Instructions

This Package Includes:
1- 4 PIN power connector
1- ESP1B faceplate
4- Wire nuts
5- M5 x 12mm screws
2- #10 x 1 1/4" wood
screws

1. Description

Camden CX-ED2079-1 low profile grade 2 ANSI strike for
cylindrical locksets offers the very best strike quality and
performance, with three stainless steel faceplates provided.
The 'ANSI' strike design delivers unparalleled application
flexibility, with field selectable voltage, fail safe/fail secure
operation and mechanical adjustment of the strike body.

2. Specifications

Voltage 12/24V AC/DC
Current Draw 300mA@12V DC
150mA@24V DC
Static Strength 1,000 Lbs.
Dynamic Strength 50 Ft-Lbs.
Endurance 700,000 Cycles (Factory Tested)
250,000 Cycles (UL Verified)
Mode Field Selectable
Fail Safe/Fail Secure
Mech. Adjustment Strike Body/Faceplate
Operation AC-Buzz
DC-Silent
Duty Continuous
Dimensions (Body) 3 3/8" H x 1 7/8" W x 1 7/32" D
(86mm x 47mm x 31mm)
2- #10-32 x 1/2" screws
2- Mounting brackets
2- Spacers
1- Varistor
1- Trim Plate
Page 1 of 3
'ANSI' Electric Strike

Installation Instructions

3. Dimensions

5/8"
(16mm)
4 1/8"
(104mm)
4 7/8"
(123mm)
(47mm)
1 7/32"
(31mm)
1 7/32"
(31mm)
3 3/8"
(86mm)
1/8"
(3mm)
CX-ED2079-1
1 1/4"
(32mm)
1 5/8"
(42mm)
3/4"
(19mm)
1 7/8"
1 7/32"
(31mm)
1/2" (12mm)
1 1/4"
(32mm)
UL 1034
UL 294
