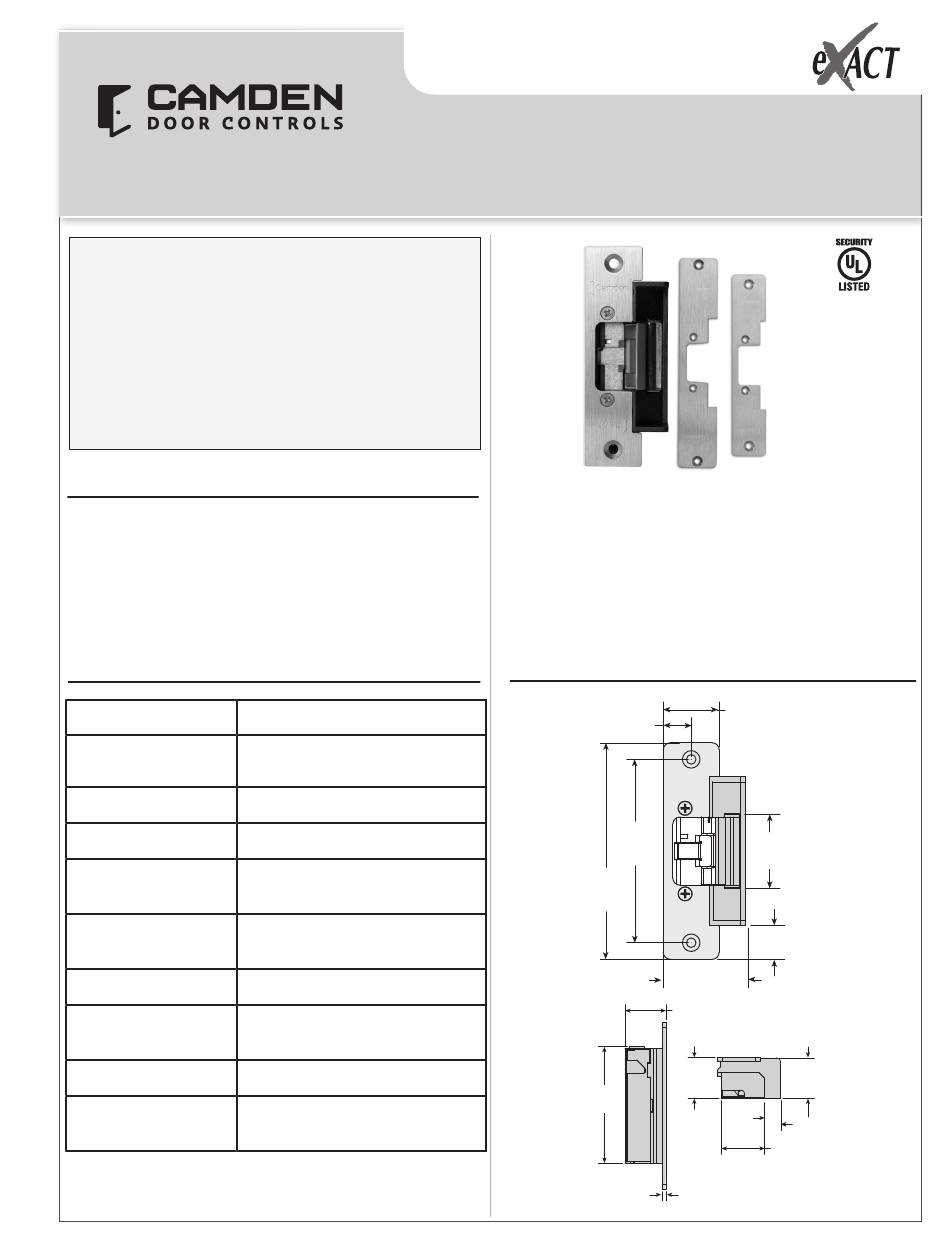

CAMDEN EXACT CX-ED2079 Installation Instructions

This Package Includes:
1- 4 PIN power connector
1- ESP1B, ESP3B and
ESP4B faceplates
4- Wire nuts
5- M5 x 12mm screws
2- #10 x 1 1/4" wood
screws
1. Description
Camden CX-ED2079 low profile grade 2 ANSI strike for
cylindrical locksets offers the very best strike quality and
performance, with three stainless steel faceplates provided.
The 'Universal' strike design delivers unparalleled application
flexibility, with field selectable voltage, fail safe/fail secure
operation and mechanical adjustment of the strike body.
2. Specifications
Voltage
Current Draw
Static Strength
Dynamic Strength
Endurance
Mode
Mech. Adjustment
Operation
Duty
Dimensions (Body)
2- #10-32 x 1/2" screws
2- Mounting brackets
2- Spacers
1- Varistor
12/24V AC/DC
300mA@12V DC
150mA@24V DC
1,000 Lbs.
50 Ft-Lbs.
700,000 Cycles (Factory Tested)
250,000 Cycles (UL Verified)
Field Selectable
Fail Safe/Fail Secure
Strike Body/Faceplate
AC-Buzz
DC-Silent
Continuous
3 3/8" H x 1 7/8" W x 1 7/32" D
(86mm x 47mm x 31mm)
'Universal' Electric Strike
UL 294 Performance Levels
- Line Security = Level I
- Attack Level = Level I
- Endurance Level = Level IV
- Standby Power = Level I
3. Dimensions
5/8"
(16mm)
4 1/8"
(104mm)
4 7/8"
(123mm)
3 3/8"
(86mm)
Page 1 of 3
CX-ED2079
Installation Instructions
1 1/4"
(32mm)
1 5/8"
(42mm)
3/4"
(19mm)
1 7/8"
(47mm)
1 7/32"
(31mm)
1 7/32" 1 7/32"
(31mm) (31mm)
1/2" (12mm)
1 1/4"
(32mm)
1/8"
(3mm)
UL 1034
UL 294
