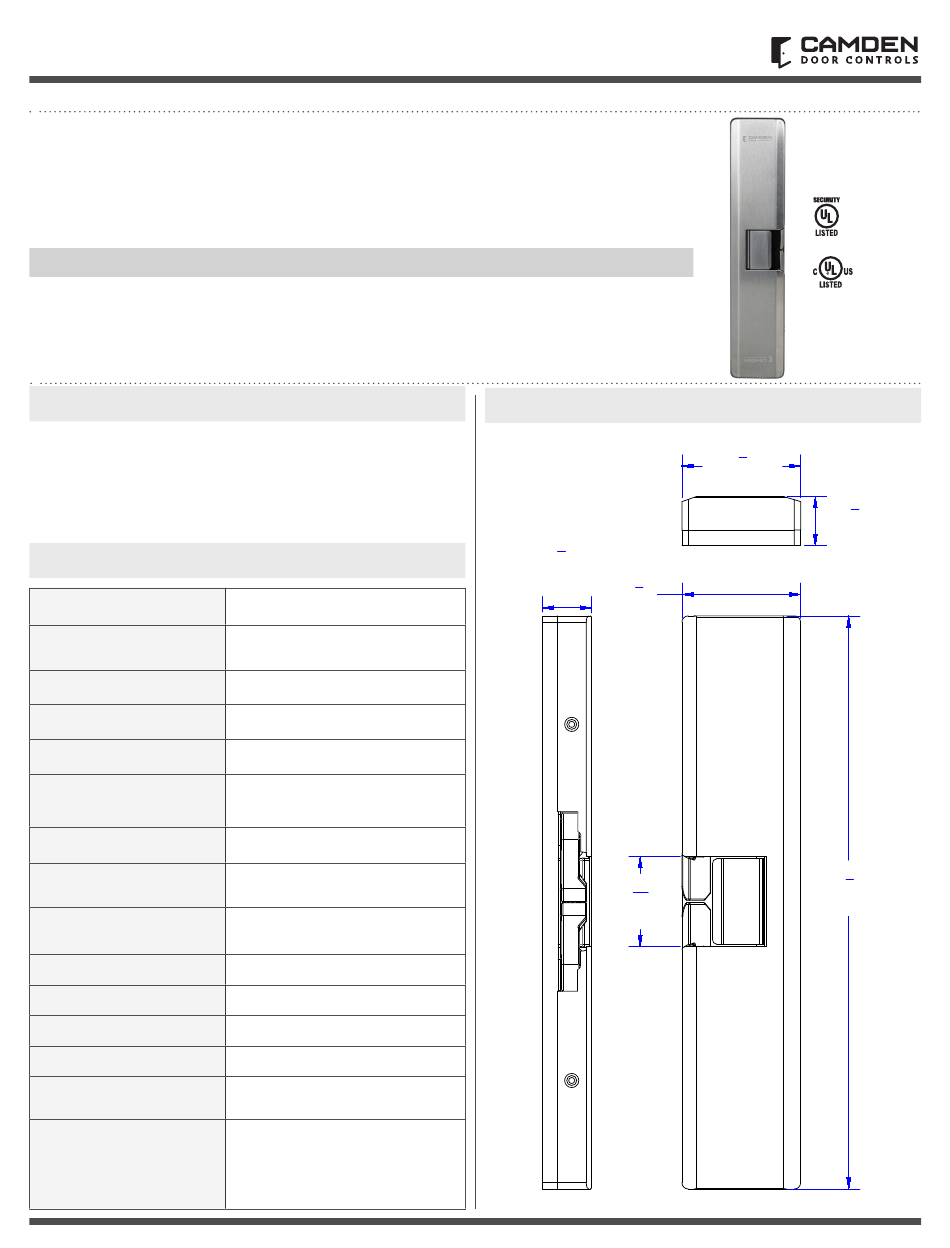

CX-EPD-1289L
Electric Preload RIM Strike
THIS PACKAGE INCLUDES:
(2) 4-PIN power connector
(1) 3-PIN door status connector
(1) Installation Jig
1. DESCRIPTION
Camden CX-EPD-1289-L Preload RIM strike for pullman
latches offers the very best strike quality and performance.
The strike design delivers unparalleled application flexibility,
with field selectable voltage, fail safe/fail secure operation and
mechanical adjustment of the strike body.
2. SPECIFICATIONS
Voltage
Current Draw
Static Strength
Dynamic Strength
Preload (Fail-Secure Only)
Endurance
Latch Projection
Fire Rating
Mode
Mechanical Adjustment
Operation
Duty
Latch Bolt Monitor
Dimensions (Body)
UL 294 Performance
Levels
(4) 1/4 - 20 x 1/-1/4'' Screws
(4) M3 x 6 Screws
12/24V AC/DC
560mA @ 12 VDC
280mA @ 24 VDC
1,500lbs. (UL Verified)
70 ft-lbs.
15lbs.
1,000,000 Cycles (Factory Tested)
250,000 Cycles (UL Verified)
3/4"
UL 10C/CAN4-S104
3 hrs. (Fail Secure Only)
Field Selectable
Fail Safe/Fail Secure
Strike Body
AC-Buzz, DC-Silent
Continuous
SPDT, 100mA @ 24V DC Resistive
9-1/8" H x 1-7/8" W x 3/4" D
(231.6mm x 48mm x 19.8mm)
- Line Security = Level I
- Attack Level = Level I
- Endurance Level = Level IV
- Standby Power = Level I
(1) MOV
(1) Cover plate
3. DIMENSIONS
3
4 ''
[19.8mm]
1 7 8 ''
[48.0mm]
1 7 16 ''
[36.6mm]
UL 1034
UL 294
UL10C/
CAN4-S104,
3hr. Fire rating
1 7 8 ''
[48.0mm]
3
4 ''
[19.8mm]
9 1 8 ''
[231.6mm]
Page 1 of 7
