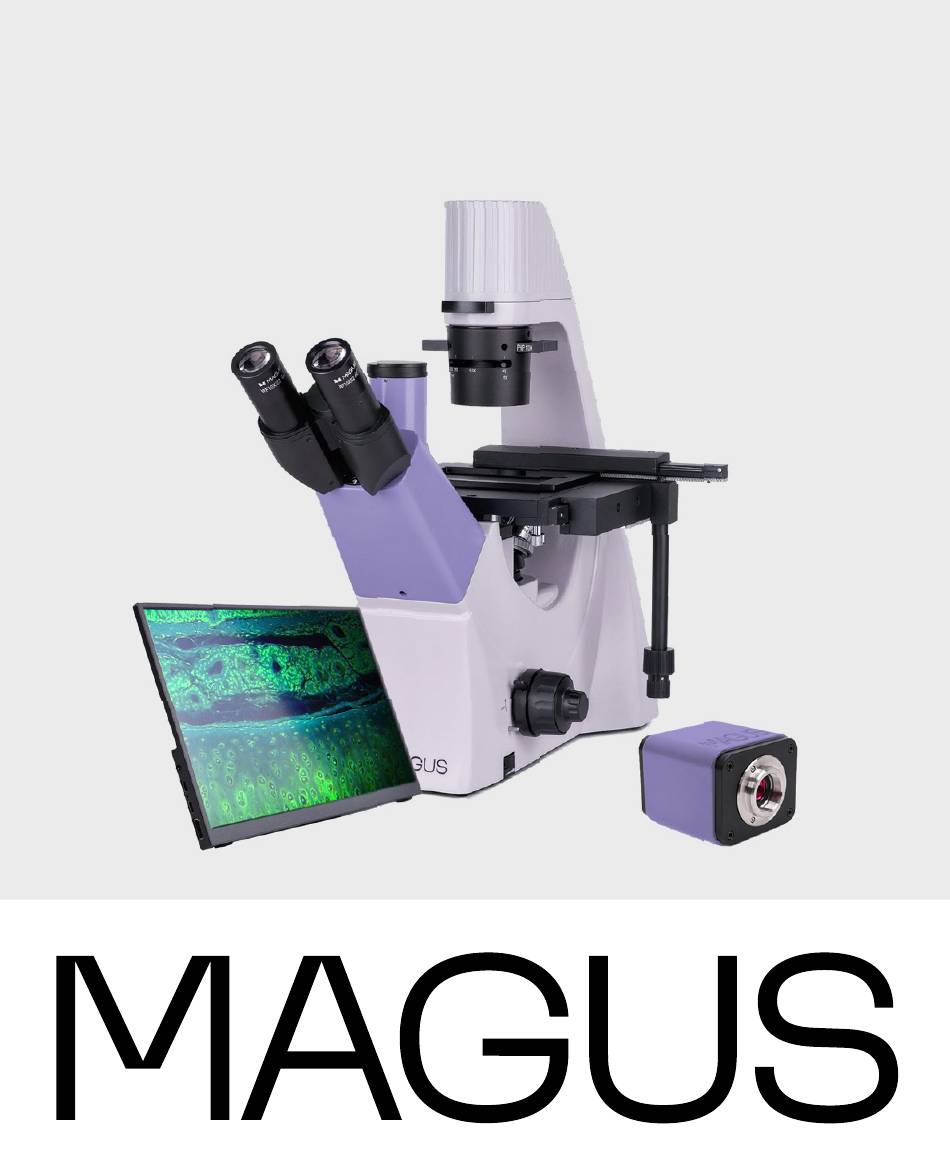

- Page 1 M AG U S B I O V D 3 00 LC D B I OLOG I CAL IN V ERT ED D I G I TA L M I C RO S C OP E U S E R M A N U A L...
-
Page 2: Safety Precautions
Before using the microscope, please read this user manual carefully to study the instrument design, operation modes and procedures, operational limitations, and safety precautions. Due to the continuous improvements in the microscope design, this manual may not reflect minor design changes that do not affect the microscope performance and operation procedures. - Page 3 10. Do not touch the lens surfaces with your fingers. Use a brush and special lens-cleaning solution to keep the lenses clean. 11. Bulb installation. This microscope employs LED bulbs as a light source. The bulbs should be replaced by the equipment vendor or in a qualified service center. If you replace the LED yourself, the illumination function may be impaired.
-
Page 4: Table Of Contents
Using the monitor 5 PHASE-CONTRAST TECHNIQUE 6 USING OPTIONAL EQUIPMENT Eyepiece with a scale Using a calibration slide with a camera 7 TROUBLESHOOTING 8 SCOPE OF DELIVERY 9 CARE AND MAINTENANCE Replacing the bulb Replacing the fuse Maintenance 10 MAGUS WARRANTY... -
Page 5: Description Of The Microscope
MAGUS Bio VD300 LCD Biological Inverted Digital Microscope has been designed and tested in accordance with the international safety standards. If properly used, the microscope is safe for the customer’s health, life, property, and the environment. Proper maintenance of the microscope is a prerequisite for its reliable and safe operation. - Page 6 Windows 8/10/11 (32 and 64 bit), Mac OS X, Linux, up to 2.8 GHz Intel Core 2 System requirements or higher, minimum 4GB RAM, USB 2.0 ports, RJ45, CD-ROM, 19" or larger monitor (with USB connection) Software HDMI: built-in, USB: MAGUS View Mount type C-mount Body material Metal...
-
Page 7: Microscope Kit
Aspect ratio 16:9 Brightness, cd/m2 Number of displayed colors 16.7m Contrast ratio 1000:1 Horizontal/vertical viewing 178/178 angle, ° Viewable screen size (WxH), mm 295x165 Pixel pitch (WxH), mm 0.154x0.154 Display refresh rate, Hz Type of matrix backlight LED backlight lifetime, h 50000 Interface HDMI... - Page 8 Fig. 1. MAGUS Bio VD300 LCD Microscope. View from the left 1. Eyepieces 8. Revolving nosepiece 2. Microscope head 9. Objectives 3. Coarse focusing tension adjusting knob 10. Illuminator 4. Coarse focusing knob 11. Camera locking screw 5. Fine focusing knob 12.
- Page 9 Fig. 2. MAGUS Bio VD300 LCD Microscope. View from the right 9. Aperture diaphragm control 1. Eyepiece tubes 2. Head locking screw 10. Phase-contrast slider 3. Coarse focusing lock knob 11. Filter 4. Coarse focusing knob 12. Condenser 5. Fine focusing knob 13.
-
Page 10: Microscope Parts
2 MICROSCOPE PARTS STAND The stand has stable ergonomic design. Parts attached to the microscope stand 7 (Fig. 1): – revolving nosepiece 8 (Fig. 1) with objectives – stage 8 (Fig. 2) – condenser 12 (Fig. 2) – lamp house 10 (Fig. 1) –... -
Page 11: Eyepieces
A camera (video-eyepiece) or an imaging system with a monitor is installed in the trinocular tube 12 (Fig. 1) of the microscope head using a C-mount 1x adapter. The light path splitting ratio: 50% trinocular tube, 50% eyepieces. EY EPI EC ES The microscope kit includes eyepieces 1 (Fig. -
Page 12: Stage
The camera is powered via a 12V/1A AC power adapter. MONITO R The monitor is designed to use a visualization system of the MAGUS microscope. It is connected to the camera mounted on the microscope to display the real-time images. -
Page 13: Brightfield Observation Procedure
Fig. 3. Assembling the microscope 8. Remove the desired dish holder 8 from the package and place it in the stage attachment for moving the specimen in X/Y directions. If you do not need to move the specimen in X/Y directions, loosen the screws and remove the attachment. -
Page 14: Adjusting The Condenser
A DJ U ST I N G T HE C ON D EN S ER Rotate the phase-contrast slider 1 to the center position corresponding to the transmitted light. Fig. 5. Adjusting the condenser ADJ U STI N G THE E YE P I ECE T UB ES Adjust the interpupillary distance. -
Page 15: Focusing On The Specimen
Fig. 8. Moving the specimen The stage attachment features an XY control system. The control knobs are coaxial – they are located on the same axis. The knob 2 controls longitudinal (Y-axis) movement, the knob 3 controls lateral (X-axis) movement. Moving range: 77mm in Y-axis direction and 112mm in X-axis direction. -
Page 16: Adjusting The Diopter
When using high magnification objectives, raise the objective all the way up by rotating the coarse focusing knob and enable the coarse focusing lock knob. After that, focus on the specimen using the fine focusing knob. Adjust the coarse focusing tension. The tension of the coarse focusing knob is adjustable and is preset by the manufacturer for convenient use. -
Page 17: Calculating The Total Magnification
CALCU LATI N G T HE TOTAL M AGN IF I CAT I ON The total magnification is the eyepiece power multiplied by the objective power. For example, if the eyepiece is 10х/22mm, and the objective is 40х/0.60, the total magnification of the microscope is 10х40 = 400х. -
Page 18: Using The Monitor
Do it as follows: – While observing the specimen through the eyepieces, find a distinctive point in the field of view (an easily identifiable target, such as point S in Fig. 13а), move the specimen on the stage so that the point is in the center of the field of view, as shown in Fig. -
Page 19: Phase-Contrast Technique
5 PHASE-CONTRAST TECHNIQUE The condenser allows utilizing the phase-contrast technique. Brightfield observations are performed as described above in the user manual. The following instructions apply only to the phase-contrast operation mode. Adjusting the phase-contrast device: 1. Fully open the aperture diaphragm 5. 2. -
Page 20: Using Optional Equipment
6 USING OPTIONAL EQUIPMENT EY EPIECE WIT H A SCA LE The eyepiece with a scale or reticle can be used to make comparative analysis of the linear dimensions of the individual components of an object. The scale is installed in the plane of the field diaphragm of the 10x eyepiece. The eyepiece 1 DIV. -
Page 21: Troubleshooting
7 TROUBLESHOOTING Potential problems and remedies are given in Table 3: Problem Cause Remedy ELECT RI CAL C OMPONENTS The ON/OFF switch is off Switch on the ON/OFF switch The fuse has blown Replace the fuse No illumination in the field Poor electrical contact Check all the connectors. -
Page 22: Scope Of Delivery
8 SCOPE OF DELIVERY The scope of delivery is listed in Table 4: Component Note MICROSCOPE MAIN COMPONENTS Stand with built-in power supply, transmitted light source, focusing mechanism, and condenser Trinocular microscope head Revolving nosepiece for 4 objectives Mounted on the stand Fixed stage Mounted on the stand Mechanical XY stage attachment... -
Page 23: Care And Maintenance
Wi-Fi USB-adapter EU-plug 12V/1A AC power adapter Flash drive with drivers and software Fasteners (mounting plate and screws) User manual MONITOR Monitor HDMI cable AC power adapter DC/DC Type-C adapter Fasteners (Allen wrench and screws) 9 CARE AND MAINTENANCE RE PL ACING T HE B ULB This microscope employs LED bulbs as a light source. -
Page 24: Magus Warranty
8. Periodic inspection: the microscope should be regularly inspected and serviced to maintain its performance. MAGUS WARRANTY MAGUS provides a 5-year international warranty from date of purchase (valid for the entire life of the instrument). The Levenhuk company warrants the product to be free from defects in materials and workmanship. The Seller warrants that the MAGUS product you have purchased meets specification requirements, provided that the Buyer complies with terms and conditions of transport, storage, and operation of the product. - Page 26 www.magusmicro.com...
