5. Connection and Disconnection

Refer to Section 1: Introduction for the list of
connection cable options and accessories.
Power to the AlphaCore
Power can be applied from two sources:
a mains cable and the internal battery. The
mains power input is 100-240Vac, 50-
60Hz. The battery is on continuous charge whilst
mains power is connected, and the AlphaCore
Controller turned on.
To connect the mains cable, hold the connector body
and push into the mains socket. To remove the cable,
hold the connector body and pull, do not twist or pull
by the cable.
The AlphaCore Controller can be powered via
5
other medical devices, provided that they have an
isolated earth.
Inspiration Healthcare Limited
W inspiration-healthcare.com
Controller
5
5
© 2021 Inspiration Healthcare Limited
Power from the AlphaCore
Connection cables are provided to take power and
control signals between the mattresses/blanket and
AlphaCore Controller .
5
Warning: Do not force the connector into
the socket. Ensure it is correctly orientated
by aligning the directional arrow on the
connector body with the marker on top of the terminal
housing.

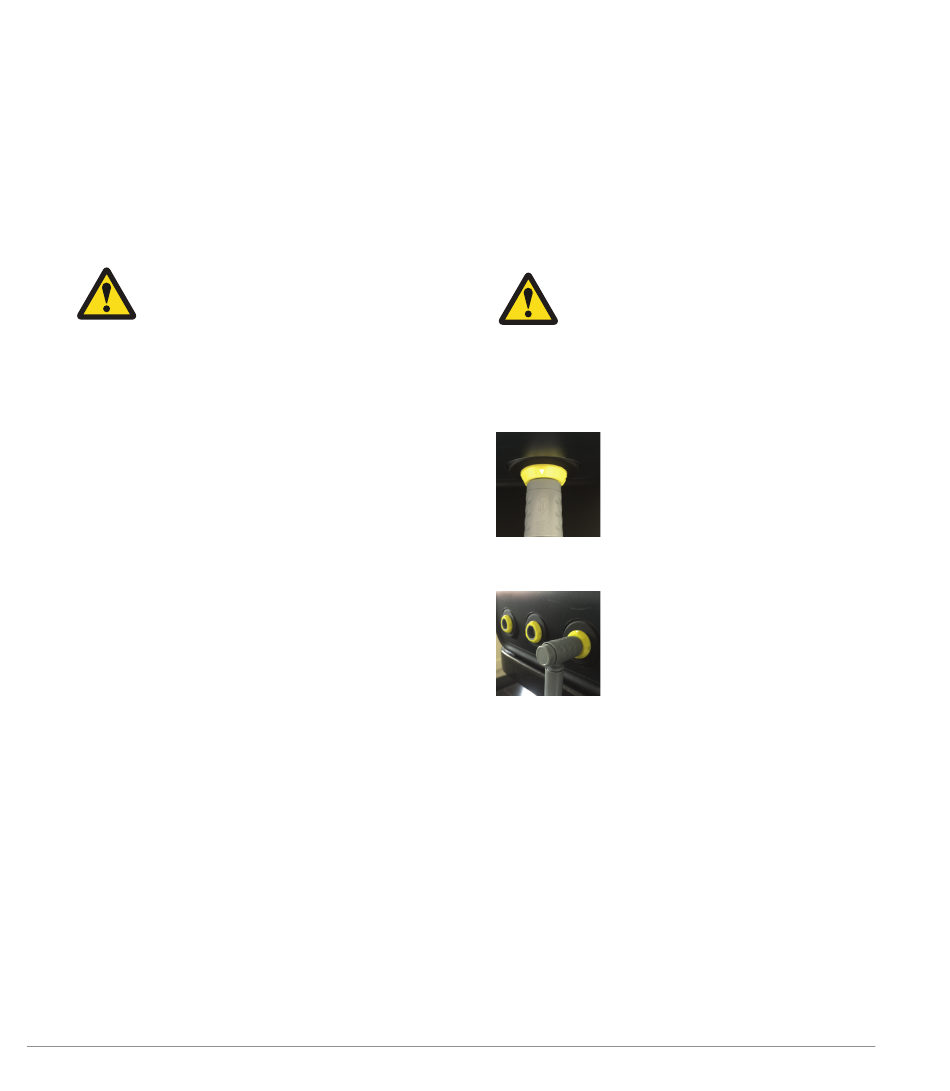

ODU Connector

For connection to the AlphaCore
Controller, there is a choice of right
angled and straight ODU-style
connectors which are colour coded
yellow. The right-angled connector is
designed to point the cable
downwards, away from the display.
The connector pushes into the
yellow terminals on the AlphaCore
Controller. The connectors are keyed
– align keying before pushing home
– never force connectors. To
disconnect, hold the main body of
the connector and pull. Do not twist
or force the connection.
Controller
5
5
5
700-307 Revision: 10
