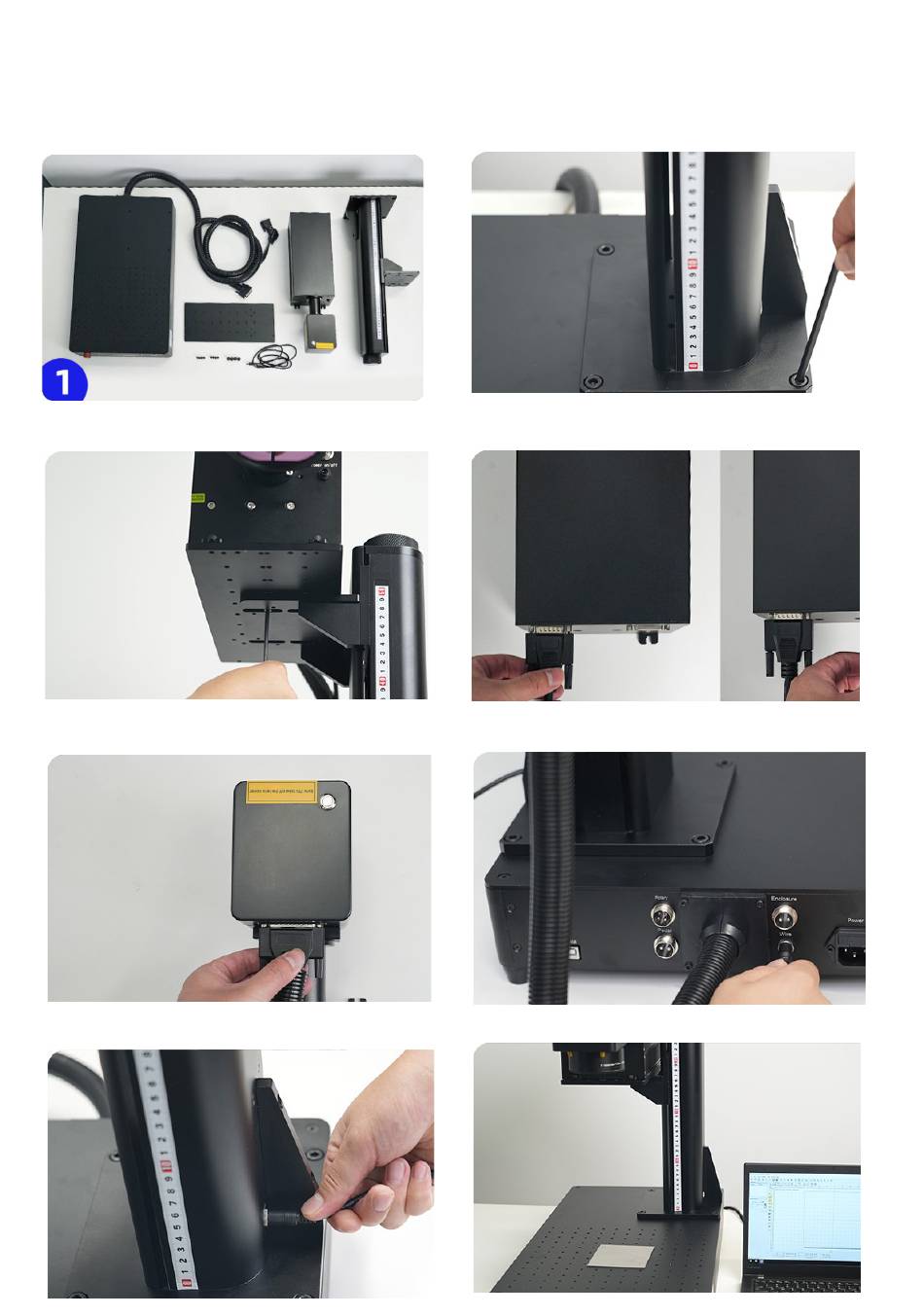

Assembly of Machine
1. Place the parts on the table.
3. Fix the laser head on the shelf
5. Connect the cable of galvanometer
7. Connect the wire on the supporting pole
2. Fasten the supporting pole with four screws.
4. Connect the external signal and power cables for
laser head
6. Connect the wire cable on the case
8. Connect the data cable with the computer
