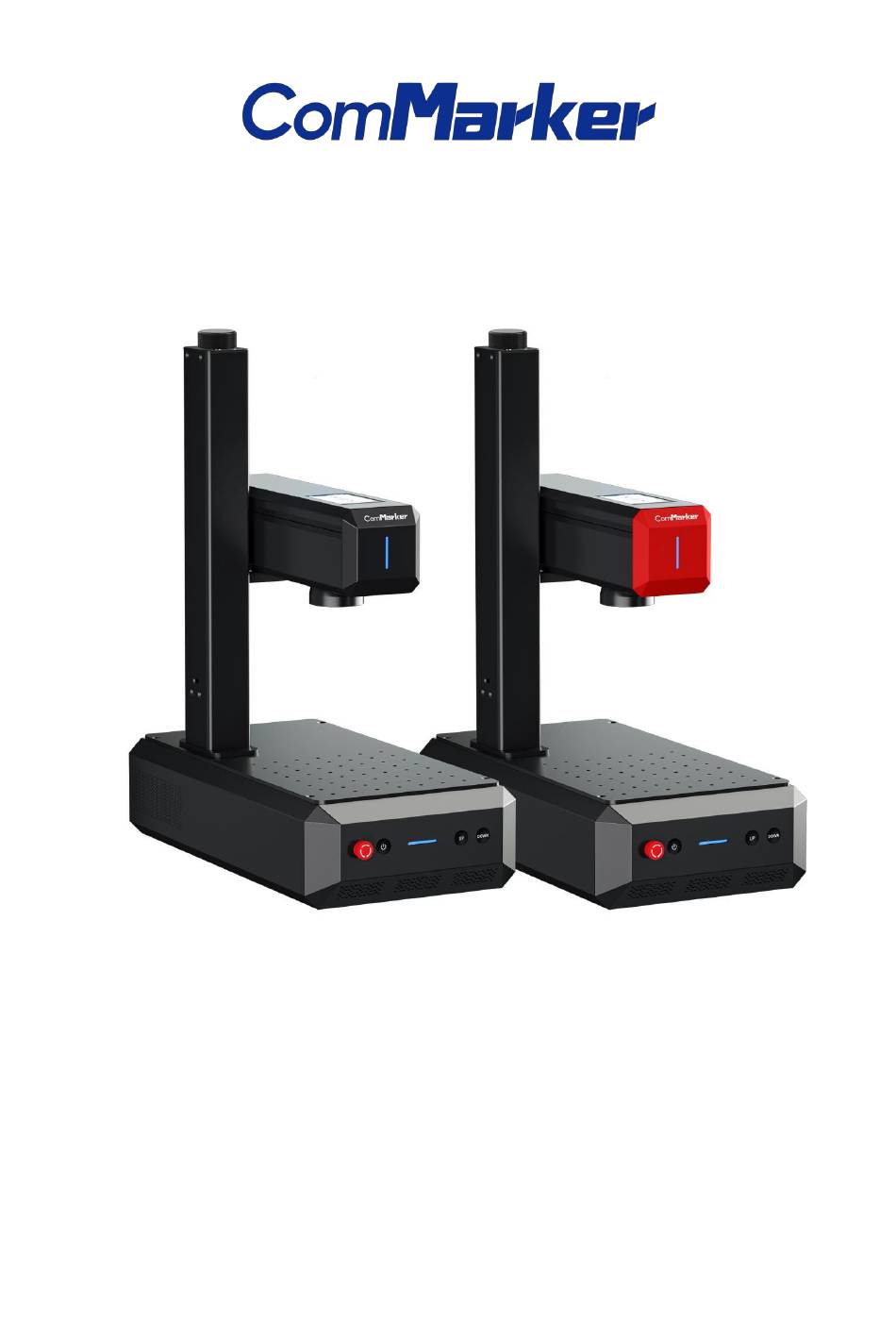

- Page 1 Laser Marking Machine Manual...
-
Page 2: Safety Warning
Safety Warning Before using the laser engraving machine, please read this safety guide carefully. ■ Do not leave the device unattended during operation. Pay attention to whether it is working properly. ■ Check the machine for damage every time before you use it. Do not operate it in any way when any damage or defect is found. -
Page 3: Product Structure
Product Structure - 2 -... -
Page 4: List Of Items
List of items Specifications Model 20w MOPA 30W MOPA 60W MOPA Laser Type Fiber Mopa fiber Working Area 15cm x 15cm（Optional: 11cm x 11cm/15x 15cm/30x 30cm） Wavelength 1064nm Frequency 20-60kHz 40-60kHz 50-80kHz 1-4000kHz Pulse Width 70-110ns 100-120ns 80-110ns 2-500ns Max Pulse Energy 0.7mJ 0.75mJ 0.8mJ... - Page 5 Assembly of Machine 1. Place the parts on the table 2. Fix the supporting shelf onto the supporting pole 2 Screws M5 x 12 3. Put the laser head on the supporting shelf 4. Fasten the supporting pole with the screws and fasten the screws to fix the laser head 4 Screws M5 x 14 4 Screws M5 x 10...
- Page 6 Assembly of Auxiliary Riser (Optional) 2. Disassemble the supporting pole 1. In case of engraving a big object, the supporting pole needs to be extended with a riser 3. Make sure the side with the threaded holes 4. Fix the riser on the base board. face upwards.
- Page 7 Replacement of the 300mm x 300mm Working Area Field Lens The relative position of laser head needs to be adjusted so as to achieve bigger engraving area The specific operation steps are as follows: 2. Fasten the 300mm screws lens 1.
- Page 8 Machine Operation Instructions 1. Install the driver Note: please conduct the following operation before installing the driver 1) The machine is on; 2) Keep the emergency button not pressed; 3) Data cable with the computer is connected ; 4) The Type-C data cable connecting the column to the back of the machine is attached 1.Right-click "this PC", click "Manage"...
- Page 9 5.Find the corresponding file with window system in the 6.Click "Install" USB drive, click OK 7.Click “finish” if it is successful 8.It will display "BJJCZ Device" in Device Manager Noted: *It is recommended to copy and paste the files of the USB disk to the computer desktop or other computer disks. Note: If the driver installation is unsuccessful, please refer to FÃQ - 8 -...
- Page 10 2. Open the software Open the USB folder, open the "EZCAD for ComMarker" folder, open the software “EZCAD2”. You can enter "text", import "picture" or "vector file" as shown in the figure below. It is recommended to select the text to test first.
- Page 11 The sensor is not at the center of the engraving area. Please place the material directly under the red dot before pressing the “Auto” button for accurate focusing. After auto-focusing, the material can be moved if necessary For B6 Press up or down button to lift or lower the laser head until the two red light point overlap, this is the best focal point.
- Page 12 Auto Focus Setting (Optional) Setting of auto focus software is optional because the machine was well set before sending out. The following instruction is for your reference just in case something goes wrong with the machine Controlling Page Lift up: the laser head will go up when pressing the button Auto focus: the laser head will move the right focal length according to the original setting Lift down: the laser head will go down when pressing the button WARNING: The sensor in the machine only works in the range of 120mm to 280mm;...
- Page 13 Setting Page Speed: Input Number from 1 to 10, with 1 as the fastest, 10 as the slowest. Suggest inputting 10 for B6 Screw pitch: input the distance between two adjacent threads on a screw. It is 8mm for ComMarker B6 Pulse count：Input the number of pulses required for the stepper motor to complete one revolution.
- Page 14 Lightburn icon to the Applications folder y-before-you-buy 3.Copy the folder “EZCAD for ComMarker B6” from the USB 4. A device window will pop out if the software is open the to the desktop first time, click “Create Manually”, Select “JCZFiber”...
- Page 15 11. Go to “Basic Settings” from “Device setting” button, click 12. Change the setting of Freq “Min 20”, “Max 200”. Switch “Load COR file”, Select “EZCAD for ComMarker B6”, Choose on “Galvo 2”. And it is ready to control the machine with file “JCZ15.cor”, Click “OK”...
- Page 16 Special Setting for JPT MOPA fiber 13. Change the setting of Freq “Min 1”, “Max 4000”. Switch on “Galvo 2”. Switch on the button “Enable Q-Pulse Width Setting” (Make sure the Fiber Type is “IPG _YLP” or “JPT”) Lightburn Operation Tutorial (For Window system) Refer to the operation on MacOS, please don’t forget to install the driver when installing Lightburn software as the following picture shows: - 15 -...
-
Page 17: Customer Service
Customer Service: For more video and supportive materials, please visit our official website at: www.commarker.com For Laser Engraver technical support and service please email: support@commarker.com...
