Summary of Contents for DKN technology SMART LAT PULLDOWN

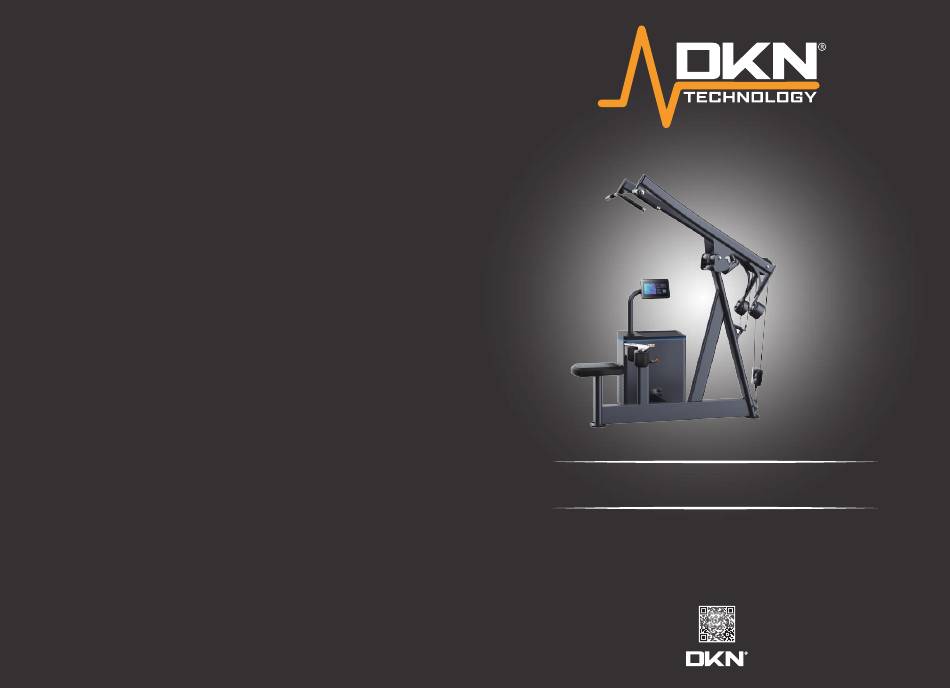

- Page 1 SMART LAT PULLDOWN 20812 OWNER’S MANUAL WEBSITE...
- Page 2 Introduction Installation Indication As shown in the diagram: 1. Stand base 2. Base communication terminal 3. Stand communication terminal 4. M8*10 internal hexagon socket button head screw 5. Display stand Step 1: First, insert the base communication terminal (2) into the stand communication terminal (3) as shown in the diagram.
-
Page 3: Safety Precautions
As shown in the diagram: As shown in the diagram: 1: Cable 1: Cross recessed pan head screw M4*8 2: Connecting pipe 2: Display back cover 3: M12 flat washer 3: Cross recessed pan head screw M3*6 4: M12 spring washer 4: Stand communication terminal Step 1: First, power on the device (do not operate the interface). -
Page 4: Preparation Before Use
9.Please make sure to read all instructions before use. The factory is not responsible for Operating Instructions any personal injury or property damage caused by improper use of this product. Preparation before use: 10.The power plug must be reliably grounded, and try to avoid using other electrical appliances on the same power supply line. -
Page 5: Mode Description
Mode Description: LED Light Description : We provide four resistance modes for the product, namely Standard Mode, Eccentric Mode, Isokinetic Mode, and Elastic Mode. Please refer to the following instructions for Remark State Color specific modes: Gradient effect Blue Powered on, resistance not activated (dark to light, light to dark) Mode Code... -
Page 6: Assembly Step
Assembly Step 1 7. Pay attention to the order of locking nuts when installing. Do not lock the nuts being installed until the entire equipment is installed. Only lock the nuts one by one after the entire machine is installed. Step Description Specification... - Page 7 Assembly Step 2 Assembly Step 3 Step Description Specification Step Description Specification Connection shaft Counter weight Left pulldown frame Hex socket head cap screw M10*85 Right pulldown frame Plain washer Ф20*Ф10.5*2 Plastic washer Nylon insert lock nut Circlips for shaft DO-25...
- Page 8 Assembly Step 4 Assembly Step 5 Step Description Specification Step Description Specification Thigh pad adjusting frame Shoulder pad subplate Nylon subplate Aluminum bush Limiting screw Hex socket head cap screw M10*35 M10 Big washer Ф25*Ф10.5*2 Srping washer Two-sided gear washer Ф10.5*Ф16*1 Shoulder pads Countersunk hex socket screws...
- Page 9 Assembly Step 6 Assembly Step 7 Step Description Specification Step Description Specification Hex socket head cap screw M8*30 Cable Set 2 φ6.3 Ф16*Ф8.4*16 M8 Plain washer Cable set 1 φ6.3 Correct Mistake Mistake Correct Cable Cable limiting Post limiting Post...
- Page 10 Maintenance Attentions Assembly Step 8 Daily Maintenance: 1.Clean the seat pad,back pad and cushion with warm water and soft cloth in order to avoid the sweat erosion to these component . 2.Clean the frame with warm water and soft cloth 3.Cleaning chrome plated parts:wipe them with alcohol moistened soft cloth Monthly Maintenance: 1.Check transmission cable .Check the tightness and abrasion of the cable...
