bouncepad Utility Line Assembly Instructions

Utility Range - Grip
Assembly Instructions
Tools required for
Desk/ Wall Mount:
• Drill with 4mm and 6mm bits
• Screwdriver
• Pencil
* Other components do not require any tools
Sheet Code: BP-IM-076_REV3
Release Date: 22/11/2022
Copyright 2022 Spotspot Ltd. (T/A
Bouncepad) all rights reserved.
Confidential, no part of this publication
may be reproduced or transmitted in any
form without the written permission of the
copyright holder.

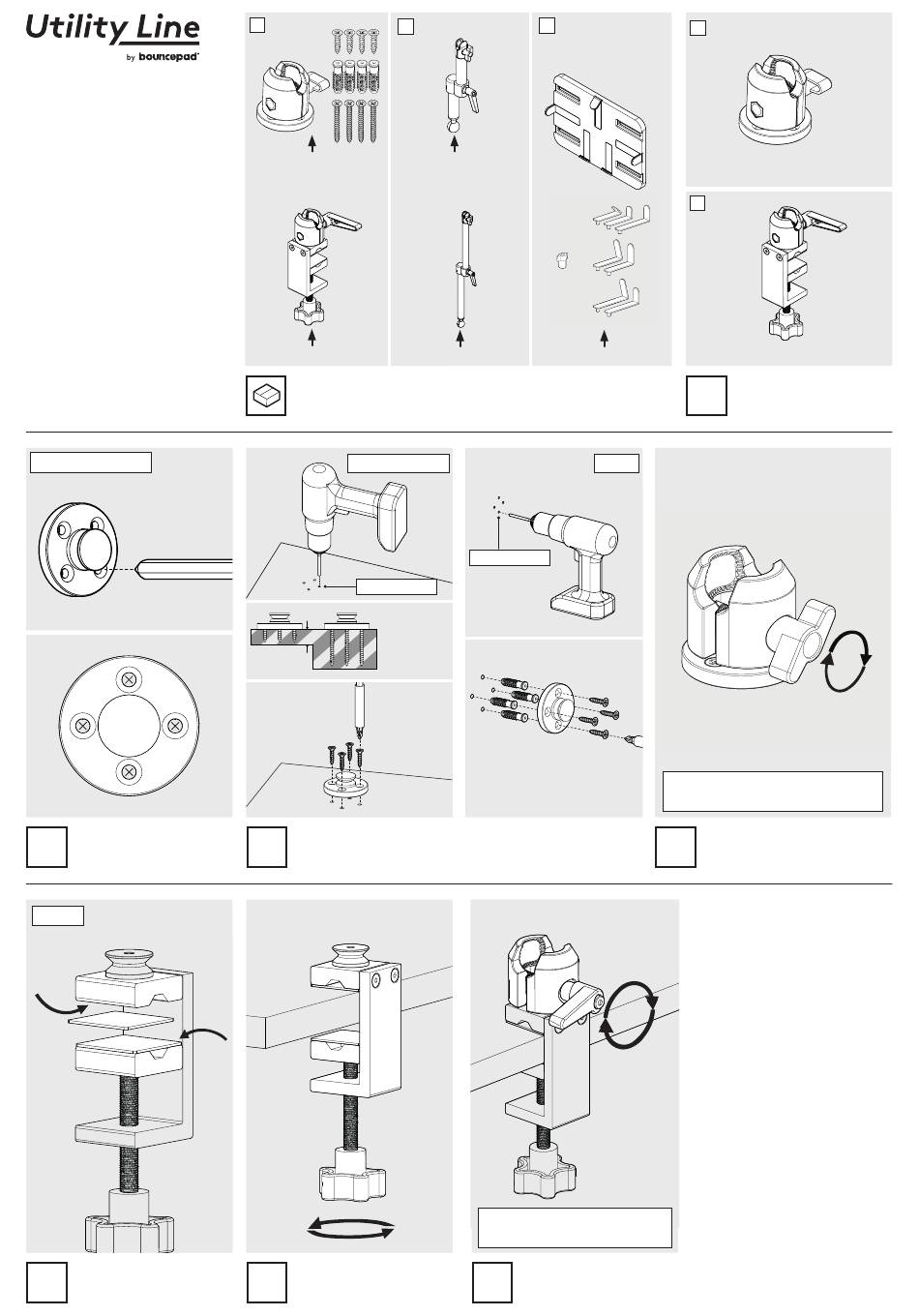

Desk / Wall Mount
Using the Baseplate as
A1
a guide, mark the drill
holes.
Clamp
Stick the Rubber
B1
Adhesive Pads onto the
Clamp faces.
01
02
Desk / Wall Mount Dual Arm 140mm
Or
Clamp Dual Arm 400mm
In the Boxes
Solid Surfaces
Drill 4x
holes
Ø4mm Drillbit
For surfaces
30mm
deeper than
30mm use
the longer
No.8x45mm
screws for added
stability
Attach
Baseplate
using correct
length Screws
Drill 4x holes with a 4mm drill bit or a 6mm bit. Then
A2
fasten the Baseplate as detailed using a Screwdriver.
Use the Handle to clamp
B2
the component onto the
surface.
03
Or
Tablet Mount
Walls
Drill 4x holes
Ø6mm Drillbit
Attach Baseplate using
Rawlplugs and No.8x25mm
Screws
Clamp complete - Skip to step
2 to complete assembly.
Attach the upper Clamp
B3
to the Assembly by
twisting the handle.
A
Desk / Wall Mount
B Clamp
* Clamp suitable for surfaces 38mm
Follow instructions-A for
1
Desk/Wall Mount and
instructions-B for Clamp.
Twist clockwise
to tighten
Desk / Wall Mount complete - Skip
to step 2 to complete assembly.
Attach the Clamp to the
A3
Baseplate by twisting the
Handle.
