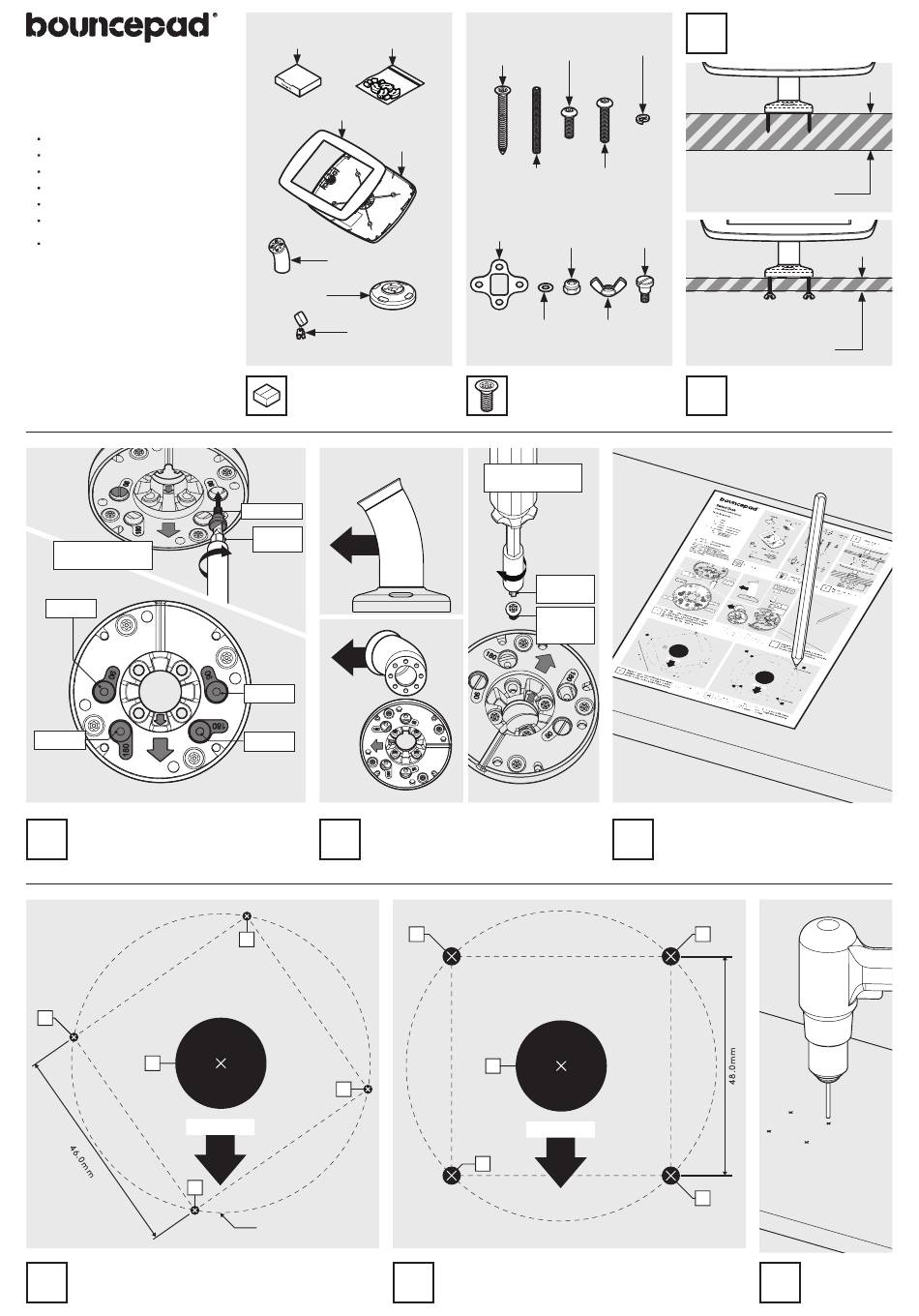

bouncepad Swivel Desk Assembly Instructions

Swivel Desk
Assembly Instructions
Tools Required:
Pencil
Electric Drill
Socket Driver
7mm Spanner
*or adjustable spanner
5.0mm Drillbit
*if fixing from below
2.5mm Drillbit
*if fixing from above
16mm *if routing the tablet
cable through your
Holesaw
mounting surface
Sheet Code: BP-OR-IM-040_REV1
Release Date: 26/09/2019
Copyright 2016 Spotspot Ltd. (T/A
Bouncepad) all rights reserved.
Confidential, no part of this publication
may be reproduced or transmitted in any
form without the written permission of the
copyright holder.
Tighten screw(s) using hand
tools, using electric tools may
damage your Bouncepad.
90˚ limit screw
position
180˚ limit screw
position
Configure the rotation range - both
arrows must be pointing in the same
1
direction. Default configuration is
270˚. Insert 2x limit screws.
A
C
A
Mark 'A' positions for "Fixing from above"
A1
(Ø2.5mm drillbit). Mark 'C' for the cable hole.
(Ø20.0mm Holesaw).
Fixings Kit Tablet Set-up Kit
Faceplate
Desk Mounting Arm
Rotate
Pair of Keys
In the Box
Limit Screw
Slotted
Driverbit
90˚ limit screw
position
180˚ limit screw
position
Attach the mounting arm. The
2
mounting arm must forward lean in
the same direction as the two arrows.
A
A
Front
Ø65.5mm
4x No.8
4x M4x16mm
Countersunk,
buttonhead
self tapping
screw
Screw
Case
4x M4x40mm
Socketset
screw
4x M4
1x Case
Locking
washer
nut
4x M4
Washer
Fixings List
* Due to the modular nature of our product range
you may receive additional fixings in the fixings kit
Tighten screw(s) using hand
tools, using electric tools may
damage your Bouncepad.
T20 Pin Torx
Driverbit
M4x16mm
Buttonhead
screw
B
C
Front
B
Mark 'B' positions for "Fixing from above"
B1
(Ø5.0mm drillbit). Mark 'C' for routing the cable
hole. (Ø20.0mm Holesaw).
Follow steps A if "Fixing
A
4x M4 Split
from above".
washer
Minimum Mounting
surface thickness :
4x M4x20mm
Buttonhead
Metric
screw
34
2x Limit
screw
Maximum Mounting
surface thickness :
4x M4
Wing nut
Metric
25
Follow steps B if "Fixing
B
from below".
Using the hole template (see step A
3
or B), mark the hole positions specific
to your chosen fixing method.
B
B
Imperial
1
mm 5/16"
Imperial
1"
mm
Drill the
4
required
holes.
