Whalen ARAVC70M-7 Instruction Booklet

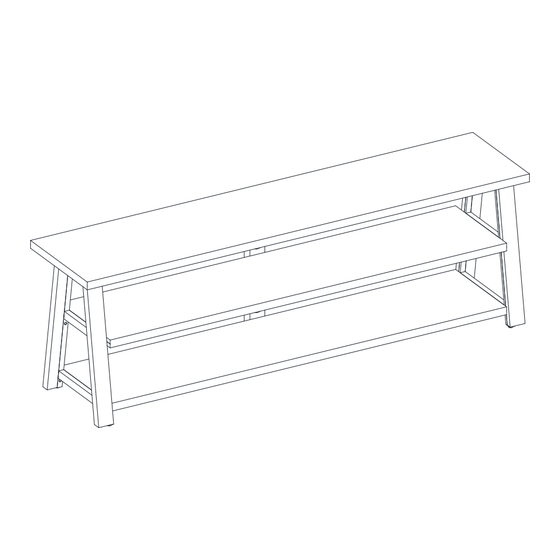

70" tv stand
Hide thumbs

Advertisement

Quick Links

Download this manual
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions and
parts list ready to provide the model name, part name or factory number:
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
70" TV Stand
Model # ARAVC70M-7
ADULT ASSEMBLY REQUIRED
1-866-942-5362
www.whalenfurniture.com
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2022-04-25
LOT NUMBER:
DATE PURCHASED: /
Rev. 0001-A
/

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARAVC70M-7 and is the answer not in the manual?

Questions and answers

Related Manuals for Whalen ARAVC70M-7

Summary of Contents for Whalen ARAVC70M-7

  • Page 1 LOT NUMBER: DATE PURCHASED: / 70" TV Stand Model # ARAVC70M-7 ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our customer service number and have your instructions and...
  • Page 2 G E N E R A L I N F O R M A T I O N , T I P S A N D T R I C K S 1. Please read the Assembly Instructions prior to assembling this product. 2.
  • Page 3 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Top Panel (Qty. 1) B- Middle Shelf (Qty. 1) C- Bottom Shelf (Qty. 1) D- Side Frame (Qty. 2) E- Left Front/Right Back Leg (Qty.
  • Page 4 Assembly Instructions The metal frame will face the floor when the unit is turned upright. NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. 1.
  • Page 5 Assembly Instructions The metal frame will face the floor when the unit is turned upright. 5. Fasten the Bottom Shelf (C) to the Spine (G) with two 1” Bolts (2). 6. Orient and attach the Left Legs (E and F) to one Side Frame (D) with six 3/4” Bolts (5). 7.
  • Page 6 Assembly Instructions A/B/C 8. Align and attach the assembled Side Frames (D) to the lower Shelves (B and C) with eight 1” Bolts (2). Make sure that the mounting holes on the top rail overlap the threaded sockets underneath the top metal frame preoperly.
  • Page 7 Assembly Instructions 10. Orient and attach one Shelf Support (H) between Top Metal Frame (A) and the Spine (G) with three 5/8” Bolts (1), three Lock Washers (3) and three Flat Washers (4). 11. Repeat the same procedure to attach the other Shelf Support (H) between the Middle Shelf (B) and the Spine (G).

  • Page 8: Back View

    Assembly Instructions Back View 13. Ask for assistant from other people, turn the unit upright. 14. Attach two Cable Wheels (I) to the backside of the Spine (G) with four 5/8” Bolts (1). Tighten the bolts with the hex wrench provided. NOTE: You can use the Cable Wheels to help keep your entertainment center’s cables and cords organized.
  • Page 9 Assembly Instructions NOTE: To prevent your TV from tipping, you must follow these instructions if you place a flat panel television on top of your console. Otherwise, remove the acrylic stopper template directly 15. Remove the paper backing from the Acrylic Stopper (7), then properly align the Acrylic Stopper into the cut-out on the acrylic stopper template on the Top Panel (A).
  • Page 10 Assembly Instructions Wooden stud Wall Pre-attached bolt Wall Spine Floor leveler Metal bracket Long screw Nylon strap Tools required (not provided): Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit. 17. Position the unit at the desired location against a wall. If necessary, adjust the Floor Levelers (6) at the bottom of the Side Frams (D) to level the unit.

  • Page 11: Care And Maintenance

    Care and Maintenance  For everyday cleaning, chrome, brass, aluminum, and painted metal surfaces can be kept looking their best by wiping with a slightly damp, soft cotton cloth or vacuum cleaner brush.  If soiled, wipe with clean sponge or cloth wrung out of water. Wipe dry with cloth or paper towel to avoid water spots.

  • Page 12: Quality Guarantee

    Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
