Whalen AVCEC54-AT Assembly Manual

Table top console
Hide thumbs

Advertisement

Quick Links

Download this manual

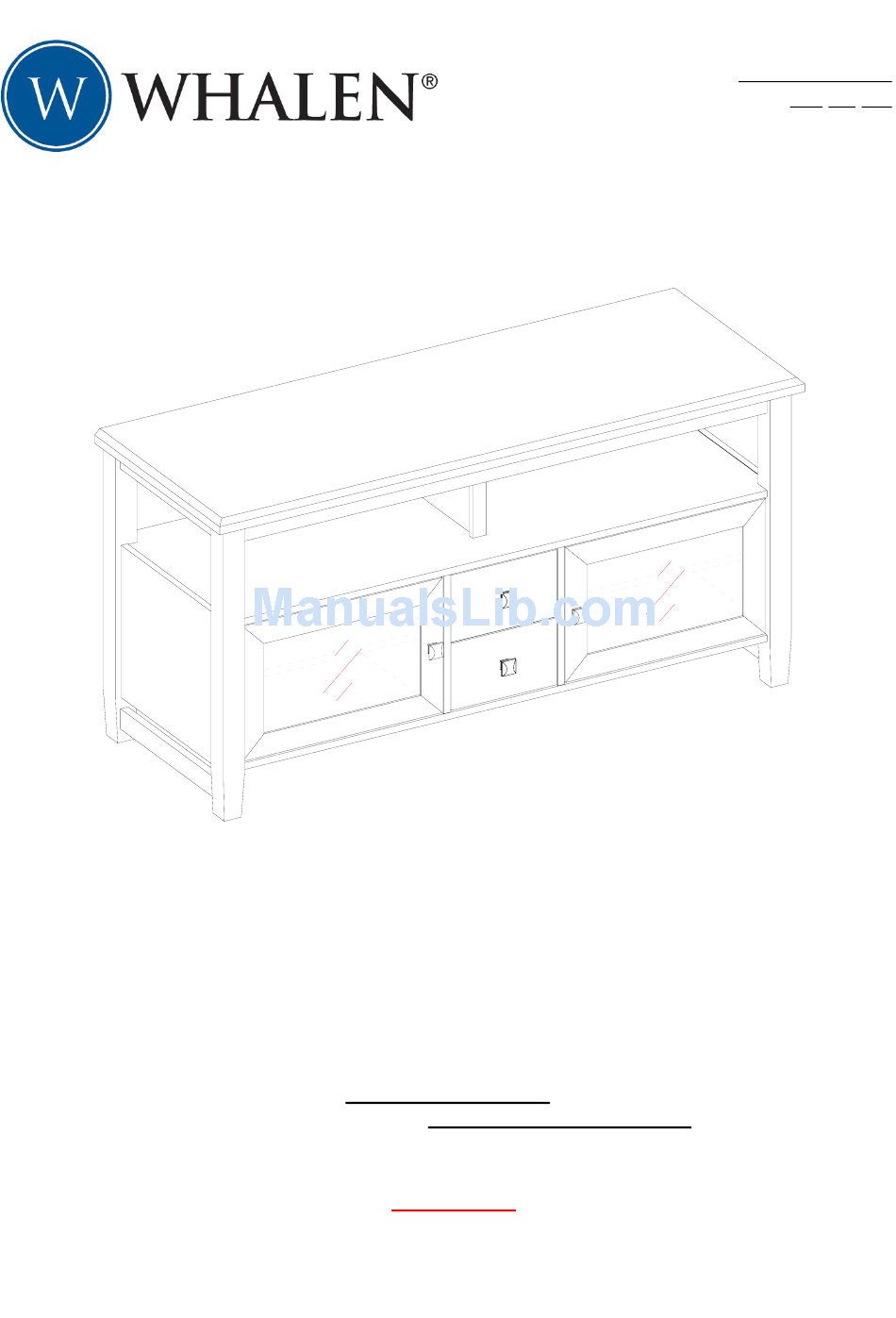

Table Top Console
Model # AVCEC54-AT
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Mfg., Inc.
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or e-mail your request to parts@whalenfurniture.com
1-866-942-5362
www.whalenstyle.com
Page 1
LOT NUMBER:
DATE PURCHASED:
Factory No. 15548
/
/

Advertisement

loading

Related Manuals for Whalen AVCEC54-AT

Summary of Contents for Whalen AVCEC54-AT

  • Page 1 LOT NUMBER: DATE PURCHASED: Table Top Console Model # AVCEC54-AT ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our customer service number and have your instructions...
  • Page 2 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Mfg., Inc. CATALOG: Table Top Console (AVCEC54-AT) DATE OF MANUFACTURE: August 2013 MADE IN CHINA FITS UP TO MOST 60”...
  • Page 3 Model # AVCEC54-AT Important Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non- abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.
  • Page 4 Model # AVCEC54-AT Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Top Panel (1) B- Fixed Shelf (1) C- Bottom Panel (1) D- Left Side Frame (1)
  • Page 5 Model # AVCEC54-AT Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. (1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel (4) M6 x 20 mm Bolt...
  • Page 6 Model # AVCEC54-AT Assembly Instructions Door Hinge Base (6 used in this step) ⑱ 1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratch.
  • Page 7 Model # AVCEC54-AT Assembly Instructions Magnetic Catch #5 x 5/8” Pan Head Screw (3 used in this step) (6 used in this step) ⑬ ⑨ 4. Align three Magnetic Catches (13) to the pilot holes on the Fixed Shelf (B) with the magnetic plates facing the finished edge.
  • Page 8 Model # AVCEC54-AT Assembly Instructions Cam Bolt (30 used in this step) ② 5. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A), the Fixed Shelf (B), the Side Frames (D and E) and the Upper Partition Molding (I), as shown the illustration above.
  • Page 9 Model # AVCEC54-AT Assembly Instructions Cam Lock M8 x 30 mm Wood Dowel (4 used in this step) (4 used in this step) ① ③ 6. Insert 2 Wood Dowels (3) into the inner holes on the top edge of the Left Lower Partition Panel (F).
  • Page 10 Model # AVCEC54-AT Assembly Instructions M8 x 30 mm Wood Dowel (3 used in this step) Cam Lock ③ (2 used in this step) ① #10 x 1-1/2” Screw (2 used in this step) ⑦ 9. Fasten the Upper Partition Molding (I) to the Upper Partition Panel (H) using one Wood Dowel (3) and two Cam Locks (1).
  • Page 11 Model # AVCEC54-AT Assembly Instructions Wood Dowel #10 x 1-1/2” Screw (4 used in this step) (4 used in this step) ⑦ ③ 12. Align and attach the Bottom Panel (C) to the Lower Partition Panels (F and G) using four Wood Dowels (3) and four 1-1/2”...
  • Page 12 Model # AVCEC54-AT Assembly Instructions M8 x 30 mm Wood Dowel (12 used in this step) ③ Cam Lock (8 used in this step) ① 13. Insert the Wood Dowels (3) into the inner holes of the Fixed Shelf (B) and the Bottom Panel (C) at both ends.
  • Page 13 Model # AVCEC54-AT Assembly Instructions 17. Tightly screw the Support Foot (R) into the threaded insert on the Bottom Panel (C) and set the attached floor leveler to the correct height. Please call for replacement parts or assistance: 1-866-942-5362 Whalen Furniture Mfg., Inc.
  • Page 14 Model # AVCEC54-AT Assembly Instructions Cam Lock (4 used in this step) ① 18. Stand the assembled unit upright. 19. Secure the Top Front and Back Stretchers (J and K) to the Side Frames (D and E) by engaging four Cam Locks (1).
  • Page 15 Model # AVCEC54-AT Assembly Instructions Cam Lock (12 used in this step) ① M8 x 30 mm Wood Dowel (12 used in this step) ③ 20. Insert the Wood Dowels (3) into the top holes of the last assembly. As shown above.
  • Page 16 Model # AVCEC54-AT Assembly Instructions 1/2” Washer Head Screw 19 mm Ring Shank Nail (6 used in this step) (24 used in this step) ⑩ ⑧ 22. Now, go back and securely tighten all Cam Locks and Wood Screws. Make sure that all the parts are tight and there are no gaps between the parts.
  • Page 17 Model # AVCEC54-AT Assembly Instructions M6 x 20 mm Bolt (4 used in this step) ④ 25. Attach 2 Cable (S) to the backside of the unit with four M6 x 20 mm Bolts (4) provided. You Wheels can use the Cable s to organize your cables and cords.
  • Page 18 Model # AVCEC54-AT Assembly Instructions N/O/P N/O/P Hinge Arm (6 used in this step) Strike Plate 1/2” Zinc Screw 1/2” Black Screw (3 used in this step) (12 used in this step) (3 used in this step) ⑱ ⑤ ⑭...
  • Page 19 Model # AVCEC54-AT Assembly Instructions N/O/P 29. Pick up the Left Door (N) and attach the extended Hinge Arms to the Hinge Bases installed on the Left Side Frame (D). Loosen the lock bolt on the back of Hinge Base for an easy fit. Align and insert the “U”...
  • Page 20 Model # AVCEC54-AT Assembly Instructions N/O/P Handle Bolt Shelf Pin Door Handle Cam Lock Cover (4 used in this step) (12 used in this step) (4 used in this step) (32 used in this step) ⑰ ⑯ ⑫ ⑪ 32. Attach the Door Handles (16) to the front side of the Door Panels (N, O and P) with the provided Handle Bolts (17).
  • Page 21 Model # AVCEC54-AT Assembly Instructions Acrylic Stopper (1 used in this step) ⑮ NOTE: You must install the Acrylic TV Stopper to prevent the TV from tipping when placing your flat panel television directly on the console. 35. Remove the tape of the Acrylic Stopper (15) and place it in the cut-out of the Acrylic Stopper Template on the Top Panel (A).
  • Page 22 Model # AVCEC54-AT Assembly Instructions Tools required: Phillips Screwdriver, Power Drill, 3/8” Drill Bit and Rubber Mallet. 37. Ask for assistance to position the assembled console at the desired location against a wall. If necessary, adjust the pre-attached Floor Levelers at the front bottom of the Side Frames (D and E) to level the unit.

  • Page 23: Care And Maintenance

    Should this product be defective in workmanship or materials, or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
