快速服务100%
包缝机
Overlock Sewing Machine
C6系列
C6 Series
产品使用使用说明书 Preduct Users' Manual
使用说明和零件样本下载地址：
PLEASE DOWN LOAD THE MANUAL AND SPARE PAPTS FROM THE FOLLOWING WEBSITE:
POR FAVOR DESCARGAR EL MANUAL Y LIBRO DE PARTES Y REPUESTOS LO SIGUIENTE EN SITIO WEB:
Пожалуйста, загрузите руководство и каталог запасных частей на веб-сайте：
HTTP：//download.chinajack.com
产品标准代号：QB/T1515-2005
Standard code of the products：QB/T1515-2005
●公司地址(Address of Company)：
中国浙江省台州市椒江区三甲东海大道东段1008号
NO.1008，DONGHAI AVENUE EAST,JIAOJIANG DISTRICT,TAIZHOU CITY,ZHEJIANG
邮编(Zip Code)：318000
●国内销售部(Domestic Trade Department):
电话(TEL)：0086-0576-88177780 88177789
传真(FAX)：0086-0576-88177758
●国贸部(International Trade Department)：
电话(TEL)：0086-0576-88177782 88177774
传真(FAX)：0086-0576-88177787
●免费售后服务电话：400-8876858
HTTP：www.chinajack.com
●资料如有更改，恕不另行通知，以实物为准。
You will be not informed if the file has been revised.
Please set sample as standard.

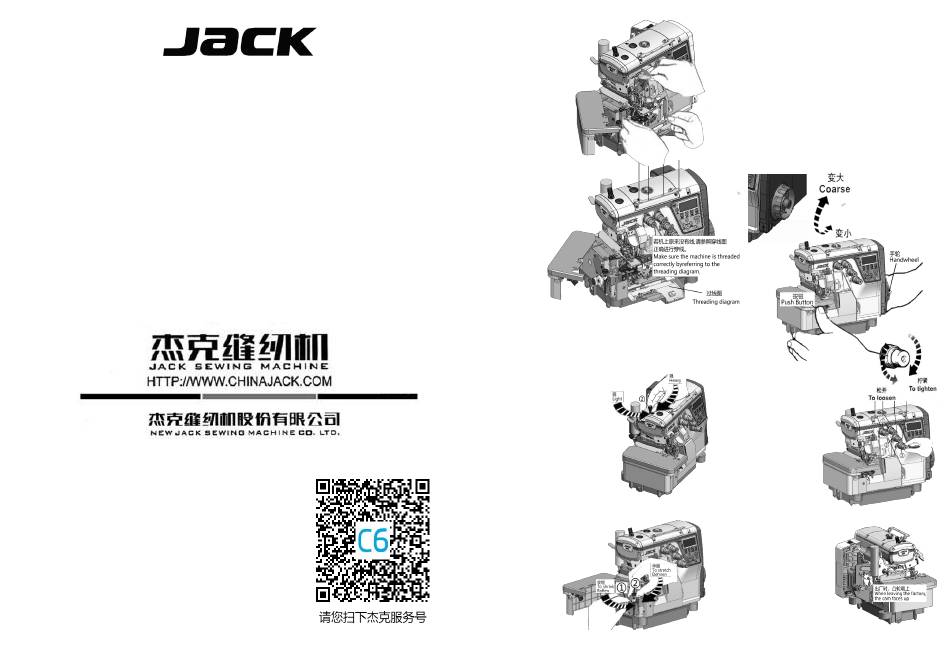

穿线的方法 Threading
打开压脚杆及机盖(三处)
Open three cover.Put
the presser foot aside
把机上原有的线与缝纫
用线绑在一起。
Knot the preset thread
and the thread being
used together to
thread the machine.
针线
将线拉到针眼前，剪掉
结头再次穿好针线。
Needle thread
Trim the knots off
neatly before passing
through the eye of
the needle to
rethread.
弯针线
线拉出接头后用剪刀剪掉接头
Looper thread
Trim the knots off neatly after passing through
the eye of the looper.
压脚压力的调节
Adjusting the presser foot pressure
压脚压力的调节，松动螺母①，
调节螺母②，在送布得到稳定
状态下尽可能使用较弱的压力为好。
Loosen adjusting nut①and turn
adjusting nut② to adjust the
presser foot pressure.It should
be as light as possible yet be
sufficient to obtain the proper
stitch formantion.
差动比的调节
Adjusting the differential ratio
差动比的调节，松开螺母①，
调节螺母②。
Loosen the adjusting nut①
and turn the adjusting
nut② to adjust the
differential
feed ratio.
针脚长度的调节
Adjusting the stitch length
1、按住按钮，旋转手轮，按钮会陷进更深处。
2、这时边按住按钮，边转动手轮，使校准标记号对准
希望的数值。
While pressing the push button,turn the hangwheel
to seek the position at which the push button goes
further into the depth.
Then,keeping the push button pressed,turn the
handwheel and set the desired scale to the aligning
mark.
注：针脚长度的调节务必请在调节差动比之后进行。
线状态的调节
Adjusting the thread tension
线张力状态的调节，请用针线调节
螺帽①，上弯针线调节螺帽②，
下弯针线调节螺帽③。
Make tension adjustments
with theneedle thread
knob①,the upperlooper
knob② and the lower
looper knob③.
凸轮的初始位置
The initial position of the cam
缝纫机通电前检查凸轮箭头
是否朝上，确保凸轮朝上后
再接通电源。
Check that the cam arrow is
facing up before the sewing
machine is powered on.
Make sure it is facing up
before turning on the power.
注：凸轮出厂位置朝上。
