F5 Control Box Manual Book
SAFETY INSTRUCTION
· Before using this product, please read the product manual and the mechanical manual of the
matching sewing machine.
· This product must be installed or operated by professionally trained personnel.
· Please keep away from arc welding equipment as far as possible to avoid misoperation caused
by electromagnetic wave interference with the controller.
· Please do not use it in places where the room temperature is above 45 °or below 0 °.
· Please do not use in places with humidity below 30% or above 95% or with dew&acid mist.
· When installing the control box and other components, please turn off the power and unplug
the power plug first.
· In order to prevent interference or leakage accidents, please do a good job in grounding
engineering. The grounding wire of the power line must be firmly and effectively connected
with the earth.
· All spare parts for maintenance shall be provided or approved by the company before use.
· Before carrying out any maintenance action, the power supply must be turned off and the
power plug must be unplugged. There is a danger of high voltage in the control box. You must
turn off the power for five minutes before opening the control box.
1. Installation
1.1 Product specification
1.2 Connection of interface plug
Insert the connecting plugs of the pedal and the head into the corresponding socket
behind the control box. The name of each socket is shown in Figure 1-2. After connection,
please check whether the plug is firmly inserted.
220V Control box specification
Power voltage
Power frequency
Max output power
110V Control box specification
Power voltage
Power frequency
Max output power
○
1
○
2

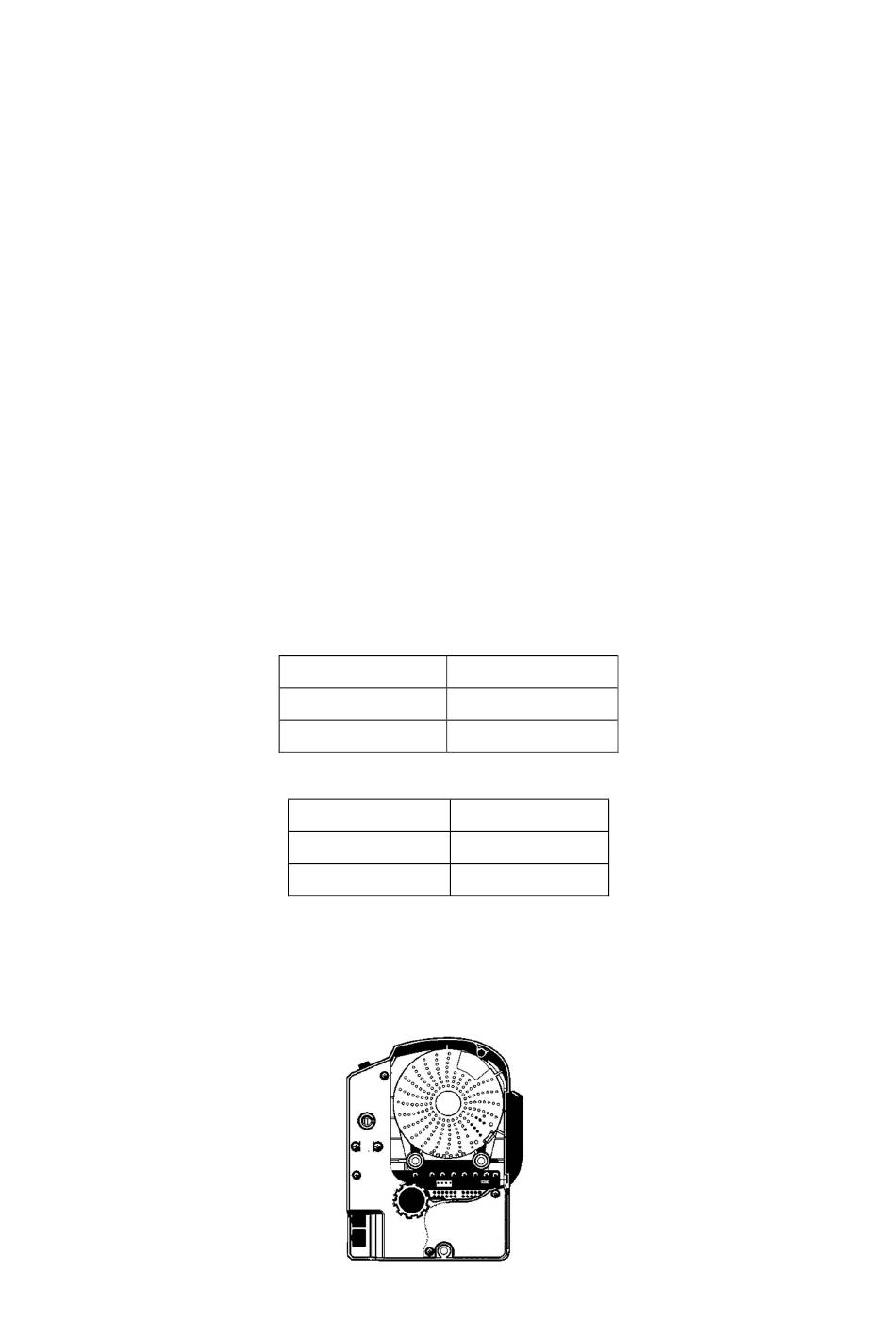

Figure 1-1 Control box diagram
1 / 8
AC 220±20% V
50Hz/60Hz
550W
AC 110±20% V
60Hz
550W
Advertisement
Related Manuals for Jack F5
Summary of Contents for Jack F5
- Page 1 F5 Control Box Manual Book SAFETY INSTRUCTION · Before using this product, please read the product manual and the mechanical manual of the matching sewing machine. · This product must be installed or operated by professionally trained personnel. · Please keep away from arc welding equipment as far as possible to avoid misoperation caused by electromagnetic wave interference with the controller.
- Page 2 ①Machine head button socket；②Pedal&update socket Figure 1-2 Definition of control box socket Note: if it cannot be inserted with normal force, please check whether the plug matches the socket and whether the insertion direction or pin direction is correct! 1.3 Grounding and wiring The grounding works of the system must be done well, and shall be constructed by qualified electrical engineers.
- Page 3 upper and lower needle stop positions are shown in Figure 3-1. Figure 3-1 upper and lower needle position display interface 4. Quickly speed setting 在 In the standby interface, short press the to set the speed. Short press the to increase the speed by 100RPM (value increases by 1), short press to decrease the speed by 100RPM (value decreases by 1), long press ) to realize rapid...
- Page 4 After entering the F interface, press to change the parameter number, press show the corresponding parameter value, and then press to change the parameter value; If the parameter value is modified, press to save, shows "oK" (as shown in Figure 6-4), and return to the current serial number display interface. If the parameter value is not modified, directly return to the current serial number display interface.
- Page 5 220V control box 0：Off 10：100VAC 11： 110VAC 12：120VAC 13：130VAC 14： 140VAC Low voltage alarm value 0、 10-15 15：150VAC 110V control box 0： Off 10： 50VAC 11： 55VAC 12： 60VAC 13： 65VAC 14： 70VAC 15：75VAC 220V control box 0 ： Off 26 ：...
- Page 6 * 100 = actual time (hour) control box Aging For manufacture test monitoring Model code 1/FF：F5； 2：20U； 3：8558G/8560G Speed Display the middle value of voltage under current pedal standby controller state, display number/10=actual voltage. Revise the parameter, the standby range...
- Page 7 function or safety switch alarm function and release the alarm; If the alarm is not released, the alarm number will be displayed until the fault is eliminated. See the error code description table for the detailed error code sheet. 10. Digital tube display description Numbers：...
- Page 8 If the above problems cannot be solved, please contact the maintenance personnel. Please check whether the motor encoder plug connection is Abnormal motor Hall reliable, whether the encoder signal wire is broken, and signal whether the pin exits or deforms. Please turn the hand wheel.
