Summary of Contents for Jack A4

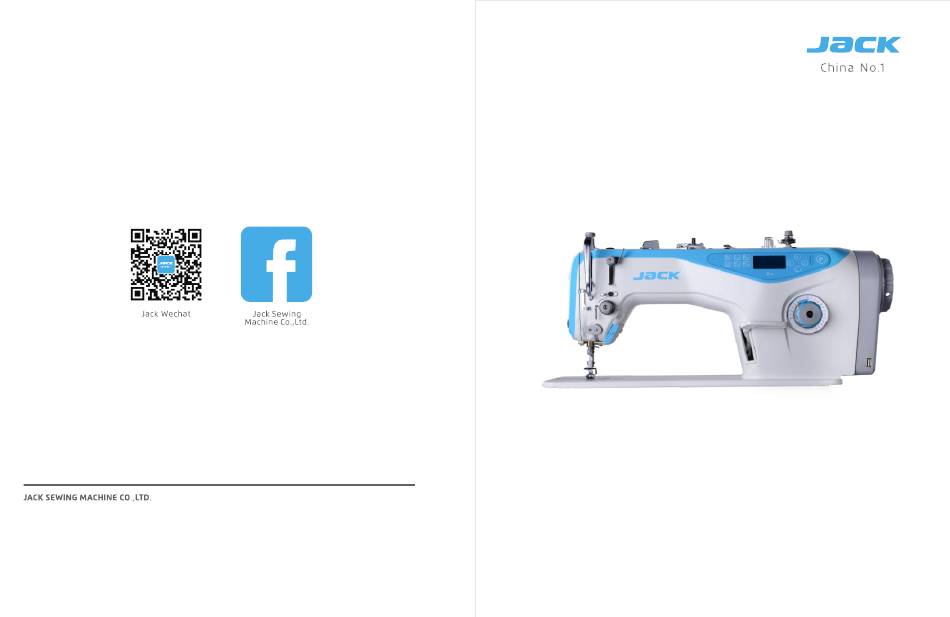

  • Page 1 Manual Book No. 15 Airport South Road, Jiaojiang District, Taizhou, Zhejiang PRC E-mail: sales@chinajack.com TEL: 0086-576-88177782 88177767 www.chinajack.com FAX: 0086-576-88177787...
  • Page 2: Table Of Contents

    Catalogue 1 .Product Introduction...............2 2.Up needle position...............8 3.Automatic presser foot lif ter set ting......13 4.Factory reset setting.............17 5.Free sewing and thread trimming setting.....18 6.W sewing settings..............19 7 .Multi-segment sewing settings........20 8.Speed adjustment..............2 3 9.Pedal adjustment..............24 10.Language setting..............26 11.Disassembly and assembly of motor encoder..27 12.P ar a meters list..............29 13.Troubl e shooting..............35...
  • Page 3: Product Introduction

    Manual Book of A4 Product Introduction Good-looking Voice Reminder Speaking Easy to use Each botton has voice reminder. Each operation has voice guide. USB Port For charging cell phone, cooling fan, also can be used to upgrade software.
  • Page 4 Manual Book of A4 Product Introduction Sensor for automatic presser foot lifter New operating panel 1. Easy to learn and to use 2. Easy to understand 3. No need to remember parameter Global invention, improve the efficiency,reduce the operate intensity.
  • Page 5 Manual Book of A4 Product Introduction Moment of force Back cover Compare with hard-wired, moment of force can be The appearance is more neat and beautiful. reduced 100%, it is more efficient. 0.4N.m 0.25N.m 0.2N.m Hard link Soft link New oil tank...
  • Page 6: Up Needle Position

    Manual Book of A4 Function Setting Up needle position setting Motor initial angle test method Press the button and hold on, then press the button Press the button and hold on, then press the button enter the monitor mode, the parameter interface displaying...
  • Page 7 Manual Book of A4 Product Introduction Initial angle value check method Version check method Check the machine version Press the button and hold on, then press the button Press the button and hold on, then press the button again, the machine version...
  • Page 8: Automatic Presser Foot Lif Ter Set Ting

    Manual Book of A4 Product Introduction Stitch adjustment method Automatic presser foot lifter settings The switch of press foot lifter after trimming: Switch of press Press , the icon display, means foot lifter that the press foot lifter after trimming is...
  • Page 9 Manual Book of A4 Product Introduction Parameter Parameter description Parameter Default range The time setting of sensors and presser foot lifter Adjust response time, sense the corresponding time after press 1~9999 foot lifter detecting a cloth Automatic presser foot sensor...
  • Page 10: Factory Reset Setting

    Manual Book of A4 Product Introduction Parameter Parameter description Parameter Default range Factory Reset Presser foot lifting electromagnet protection time 100ms Delay 0~600 time of the midway press foot lifter (ms) When the sensor is on and instant 1~9999 5000s...
  • Page 11: Free Sewing And Thread Trimming Setting

    Manual Book of A4 Product Introduction W sewing settings Free sewing and thread trimming setting D refers to sewing times Free sewing and thread trimming switch W sewing /several A/B refers to the stitch numbers segment sewing button of initial and final sewing...
  • Page 12: Multi-Segment Sewing Settings

    Manual Book of A4 Product Introduction Multi-segment sewing setting Electronic tension device setting/ presser foot lifter sensor setting W-sewing/Multi-segment sewing setting Button for thread tension / Multi-segment sewing setting: presser foot lifter sensor Press the button longer longer, and icon...
  • Page 13: Speed Adjustment

    Manual Book of A4 Product Introduction Adding stitch setting Speed adjustment Adding half stitch: When the addition stitch switch button is pushed backward, the function of adding half stitch will come true. When machine half/ full stops in sewing, pressing addition needle switch stitch button will have half stitch.
  • Page 14 Manual Book of A4 Product Introduction Pedal settings Setting of anti pull after trimming System Adjustable Parameter description Parameter range default It realizes trimming is pulled back function When sewing 200~360 thick materia 136 The initial position 137 Low speed start position...
  • Page 15: Language Setting

    Manual Book of A4 Product Introduction Language setting Mounting and dismounting of motor encoder The screw must be Downward Adjustable System Parameter description Parameter removed first range default Operation Sequence: Language selection 0/1/2 0: language off. 1: Chinese. 2: English 1.
  • Page 16 Manual Book of A4 Product Introduction Announcements of dismounting Electronic Parameter the motor grating film 1、 In the standby state, press key to enter the parameter mode. 2、 Press key and key to adjust the corresponding > > parameter. 3、 When the parameter have changed, parameter interface will flash.
  • Page 17 Manual Book of A4 Product Introduction Parameter Parameter Parameter Description Parameter Description Parameter Default Parameter Default Range Range Mode of adding stitch Feed forward torque of motor: 2000/1/2 0: continuous; 1:adding half stitch; 0: normal functions 1-3 0~31 2: adding one stitch...
  • Page 18 Manual Book of A4 Product Introduction Parameter Parameter Parameter Description Parameter Description Parameter Default Parameter Default Range Range Slow release lifter level Running delay time when presser 0~800 0~50 adjustment, the smaller values footer comes down (ms) and the faster quickly...
  • Page 19 Error Code Manual Book of A4 Error Parameter Parameter Parameter Parameter Description Solution Description Description Code The ratio between Hardware Turn off the power switch, and restart after Err-01 stitch counter motor and machine overcurrent 30 seconds. If the controller still does not...
  • Page 20 Error Code Manual Book of A4 Error Error Description Solution Description Solution Code Code - Try 2 to 3 more times after power Initial motor down Turn off the system power, restart after electrical angle Motor current Err-12 -if it still does not work, please replace 30 seconds to see if it works well.
  • Page 21 Notes Notes...
  • Page 22 Notes Notes...
