FOLD
What's In The Box
Carrying Case
Microfiber Cleaning Pouch
FOLD

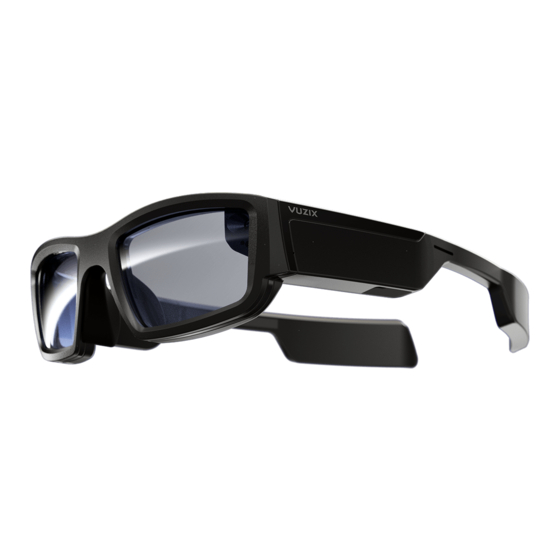

Vuzix Blade Overview
Full Color See Through Display
USB Connection
FOLD
1
Charging and Power On and Off
Your Blade is shipped with a
partial charge. It is recom-
mended that the battery be
fully charged for first time use.
Power On
press and hold the power
•
button for three seconds
Power Off
press and hold the power
•
button for three seconds
select Power Off from the
•
menu (one-finger tap on
touchpad)
FOLD
2
The touchpad allows for interaction with the Vuzix Blade.
Taps and swipes are the primary gestures.
®
Power Button
Noise Cancelling Mics
Power LED
Internal Batteries
Tap (one-finger)
• turn on display
• wake up if in sleep mode
• select an item
(app, item or feature)
• perform action
Quick Start Guide
Before getting started, please read the online Safety Instructions
at www.vuzix.com/support/legal.
Wired Headphone Dongle
3 sec.
When starting your Blade for the first time, initial
boot can take several seconds.
Micro USB Cable
HD Camera (8MP)
MicroSD Storage
Camera LED
Touchpad
Swipe (one-finger)
• navigate apps
• navigate actions
• navigate photos / videos
To USB
Power Source
(5V 1A)
