Ultimaker 2+ Repair Manual page 2

Disassembly

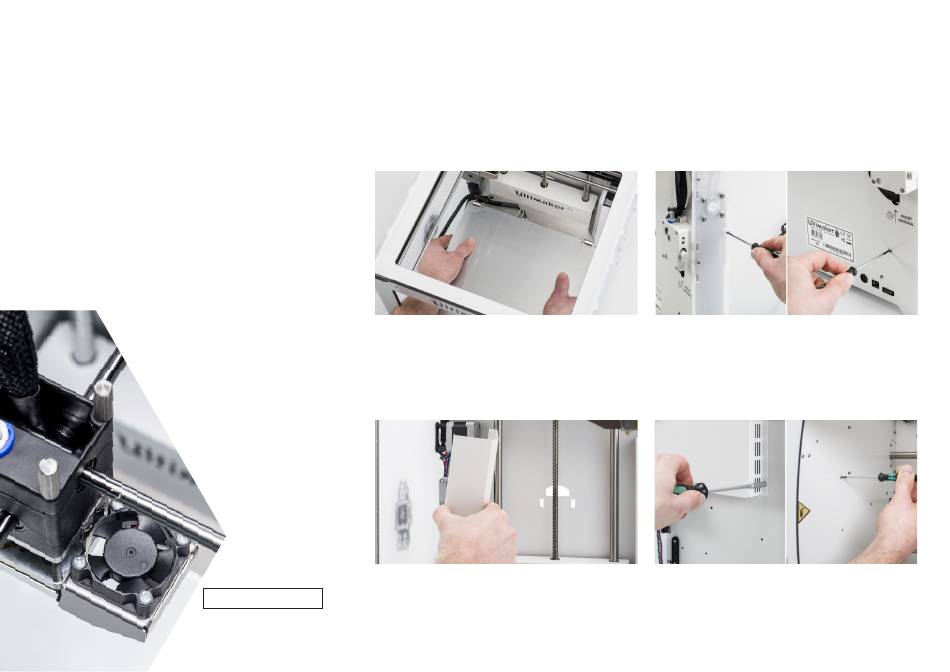

1. Place the print head in the front right corner
•
•
•
Ultimaker 2: Some older models of the Ultimaker 2 have covers that
For internal use only are only attached with a single M3x10 bolt.
Move the Z stage all the way down.
Take the motor cover out of the printer.
Manually lift the Z stage all the way up, then gently place the
Ultimaker 2 on its right side, with the bottom panel facing
towards you.
2
Page.
2. Remove the left motor cover
• Remove the two M3x10 bolts that hold the cover in place. There
is one in the middle under the motor of the left panel and one
under the feeder in the back panel.
3. Remove the Ultimainboard cover.
• Loosen the two M3x12 bolts that hold the Ultimainboard cover
from the inside of the printer, while holding the lock nuts in place
with pliers or a socket wrench.
Ultimaker 2Go: The motor covers of the Ultimaker 2Go are plastic and
simply click in and out of the printer. They are not attached with bolts.
To remove the left motor cover on the Ultimaker 2Go, grab the top of
the cover and pull forwards and to the left. This will dislodge the tabs
of the cover from the notches in the frame.
