Meter Description

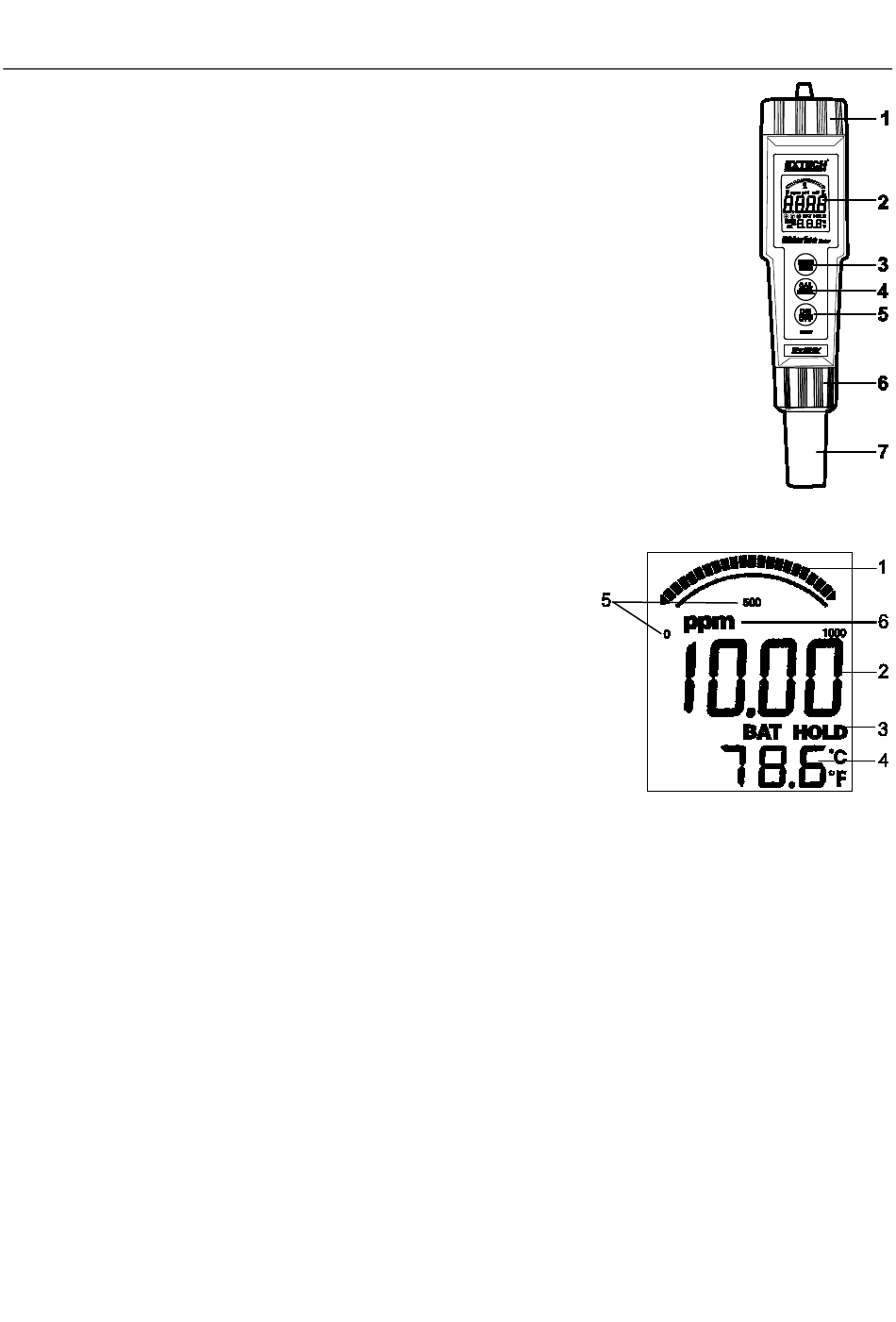

Front Panel Description
ExStik button operations depend on the attached electrode (pH, ORP or chlorine).
Button descriptions, below, apply to a chlorine electrode.
1. Battery compartment
2. LCD
3. MODE/HOLD button (also used to store data)
4. CAL/RECALL button (calibrate, change temperature units, recall stored
readings); calibration is required for chlorine electrodes.
5. Power button
6. Electrode collar
7. Electrode
(Note: The Electrode cap is not shown)
Display
1. Bar graph display
2. Measurement display
3. BAT (low battery) and HOLD (data hold) indicators
4. Temperature display
5. Bar graph scale
6. Unit of measure
3
CL200A_en-US_V9.1 8/24
