- Page 1 O P E R A T I N G I N S T R U C T I O N WI180C-PNS01 WI180C-PNS01 PROFINET coupler...
- Page 2 This document is an original document of SICK AG. 2006/42/EC SAFETY O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 8022756.1GL8/2024/01/26 | SICK Subject to change without notice...
-
Page 3: Table Of Contents
Cyclic communication via PROFINET IO..........IO Data....................... Acyclic communication via PROFINET IO..........Record data....................8022756.1GL8/2024/01/26 | SICK O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 Subject to change without notice... - Page 4 10.3 Ordering information, accessories............Annex....................25 11.1 Conformities and certificates..............O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 8022756.1GL8/2024/01/26 | SICK Subject to change without notice...
-
Page 5: About This Document
Highlights useful tips and recommendations as well as information for efficient and trouble-free operation. 8022756.1GL8/2024/01/26 | SICK O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 Subject to change without notice... - Page 6 Follow the order in which the numbered instructions are given. ✓ The tick denotes the results of an action. O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 8022756.1GL8/2024/01/26 | SICK Subject to change without notice...
-
Page 7: Safety Information
PROFINET coupler. 8022756.1GL8/2024/01/26 | SICK O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 Subject to change without notice... -
Page 8: Product Description

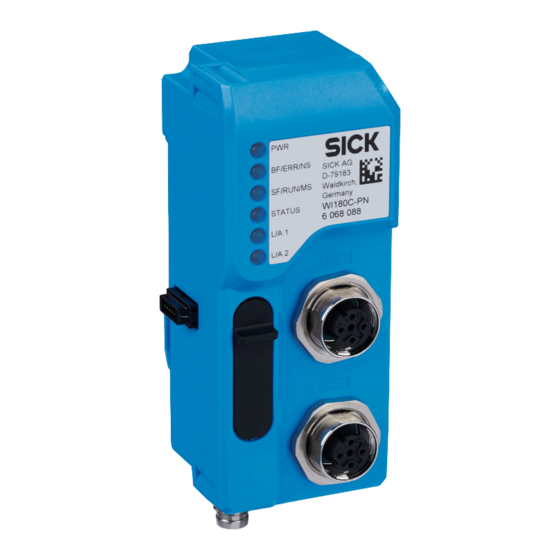

Further specifications can be found in the technical data (see "Technical data", page 22). O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 8022756.1GL8/2024/01/26 | SICK Subject to change without notice... -
Page 9: Setup And Function
Pin assignment +12 – 24 VDC Not assigned Not assigned 8022756.1GL8/2024/01/26 | SICK O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 Subject to change without notice... -
Page 10: Grounding
Grounding The device is grounded via the mounting rail by means of a spring contact: O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 8022756.1GL8/2024/01/26 | SICK Subject to change without notice... -
Page 11: Transport And Storage
Make sure that the storage location complies with the permitted environmental conditions (see "Technical data", page 22). 8022756.1GL8/2024/01/26 | SICK O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 Subject to change without notice... -
Page 12: Mounting
Clamp the series-connected devices onto the mounting rail as shown in their mounting instructions. O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 8022756.1GL8/2024/01/26 | SICK Subject to change without notice... -
Page 13: Connecting The Device
Connect the female M8 connector on the power supply to the underside of the device and screw the male connector tight. 8022756.1GL8/2024/01/26 | SICK O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 Subject to change without notice... -
Page 14: Commissioning
Wait approximately two seconds until the device indicates that it is ready, see "LED status indicators", page O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 8022756.1GL8/2024/01/26 | SICK Subject to change without notice... -
Page 15: Operation
No network connection on port 2 green Network connected on port 2 8022756.1GL8/2024/01/26 | SICK O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 Subject to change without notice... -
Page 16: Device Slots And Modules
#2 … #16 • No extra power supply to WLL80 device required O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 8022756.1GL8/2024/01/26 | SICK Subject to change without notice... -
Page 17: Cyclic Communication Via Profinet Io
Module 3 is fixed in slot 1. IO Data The device supports the following IO data: 8022756.1GL8/2024/01/26 | SICK O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 Subject to change without notice... -
Page 18: Acyclic Communication Via Profinet Io
Get last error code / Delete last (any write value) O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 8022756.1GL8/2024/01/26 | SICK Subject to change without notice... - Page 19 Function Details Access Length Description (bytes) Factory Reset 3: Execute 8022756.1GL8/2024/01/26 | SICK O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 Subject to change without notice...
-
Page 20: Diagnosis
Number of modules in WI180 system changed WI180 system internal communication error O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 8022756.1GL8/2024/01/26 | SICK Subject to change without notice... -
Page 21: Decommissioning
Take the regulations in your country into account also. 8022756.1GL8/2024/01/26 | SICK O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 Subject to change without notice... -
Page 22: Technical Data
2000 ms system) LEDs PWR, BF/ERR/NS, SF/RUN/MS, STATUS, L/A1, L/A2 O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 8022756.1GL8/2024/01/26 | SICK Subject to change without notice... - Page 23 IP54 Sensitivity to vibrations IEC 60068, 10 – 55 Hz 8022756.1GL8/2024/01/26 | SICK O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 Subject to change without notice...
-
Page 24: Ordering Information, Accessories
D-coded, 2 m cable BEF-EB01-W190 Rail end piece for block mounting 5313011 O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 8022756.1GL8/2024/01/26 | SICK Subject to change without notice... -
Page 25: Annex
(part number: see the entry in the “P/N” or “Ident. no.” field on the type label). 8022756.1GL8/2024/01/26 | SICK O P E R A T I N G I N S T R U C T I O N | WI180C-PNS01 Subject to change without notice... - Page 26 E-Mail mail@sick-sk.sk Hungary Slovenia Phone +36 1 371 2680 Phone +386 591 788 49 E-Mail office@sick.hu E-Mail office@sick.si India South Africa Phone +91 22 6119 8900 Phone +27 11 472 3733 E-Mail info@sick-india.com E-Mail info@sickautomation.co.za Further locations at www.sick.com SICK AG | Waldkirch | Germany | www.sick.com...
